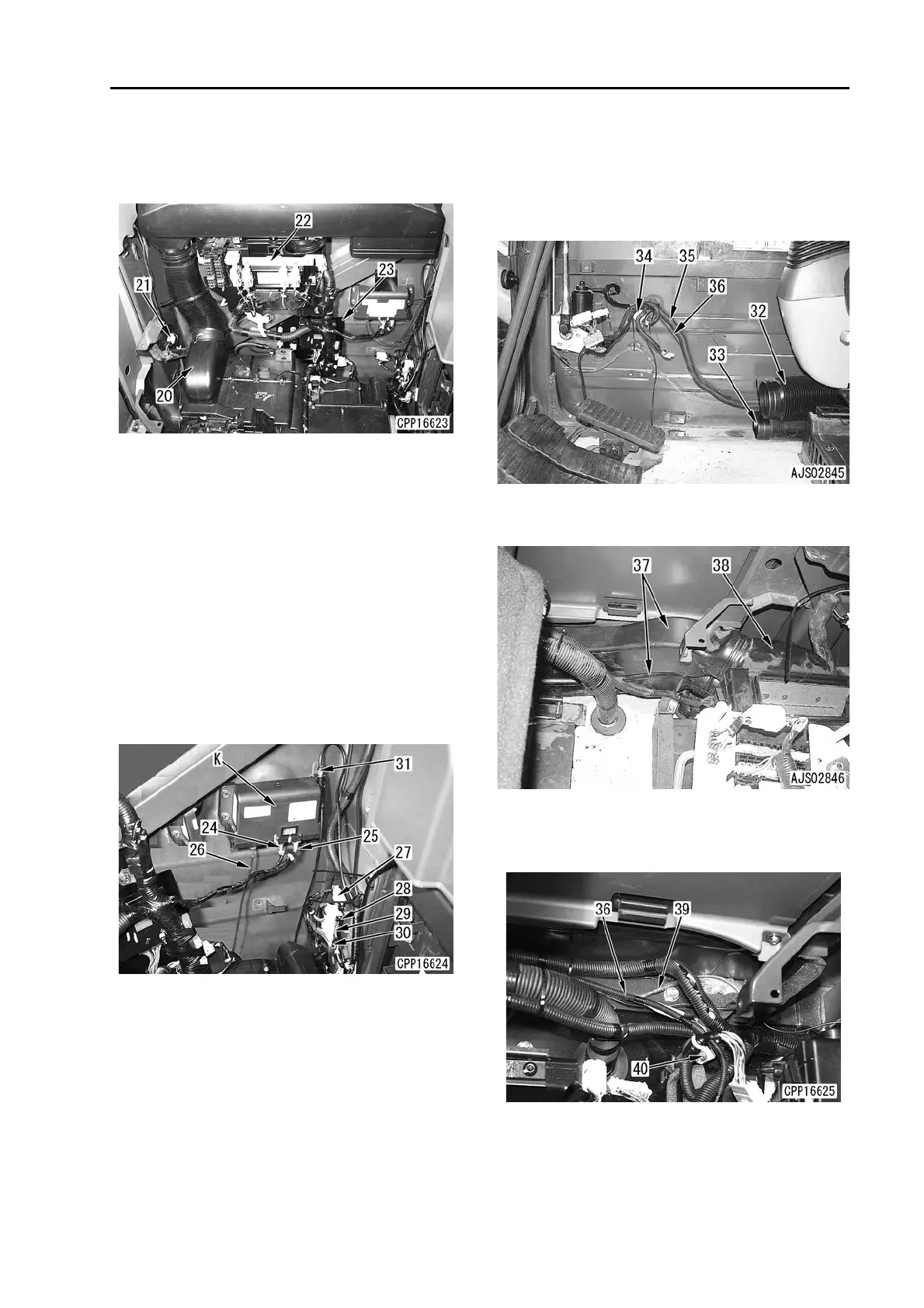

15. Remove duct (20).
16. Disconnect connector L03 (21).
17. Remove plates (22) and (23) from the operator
ca
b.
18. Disconnect connectors CK01(24) and CK02
(2
5) from KOMATRAX communication modem.
19. Pass over and disconnect antenna (26) from
KOMTRAX co
mmunication modem.
a If con
nectors CK01 and CK02 are not dis-
connected first, an error is recorded in
KOMTRAX.
20. Disconnect connector M10(27) from the opera-
tor's cab. (If equipped)
21. Disconnect cab wiring intermediate connectors
H0
9(28), H08(29), and H16(30).
a Cu
t tie-wrap.
22. Disconnect radio antenna (31).
a (2
3) is removed plate.
23. Remove ducts (32) and (33).
a Cut tie-wrap.
24. Disconnect wiper motor connector M05 (34).
25. Remove harness (35) and antenna (36) from
the cab wall.
a Cu
t 2 points of tie-wrap.
26. Remove duct (37).
27. Remove duct (38) upper and lower.
28. Disconnect window washer hose (39).
29. Disconnect harness clamp (40).
30. Haul in antenna (36).
