SEN04132-01 50 Disassembly and assembly
4 PC130-8

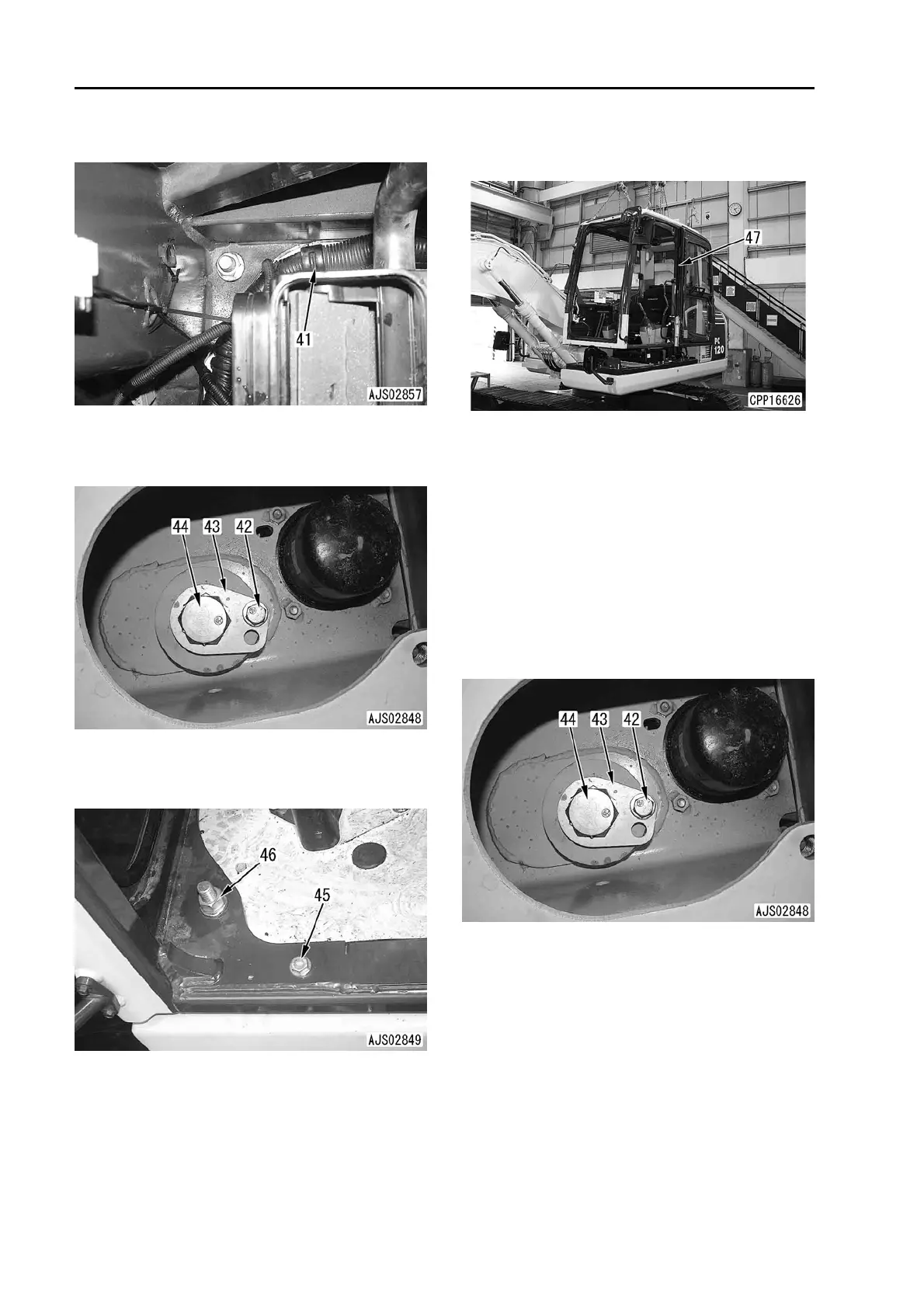

31. Detach harness clamp (41) from the right back
side of cab.
32. Remove bolt (42) under the cab and remove
lock p
late (43). [*1]
33. Remove bolt (44). [*2]
34. Dismount 6 mounting bolts (45) and 4 mount-
ing nuts (46).
a Che
ck the bolt length beforehand.
35. Lift off and remove operator's cab assembly
(
47).
4 Operator's cab assembly: 470 kg
Installation
q Installation is done in the reverse order of
removal.
[*1]
3 Mounting bolt of lock plate (43):
98 – 123 Nm {10 – 12.5 kgm}
[*2]
3 Bolt (44):
245 – 309 Nm {25 – 31.5 kgm}
