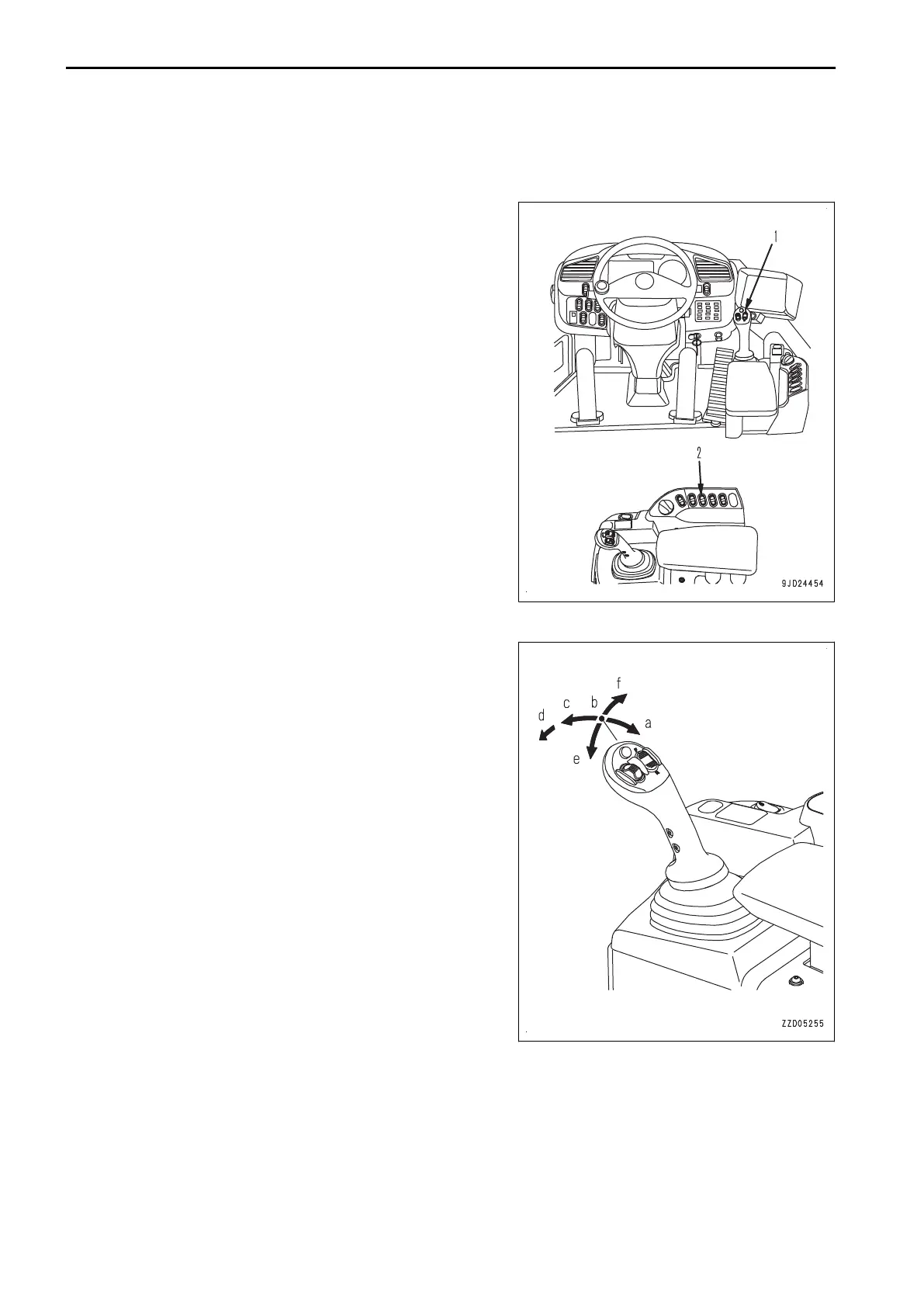

HANDLE FORK
EXPLANA
TION OF COMPONENTS ON MACHINES WITH FORK
(1) Multifunction mono-lever
(2) Attachment selector switch
MUL
TIFUNCTION MONO-LEVER
The
multifunction
mono-lever
is
used
to
operate
the
boom
and
fork.
NOTICE
Do not use “FLOA
T” position when lowering the fork.
HANDLE FORK
A
TT
ACHMENTS AND OPTIONS
6-24
423
425
