Konica Minolta bizhub 284e User Manual

About this machine
2
2-12 bizhub 554e/454e/364e/284e/224e
2.2
About This Machine Chapter 2
2.2.3 Name of parts (MFP) (bizhub 554e/454e)
Front side

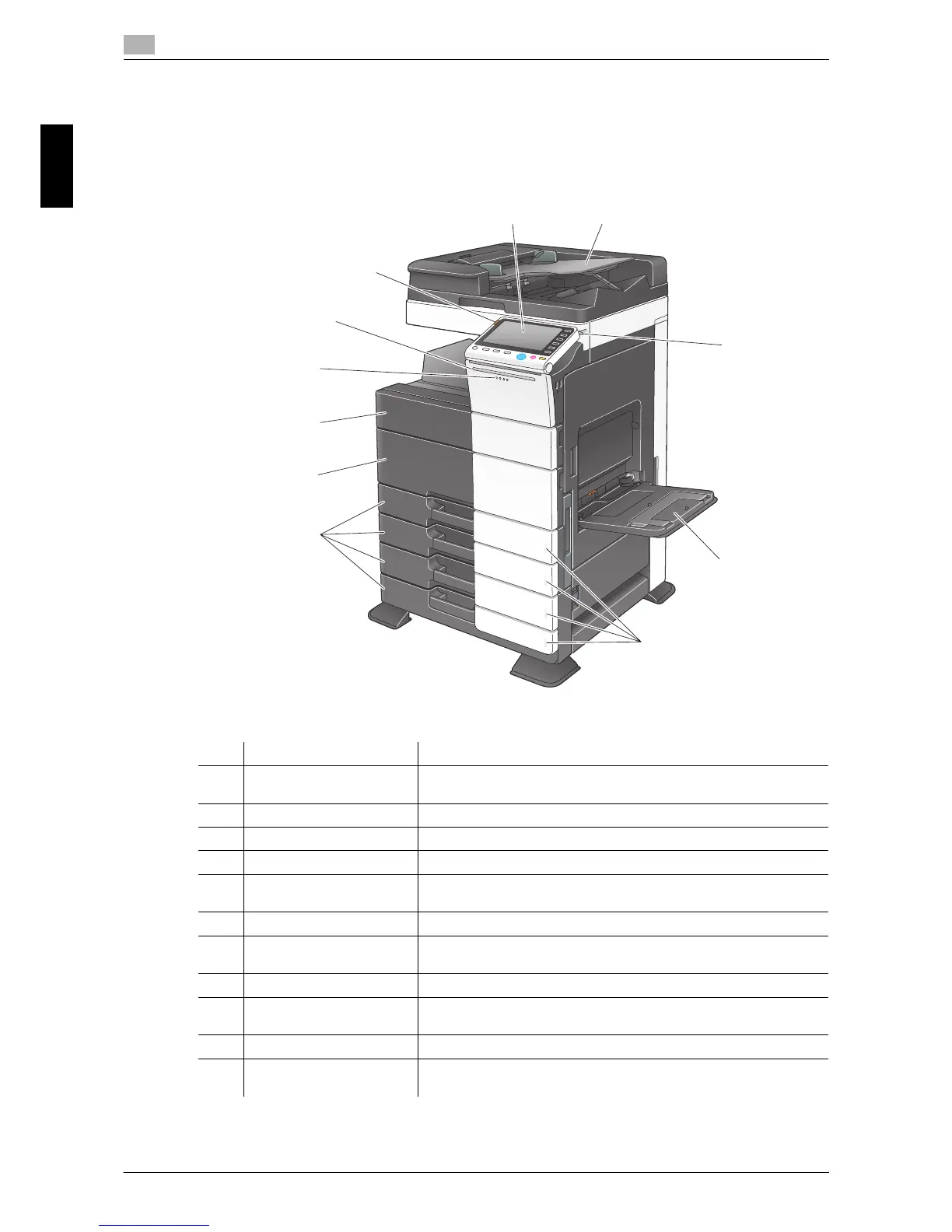

The illustration shows the main unit that contains the Output Tray and Paper Feed Cabinet.
No. Name Description
1 Control Panel Use the Touch Panel or buttons on this panel to operate this ma-
chine.
2 Original Tray Load the original.
3 Stylus Pen Used to operate the Touch Panel.
4 Bypass Tray Used to load custom-size paper or special paper.
5 Paper-Empty Indicator Flashes orange when a tray runs low on paper and lights up orange
when the tray runs out of paper.
6 Paper Tray Used to load standard-size paper.
7 Lower Front Door Open this door to replace consumables or to maintenance this ma-
chine.
8 Upper Front Door Open this door to replace a Toner Cartridge.
9 Data Indicator Flashes blue while this machine is receiving a job. If a job is current-
ly spooled, this indicator lamp lights up blue.
10 Status Indicator Flashes white during printing.
11 Warning Indicator Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
11
12
3
4
10
9
6
7
8
5

Konica Minolta bizhub 284e Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Maximum Paper Capacity	3, 650 sheets
Max Paper Size	A3
Duplex Printing	Yes
Memory	2 GB
Hard Drive	250 GB
Operating System Compatibility	Windows, Mac, Linux
Print Speed	28 ppm
Copy Speed	28 cpm
Connectivity	USB, Ethernet
