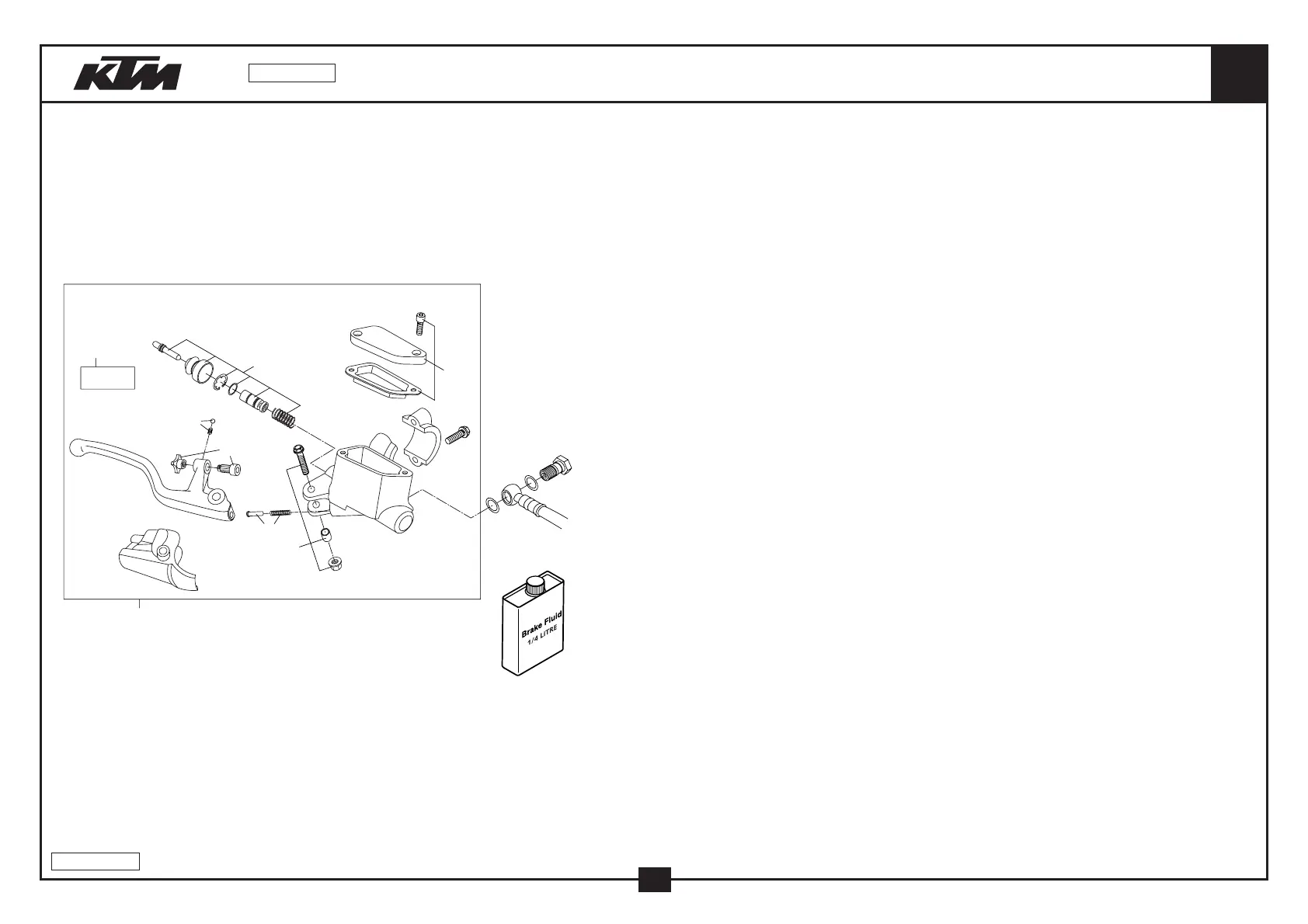

HANDBREMSZYLINDER

HAND BRAKE CYLINDER 105

#1, #2

04-461.13.0

FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY

1 470.13.001.000 HANDBREMSZYLINDER KPL.85 SX 03 HAND BRAKE CYL. CPL. 85 SX 03 1

2 470.13.002.000 BREMSHEBEL LOSE 85 SX 2003 BRAKE LEVER LOOSE 85 SX 2003 1

3 470.13.003.000 ZYLINDERDECKEL KPL. VORNE 2003 CYLINDER COVER CPL. FRONT 2003 1

4 470.13.004.000 SCHUTZKAPPE 85 SX 2003 PROTECTION COVER 85 SX 2003 1

5 470.13.005.000 SCHELLE FÜR BREMSZYLINDER 2003 CLAMP FOR BRAKE CYLINDER 2003 1

6 470.13.006.000 SCHRAUBE+BÜCHSE+MUTTER 03 SCREW+BUSHING+NUT 03 1

7 470.13.007.000 EINSTELLSCHRAUBE KPL. 85 SX 03 ADJUSTING SCREW CPL. 85 SX 03 1

8 470.13.008.000 REP.SATZ KOLBEN VORNE 85 SX 03 REP.SET PISTON FRONT 85 SX 03 1

9 470.13.009.000 KUGEL+FEDERN+FEDERFÜHRUNG 03 BALL+SPRING+SPRING GUIDE 03 1

10 470.13.010.000 BREMSSCHLAUCH VORNE 85 SX 03 BRAKE HOSE FRONT 85 SX 03 1

13 0770 080019 O-RING 8,00X1,00 EPDM O-RING 8,00X1,00 EPDM 2

16 565.09.064.100 STOVER-FLANSCHMUTTER M6 10.9 SELF LOCKING NUT M6 10.9 1

20 0015 060203 SK.BUNDSCHRAUBE M 6X20 SW=8 HH COLLAR SCREW M 6X20 WS=8 2

22 0015 060303 SK.BUNDSCHRAUBE M 6X30 SW=8 HH COLLAR SCREW M 6X30 WS=8 1

25 470.13.025.000 HOHLSCHRAUBE BREMSZYLINDER 03 HOLLOW SCREW BRAKE CYLINDER 03 1

80 306054 BREMSFLÜSSIGKEIT DOT 5.1 BRAKE FLUID DOT 5.1 1

* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED

04-475.13.0

2004
