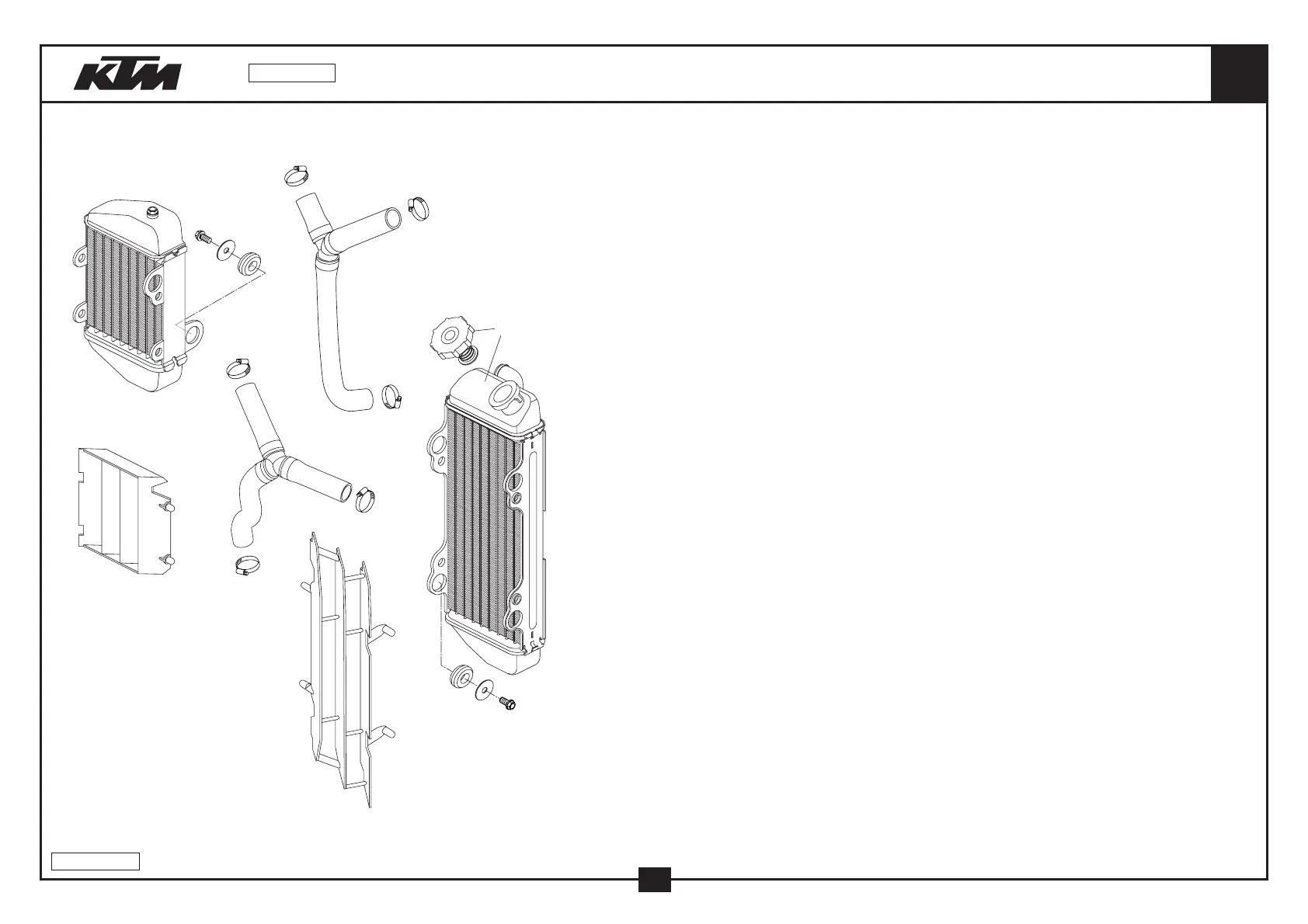

KÜHLSYSTEM

COOLING SYSTEM 105

03-470.35.0

FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY

7 470.35.007.000 KÜHLER LINKS 85 SX 2003 RADIATOR L/S 85 SX 2003 1

8 470.35.008.000 KÜHLER RECHTS 85 SX 2003 RADIATOR R/S 85 SX 2003 1

9 590.35.009.000 KÜHLERVERSCHLUSS 1,4 BAR 2003 RADIAT.CAP 20,3PSI (1,4BAR) 03 1

20 100.01.020.000 SCHLAUCHKLEMME GEMI 16-27 HOSE CLAMP GEMI 16-27 6

24 470.35.024.000 KÜHLERSCHLAUCH OBEN 85 SX 2003 RADIATOR HOSE TOP 85 SX 2003 1

25 470.35.025.000 KÜHLERSCHLAUCH UNTEN 85 SX 03 RADIATOR HOSE BOTTOM 85 SX 03 1

34 546.35.034.200 KÜHLERSCHUTZ LINKS FARBLOS '95 RADIATOR PROTECT.L/S COUL. '95 1

35 470.35.035.000 KÜHLERSCHUTZ RECHTS 85 SX 2003 RADIATOR PROTECT. R/S 85 SX 03 1

43 0021 060003 SCHEIBE DIN 9021 A 6,4 WASHER DIN9021-A 6,4 5

45 0015 060123 SK.BUNDSCHRAUBE M 6X12 SW=8 HH COLLAR SCREW M 6X12 WS=8 5

52 410.01.052.000 KABELTÜLLE D=12MM RUBBER SLEEVE D=12MM 7

* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
