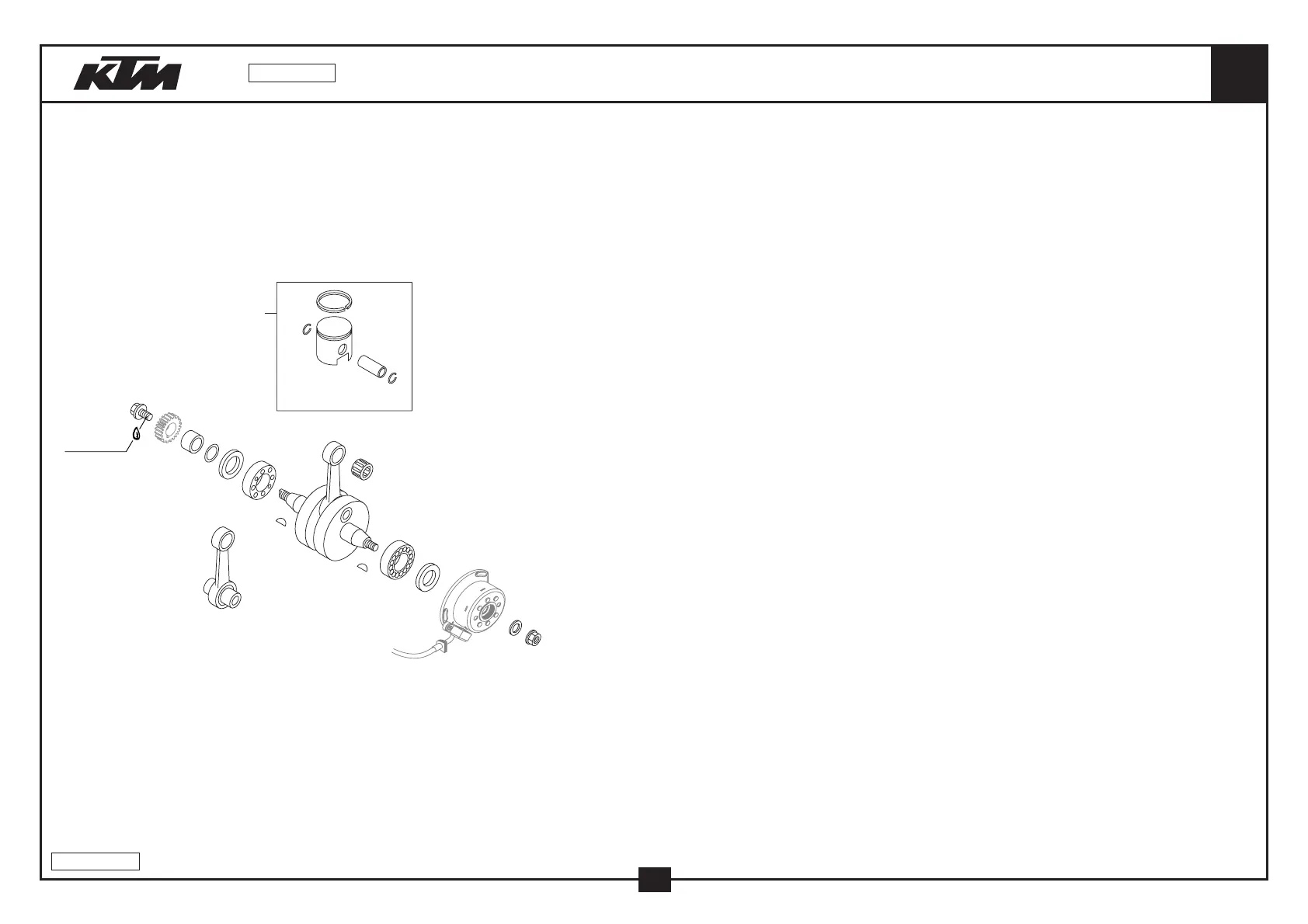

KURBELWELLE, KOLBEN

CRANKSHAFT, PISTON 105

LOCTITE 243

03-470.30.2

FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY

7 475.30.007.000/ I KOLBEN I KPL. 105 SX 52MM 04 PISTON I CPL. 105 SX 52MM 04 1

7 475.30.007.000/ II KOLBEN II KPL. 105 SX 52MM 04 PISTON II CPL. 105 SX 52MM 04 1

15 470.30.015.000 PLEUELREP.SATZ 85 SX 2003 CON. ROD. REP. KIT 85 SX 2003 1

16 470.30.016.000 DISTANZHÜLSE 85 SX 2003 SPACER SLEEVE 85 SX 2003 1

17 0770 020180 O-RING 18,77X1,78 NBR 70 O-RING 18,77X1,78 NBR 70 1

18 470.30.018.000 KURBELWELLE KPL. 85 SX 2003 CRANKSHAFT CPL. 85 SX 2003 1

27 502.30.029.012 SPERRKANTRING VSK 12 LOCKING RING VSK 12 1

28 490.30.021.000 BUNDMUTTER M12X1 RECHTS COLLAR NUT M12X1 R/S 1

29 470.32.019.000 SK-SCHRAUBE M.BUND M10X1,25X20 HH SCREW W. COLLAR M10X1,25X20 1

30 475.30.030.000 KOLBENRING 105 SX 2004 PISTON RING 105 SX 2004 1

32 470.30.074.000 DRAHTSPRENGRING 85 SX 2003 WIRE LOCK RING 85 SX 2003 2

33 475.30.033.000 KOLBENBOLZEN 105 SX 2004 PISTON BOLT 105 SX 2004 1

34 470.30.034.000 NADELLAGER KBK 14X18X17 2003 NEEDLE BEARING KBK 14X18X17 03 1

74 0888 040050 SCHEIBENFEDER DIN6888-4X5X13 WOODRUFF KEY DIN6888 4X5X13 1

75 0888 030050 SCHEIBENFEDER DIN6888-3X5X13 WOODRUFF KEY DIN6888-3X5X13 1

76 470.30.076.100 WELLENDICHTRING 20X35X6 BTSL SEAL SHAFT RING 20X35X6 BTSL 1

77 0760 304260 WELLENDICHTRING 30X42X6 SHAFT SEAL RING 30X42X6 1

82 470.30.082.000 ZYL.ROLLENLAGER NJ 205ET2XCS42 CYL.ROLLER BEAR. NJ205ET2XCS42 1

83 470.30.083.000 RILLENKUGELLAGER 22X52X15 BALL BEARING 22X52X15 1

* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED

04-475.30.2

2004
