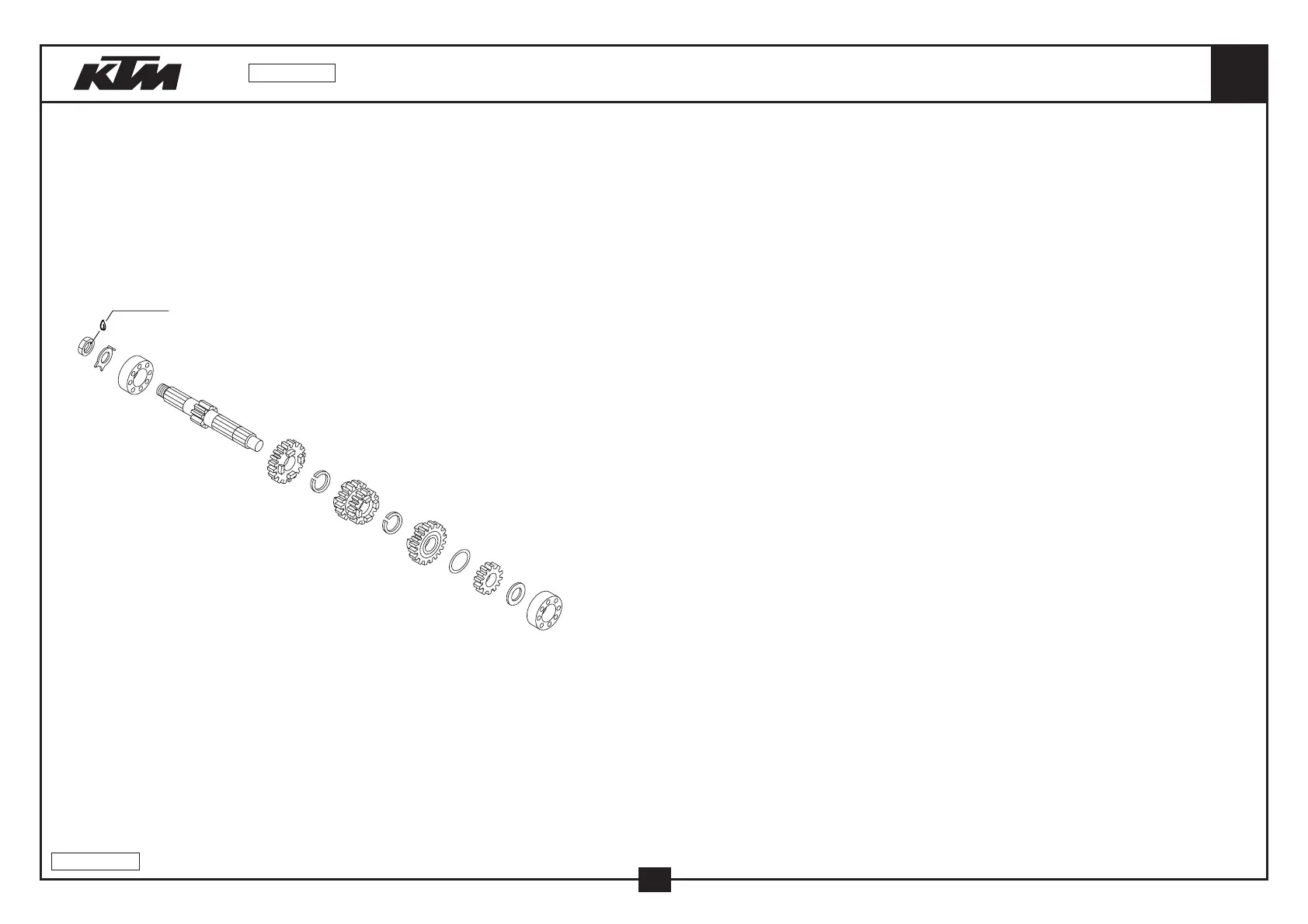

GETRIEBE I - ANTRIEBSWELLE

TRANSMISSION I - MAIN SHAFT 105

LOCTITE 243

03-470.33.1

FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY

1 470.33.001.000 ANTRIEBSWELLE 11-Z 85 SX 2003 MAIN SHAFT 11-T 85 SX 2003 1

7 470.33.007.000 LOSRAD 5.G. 21-Z 03 IDLER GEAR 5TH G. 21-T 03 1

8 470.33.008.000 SCHIEBERAD 3./4.G. 16/19-Z 03 SLID. GEAR 3RD/4TH G. 16/19-T 1

9 470.33.009.000 LOSRAD 6.G. 20-Z 03 IDLER GEAR 6TH G. 20-T 03 1

10 470.33.010.000 FESTRAD 2.G. 14-Z 03 SOLID GEAR 2ND G. 14-T 03 1

25 460.33.028.000 RILLENKUGELLAGER 20X42X12 GROOVED BALL BEARING 20X42X12 1

26 470.33.026.000 RILLENKUGELLAGER 16X35X8 BALL BEARING 16X35X8 1

35 460.30.029.000 SK.MUTTER 14X1,25X7 SW=22 HH NUT 14X1,25X7 WS=22 1

40 470.33.041.000 ANLAUFSCHEIBE 16X26X1 STOP DISC 16X26X1 1

41 470.33.096.000 AXIALSICHERUNG 19 SW AXIAL CIRCLIP 19 SW 2

42 470.33.042.000 ANLAUFSCHEIBE 20,3X26X0,4 STOP DISC 20,3X26X0,4 1

78 460.30.078.000 SICHERUNGSBLECH D=14MM LOCKING PLATE D=14MM 1

* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED

03-470.33.1

2004
