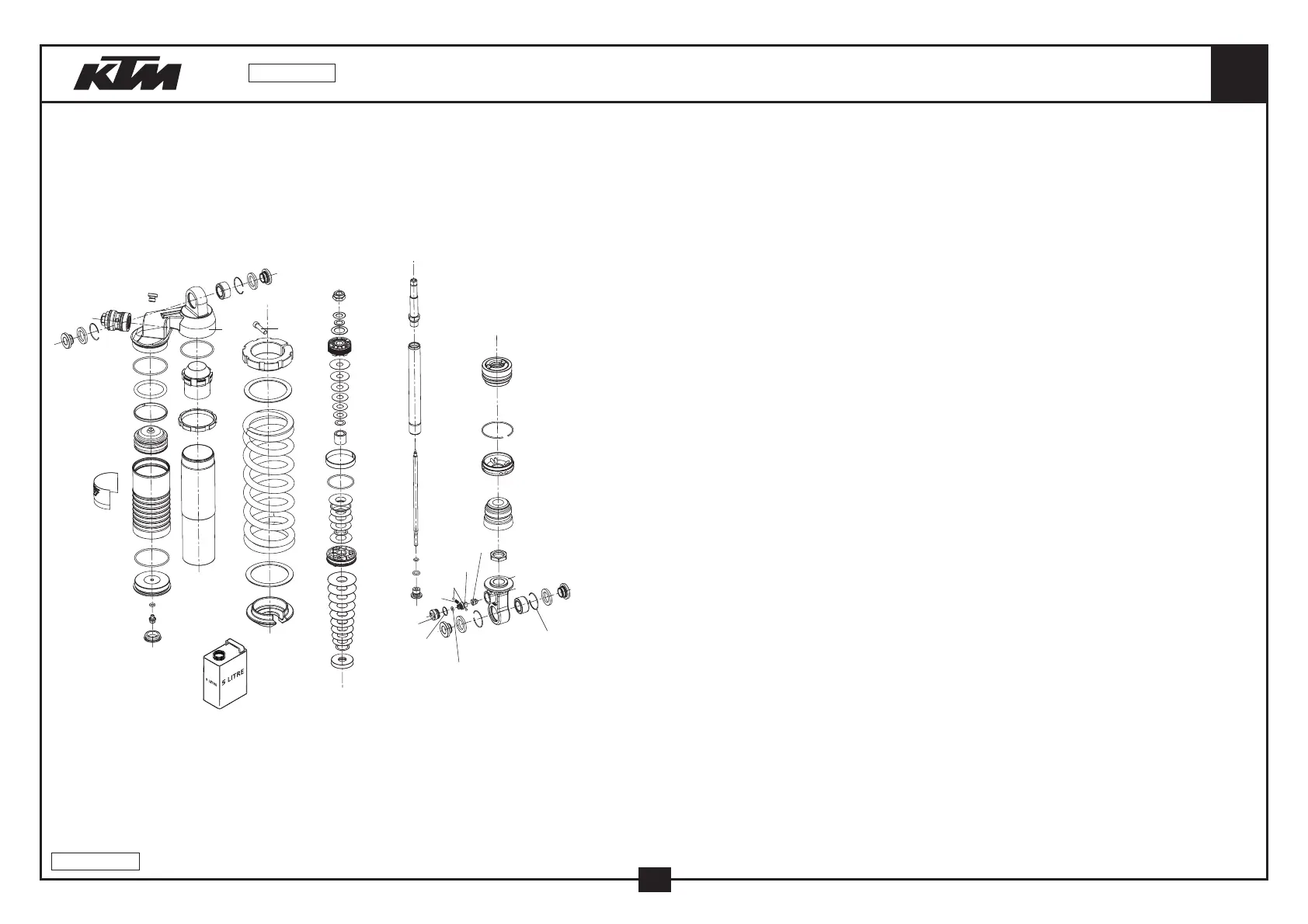

FEDERBEIN WP ZERLEGT

SHOCK ABSORBER WP DISASSEMBLED 105

04-470.04.1

FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY

1 4618.0348 FEDERBEINGEH. OBEN H40 135GR. SHOCK ABSORBER TOP H40 135DEG. 1

2 5018.0213S4 DCC-DRUCKSTUFENREGUL. KPL. 03 DCC-COMPR.DAMP.CONTROL CPL. 03 1

3 4618.0007 DISTANZBÜCHSE KGW 12X24 ADAPTOR BUSH KGW 12X24 4

4 4618.0003 DICHTRING KGW D=25 OIL SEAL KGW D=25 4

5 5018.0168 SCHEIBE KGW D=25 WASHER KGW D=25 4

6 5018.0005 LAGER KGW 1525 HD BUSHING KGW 1525 HD 2

8 5018.0095 ENTLÜFTUNGSSCHRAUBE R 1/8 BLEED PLUG R 1/8 1

11 4618.0017 O-RING NBR 50X2 O-RING NBR 50X2 2

12 5200.0014 AUFKLEBER WP 35X55 STICKER WP 35X55 1

13 4618.0319 RESERVOIRSCHRAUBE L=113,5 D=52 RESERVOIR SCREW L=113,5 D=52 1

14 4618.0014 O-RING VITON 41X5 O-RING VITON 41X5 1

15 4618.0002 TRENNKOLBEN D=52; H=32 SEPARATION PISTON D=52; H=32 1

16 4618.0015 KOLBENRING 3,9X1,5X156 PISTON RING 3,9X1,5X156 1

18 5018.0344 RESERVOIRKAPPE D=58 RESERVOIR CAP D=58 1

19 4681.0893 O-RING NBR 5,28X1,78 O-RING NBR 5,28X1,78 1

20 3612.0151 VERSCHLUSSCHRAUBE M5X6 SCREW PLUG M5X6 1

21 4681.1208 GUMMIKAPPE „NICHT ÖFFNEN“ RUBBER CAP „DO NOT OPEN“ 1

25 4681.0016 O-RING NBR 48X2 O-RING NBR 48X2 1

27 4618.0340 HÜLSE D=48 SLEEVE D=48 1

29 4618.0352 SICHERUNGSSCHEIBE M52X1,5 LOCK WASHER M52X1,5 1

30 4618.0345 ROHR M52X1,5 TUBE M52X1,5 1

35 4618.0353 EINSTELLRING M52X1,5 SPRING RETAINER M52X1,5 1

36 4618.0354 ISK.SCHRAUBE M5X25 AH SCREW M5X25 1

40 9101.0240 FEDER (59) 215 35 N/MM D=9,25 SPRING (59) 215 35 N/MM D=9,25 X

40 9101.0161 FEDER (59) 215 40 N/MM D=9,5 SPRING (59) 215 40 N/MM D=9,5 1

40 9101.0201 FEDER (59) 215 45 N/MM D=10 SPRING (59) 215 45 N/MM D=10 X

43 4618.0349 FEDERRING H=15 D=28 SPRING WASHER H=15 D=28 1

45 4618.0356 KOLBENSTANGENMUTTER M10X1 PISTON ROD NUT M10X1 1

46 4681.0035 O-RING VITON 37,82X1,78 O-RING VITON 37,82X1,78 1

47 4681.1206 KOLBENRING 8X46 PISTON RING 8X46 1

48 3612.0349 SCHEIBE 10X19X0,30 SHIM 10X19X0,30 1

48 5018.0032 SCHEIBE 16X25X0,25 SHIM 15X25X0,25 1

48 5018.0395 RING 10X16X1 RING 10X16X1 1

49 1446.0016 KOLBEN + KOLBENFEDER PISTON + PISTON SPRING 1

50 3612.0312 SCHEIBE 10X16X0,30 SHIM 10X16X0,30 1

50 3612.0334 SCHEIBE 10X21X0,20 SHIM 10X21X0,20 1

50 3612.0335 SCHEIBE 10X23X0,20 SHIM 10X23X0,20 1

50 3612.0336 SCHEIBE 10X25X0,20 SHIM 10X25X0,20 1

50 3612.0337 SCHEIBE 10X27X0,20 SHIM 10X27X0,20 3

50 3612.0338 SCHEIBE 10X29X0,20 SHIM 10X29X0,20 1

50 3612.0339 SCHEIBE 10X31X0,20 SHIM 10X31X0,20 1

51 4618.0339 VERBUNDBUCHSE 17X12X18 SEPARATION BUSH 17X12X18 1

54 4681.0505 SCHEIBE 12X36X0,25 SHIM 12X36X0,25 2

54 4681.0519 SCHEIBE 12X28X0,15 SHIM 12X28X0,15 1

* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
