KTM 150 SX 2017 - Carburetor Tuning (All 150 Models)

To Next Page

To Previous Page

21 TECHNICAL DATA 115

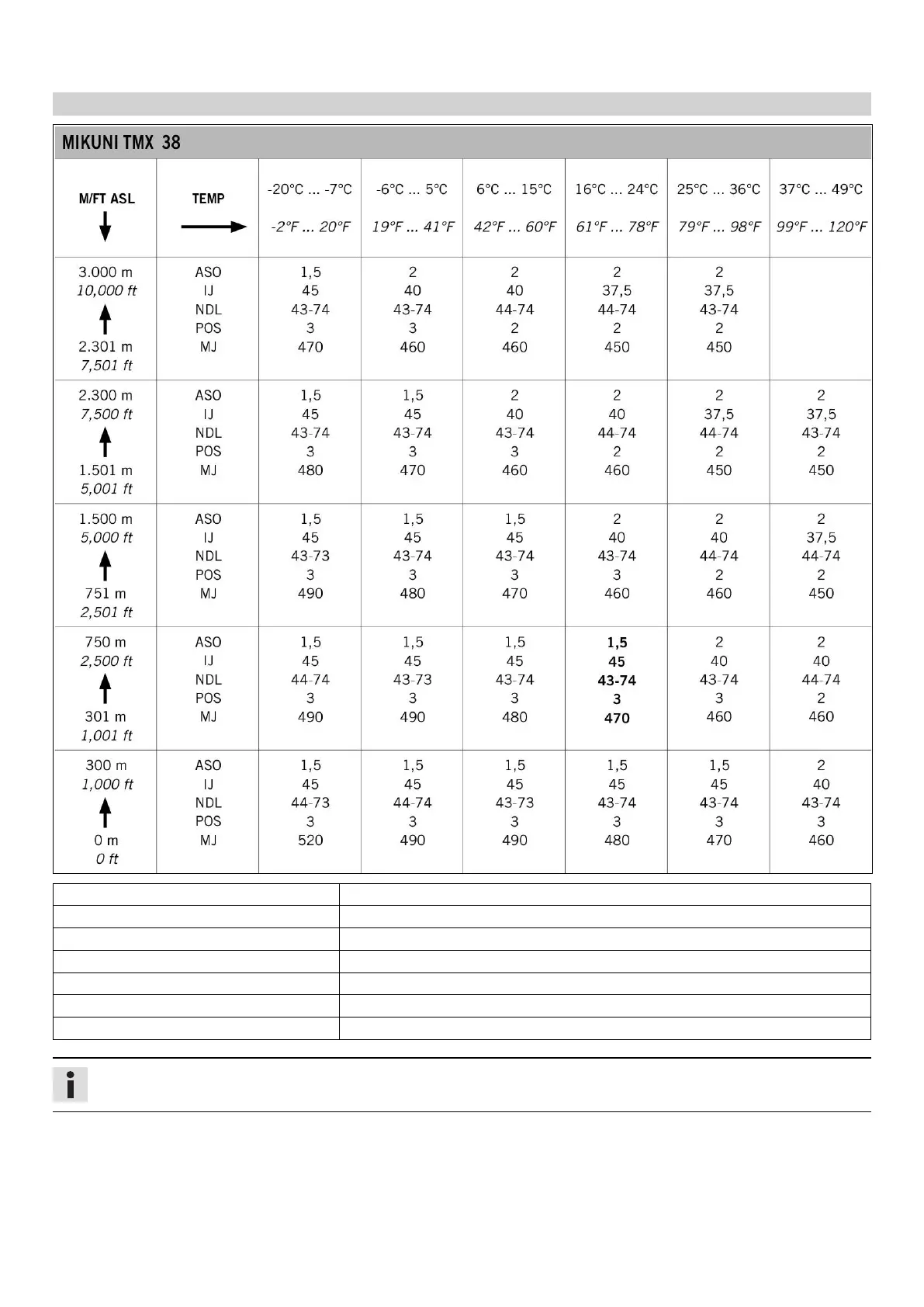

21.3.6 Carburetor tuning (All 150 models)

402670-01

M/FT ASL Sea level

TEMP Temperature

ASO Idle air adjusting screw open

IJ Idling jet

NDL Needle

POS Needle position from top

MJ Main jet

Info

Do not use on sandy terrain.
