11 SERVICE WORK ON THE CHASSIS 50

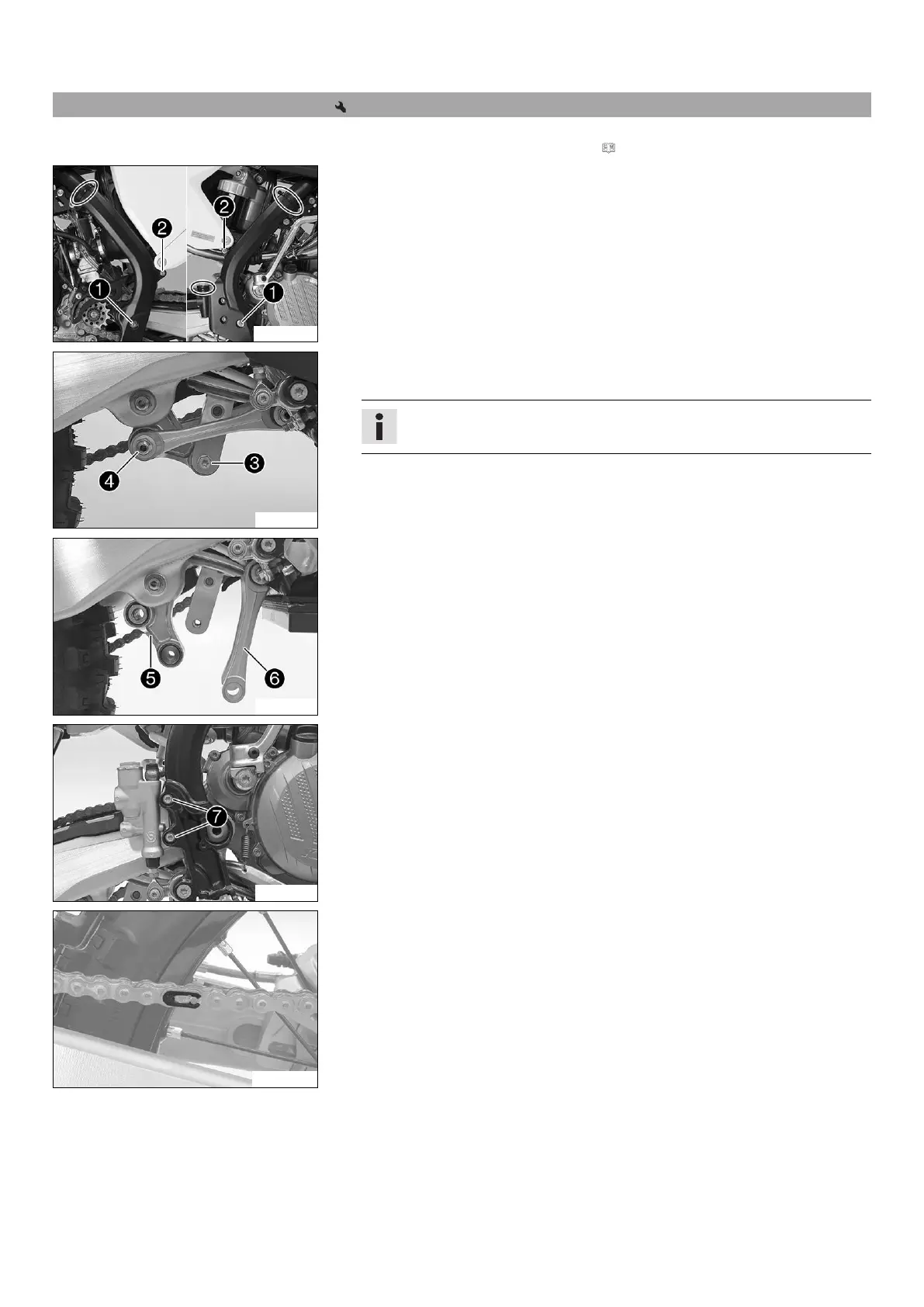

11.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
K00512-10
Main work
–
Remove screws
with the washers and remove screws
.
– Remove the cable ties and remove the frame protectors on the left and right.
F00015-10
–
Remove screw
.
–
Remove fitting
.
Info
Raise the wheel slightly to be able to remove the screws more easily.
F00025-10
–
Press angle lever
toward the rear.
–
Press linkage lever
downward.
F00026-10
–
Remove screws
and pull foot brake cylinder off the push rod.
M01149-01
– Remove the connecting link of the chain.
– Take off the chain.
