KTM 150 SX 2017 User Manual

10 TUNING THE CHASSIS 34
Guideline
Rebound damping (All 125/150 models)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (250 SX EU)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (250 SX US)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Rebound damping (All XC models)
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.

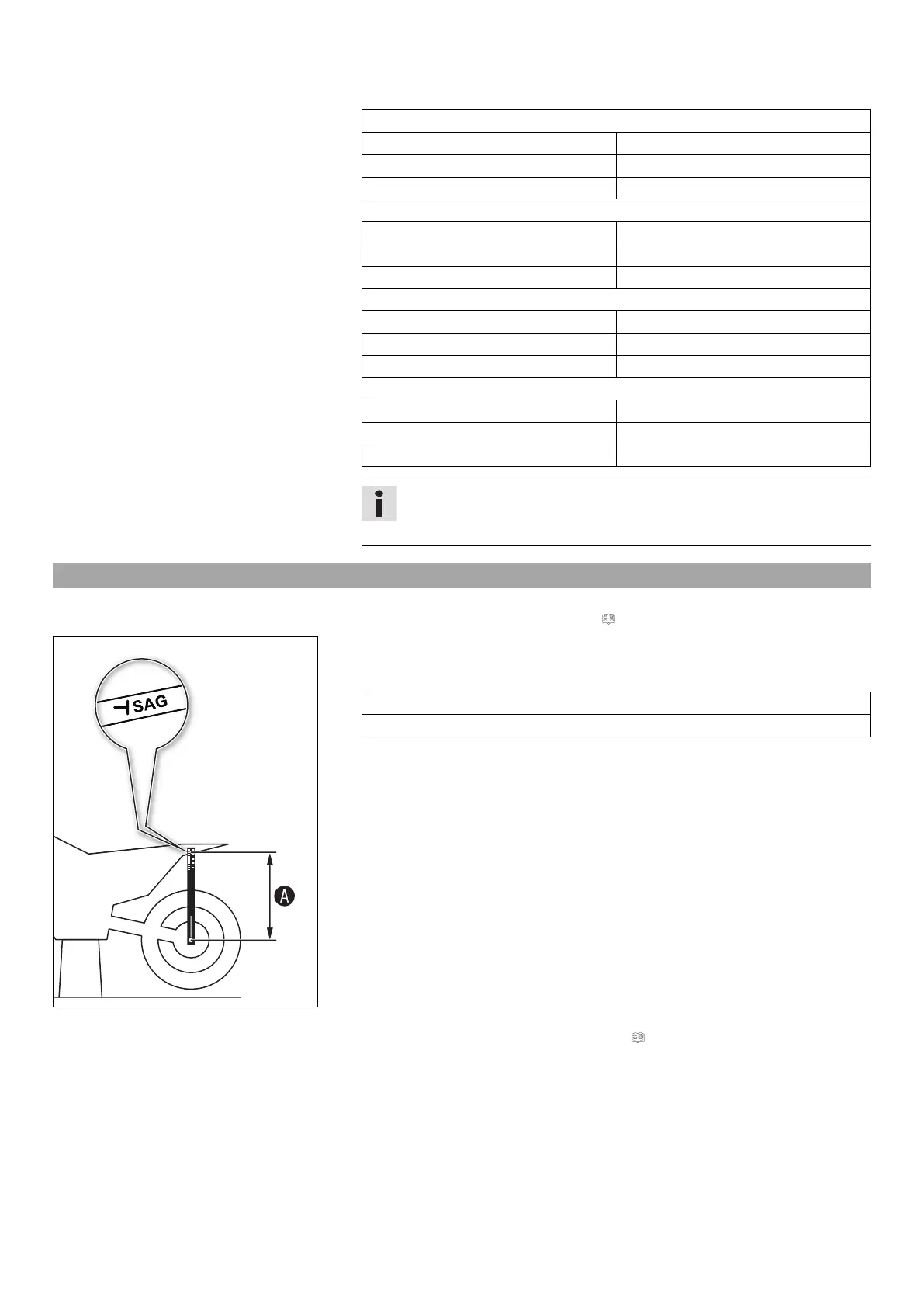

10.7 Measuring the rear wheel dimension unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 42)
402415-10
Main work
– Position the sag gauge in the rear axle and measure the distance to marking SAG on
the rear fender.
Sag gauge (00029090000)
Pin for sag gauge (00029990010)
–
Note down the value as dimension

.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 42)

KTM 150 SX 2017 Specifications

General

Bore x Stroke	58 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Seat Height	960 mm
Ground Clearance	375 mm
Engine Type	1-cylinder, 2-stroke
Displacement	143.99 cm³
Frame	Central tube frame made of chrome molybdenum steel tubing
Front Suspension	WP USD, 48 mm
Rear Suspension	WP shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake Ø 220 mm
Fuel Tank Capacity	7 liters
Fuel System	Carburetor
Dry Weight	80.5 kg
