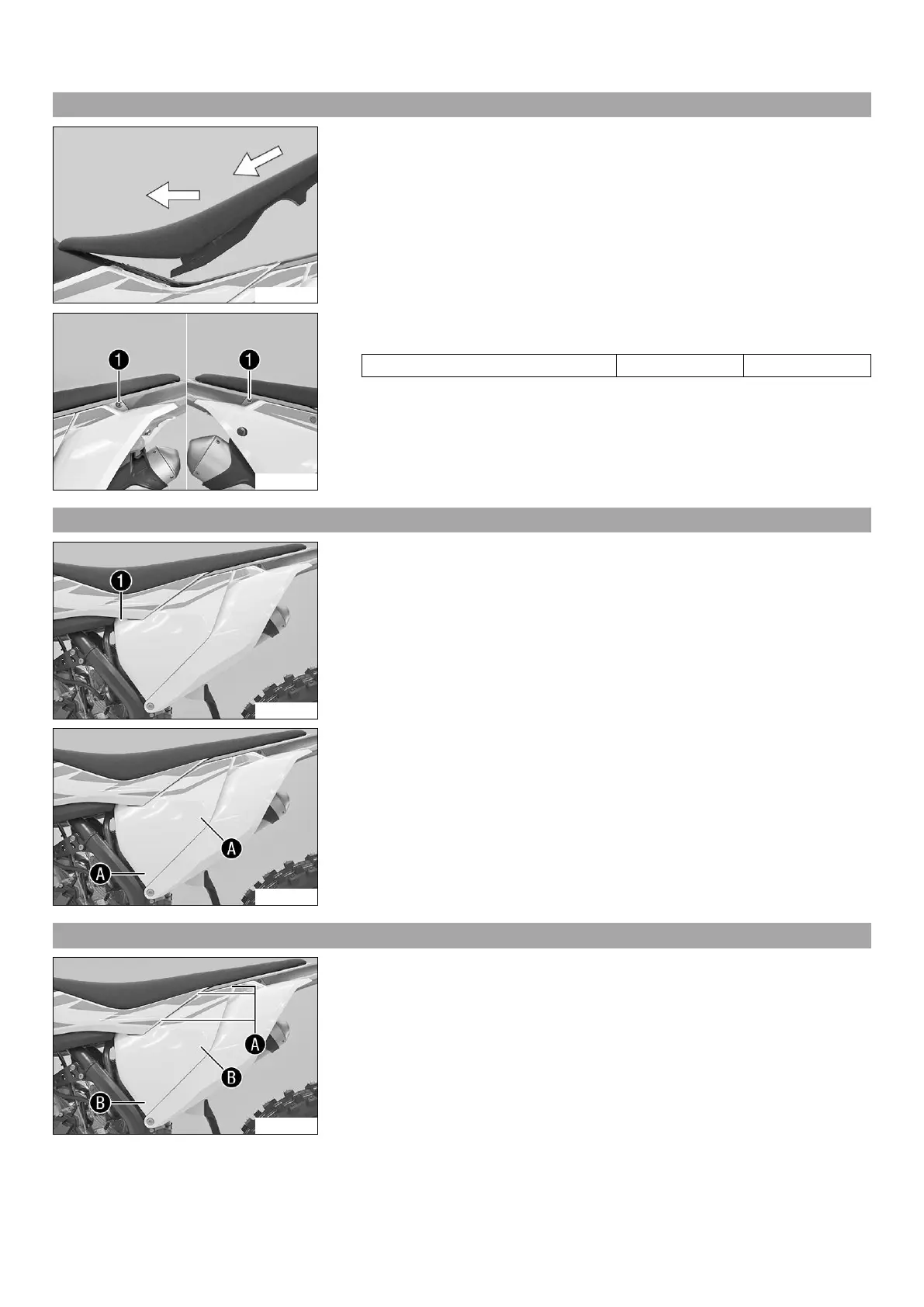

11 SERVICE WORK ON THE CHASSIS 53
11.21 Mounting the seat
F00016-10
– Mount the front of the seat on the collar bushing of the fuel tank, lower the seat at
the rear, and push the seat forward.
– Make sure that the seat is correctly locked in.
F00017-10
–
Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
11.22 Removing the air filter box cover
F00018-10
Condition
The air filter box cover is secured.
–
Remove screw
.
F00018-11
–
Pull off the air filter box cover in area
sideways and remove it toward the front.
11.23 Installing the air filter box cover
F00018-12
–
Insert the air filter box cover in area
and clip it into area
.
