KTM 150 SX 2017 User Manual

11 SERVICE WORK ON THE CHASSIS 66
H01330-10

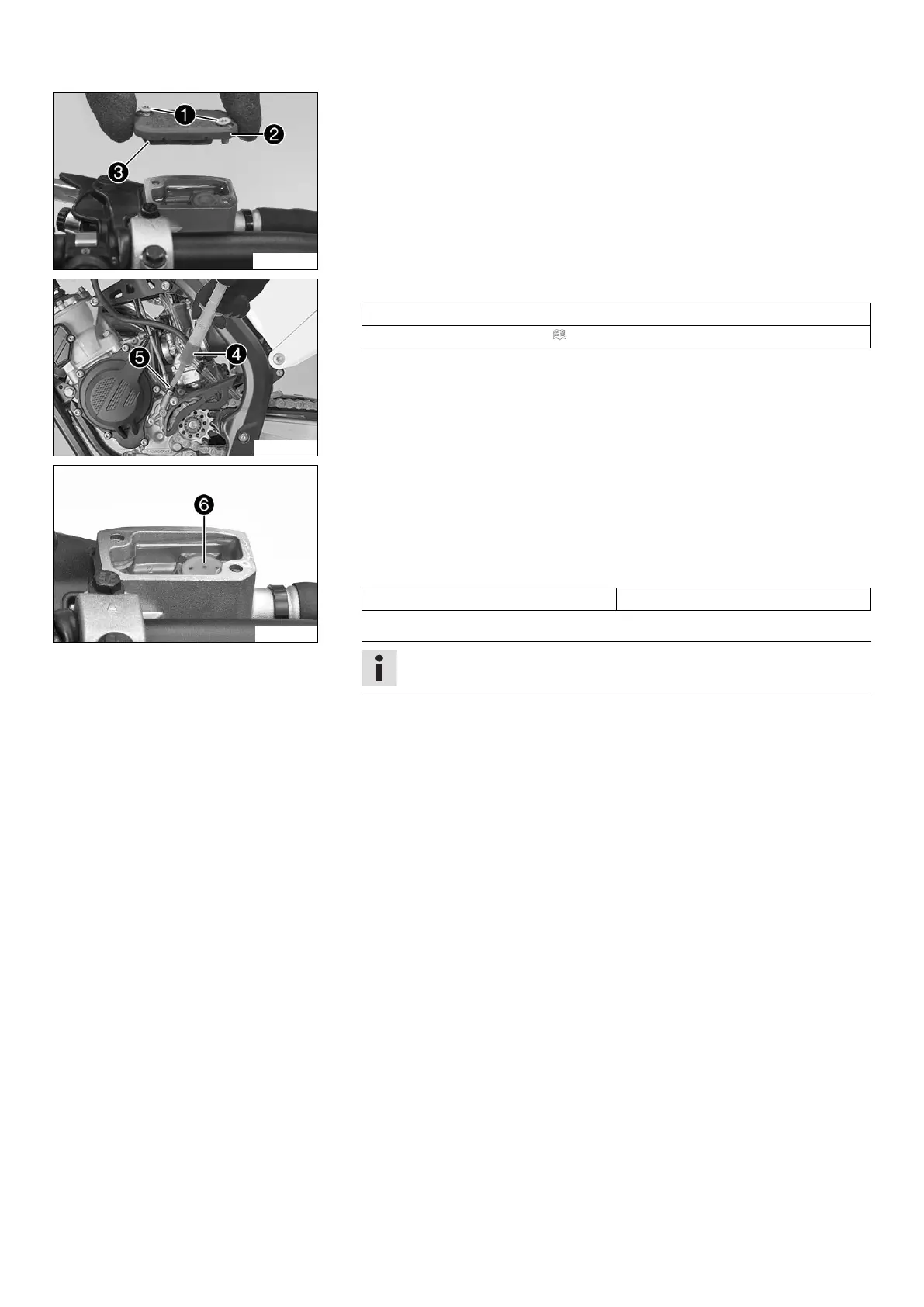

– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws

.
–
Remove cover

with membrane

.
K00520-10
–
Fill bleeding syringe

with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 127)
–
On the clutch slave cylinder, remove bleeder screw

and mount bleeding
syringe

.
L01223-10
–
Now inject the liquid into the system until it emerges from the drill hole

of the
master cylinder without bubbles.
– Now and then, extract fluid from the master cylinder reservoir to prevent overflow.
– Remove the bleeding syringe. Mount and tighten screws bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container rim 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilled brake fluid immediately with water.

KTM 150 SX 2017 Specifications

General

Bore x Stroke	58 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Seat Height	960 mm
Ground Clearance	375 mm
Engine Type	1-cylinder, 2-stroke
Displacement	143.99 cm³
Frame	Central tube frame made of chrome molybdenum steel tubing
Front Suspension	WP USD, 48 mm
Rear Suspension	WP shock absorber
Front Brake	Disc brake
Rear Brake	Disc brake Ø 220 mm
Fuel Tank Capacity	7 liters
Fuel System	Carburetor
Dry Weight	80.5 kg
