KTM 2014 1190 Adventure User Manual

13 SERVICE WORK ON THE CHASSIS 118
G00576-11
–

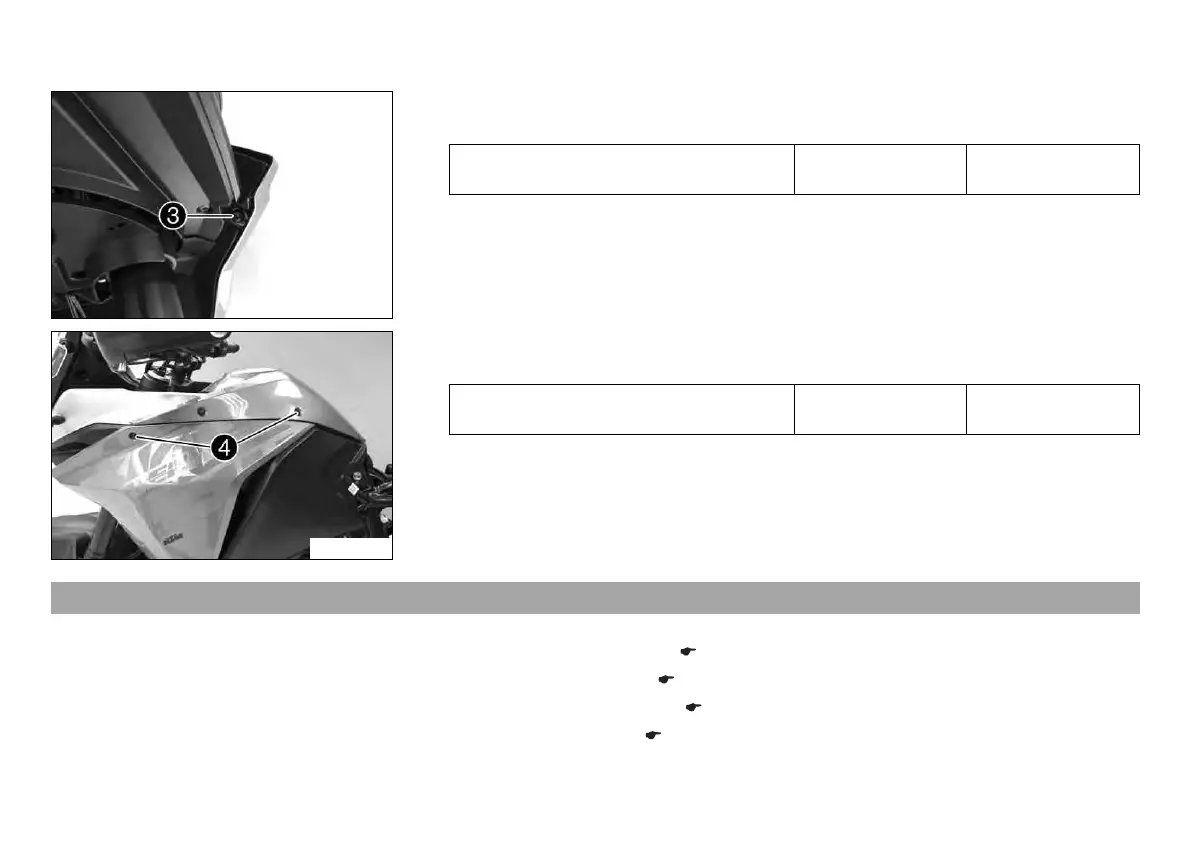

Mount and tighten screw
3
.
Guideline
Screw, cover part M5x12 3.5 Nm
(2.58 lbf ft)
G00577-11
–
Mount and tighten screws
4
.
Guideline
Screw, cover part M5x12 3.5 Nm
(2.58 lbf ft)
– Repeat the operation on the opposite side.
13.18 Removing the mask spoiler x
Preparatory work
– Remove the passenger seat. ( p. 103)
– Remove the driver's seat. ( p. 104)
– Remove the front side cover. ( p. 116)
– Remove the tank cover. ( p. 124)

KTM 2014 1190 Adventure Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	12.5:1
Torque	125 Nm @ 7500 rpm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 19
Rear Tire	170/60 ZR 17
Dry Weight	217 kg
Fuel Capacity	23 liters
Power	150 hp (110 kW) @ 9500 rpm
Clutch	PASC slipper clutch, hydraulically operated
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9ME Combined ABS
Seat Height	860 mm
