KTM 2014 1190 Adventure User Manual

8 ERGONOMICS 77

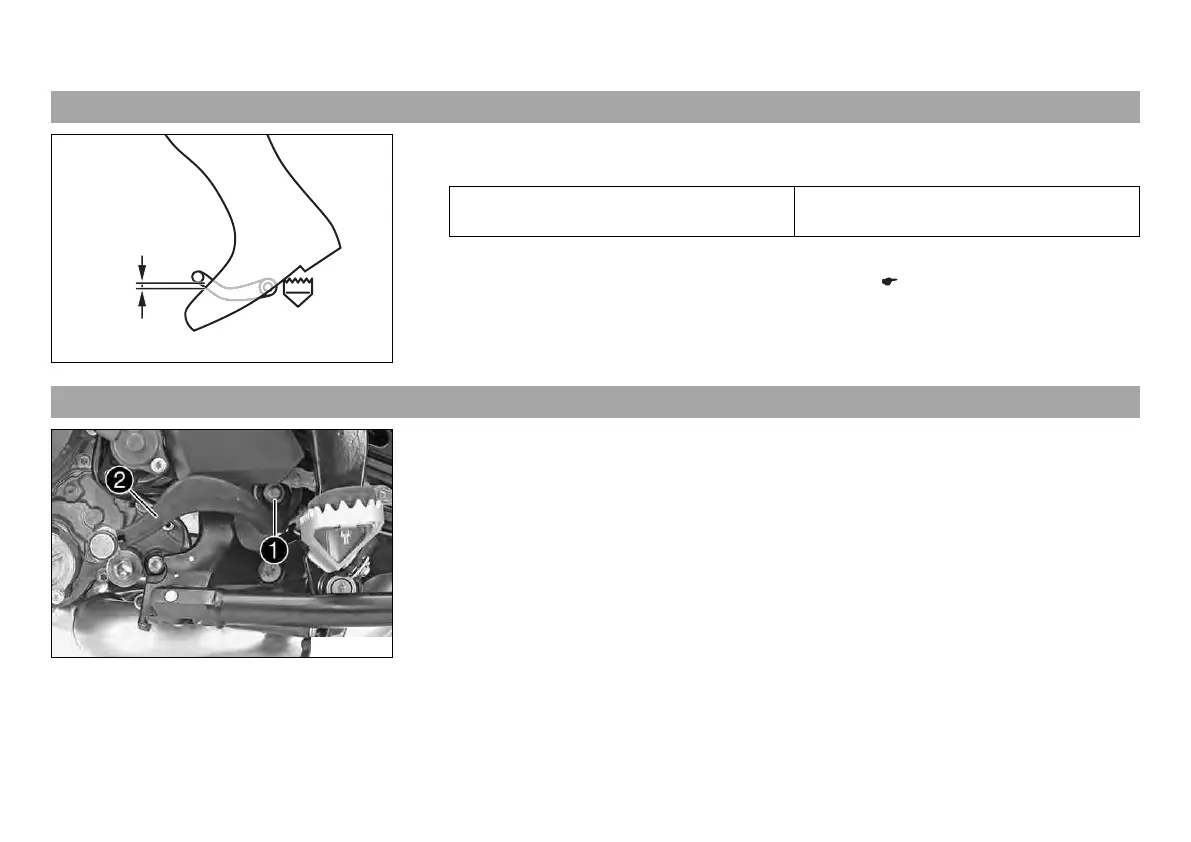

8.11 Checking the basic position of the shift lever
00
0
AA
400692-10
–
Sit on the vehicle in the riding position and determine distance
A
between the upper
edge of your boot and the shift lever.
Distance between shift lever and upper
edge of boot
10… 20 mm (0.39… 0.79 in)
» If the distance does not meet specifications:
–
Adjust the basic position of the shift lever. x ( p. 77)
8.12 Adjusting the basic position of the shift lever x
602787-10
–
Remove screw
1
and take off shift lever
2
.

KTM 2014 1190 Adventure Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	12.5:1
Torque	125 Nm @ 7500 rpm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 19
Rear Tire	170/60 ZR 17
Dry Weight	217 kg
Fuel Capacity	23 liters
Power	150 hp (110 kW) @ 9500 rpm
Clutch	PASC slipper clutch, hydraulically operated
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9ME Combined ABS
Seat Height	860 mm
