16 ELECTRICAL SYSTEM 172
Check the turn signal to make sure it is functioning properly.
Position the diffuser.
Info
Hook in projection
A
at recess
B
.
Insert the screw and first turn it counterclockwise until it engages in the thread. Tighten
the screw slightly.

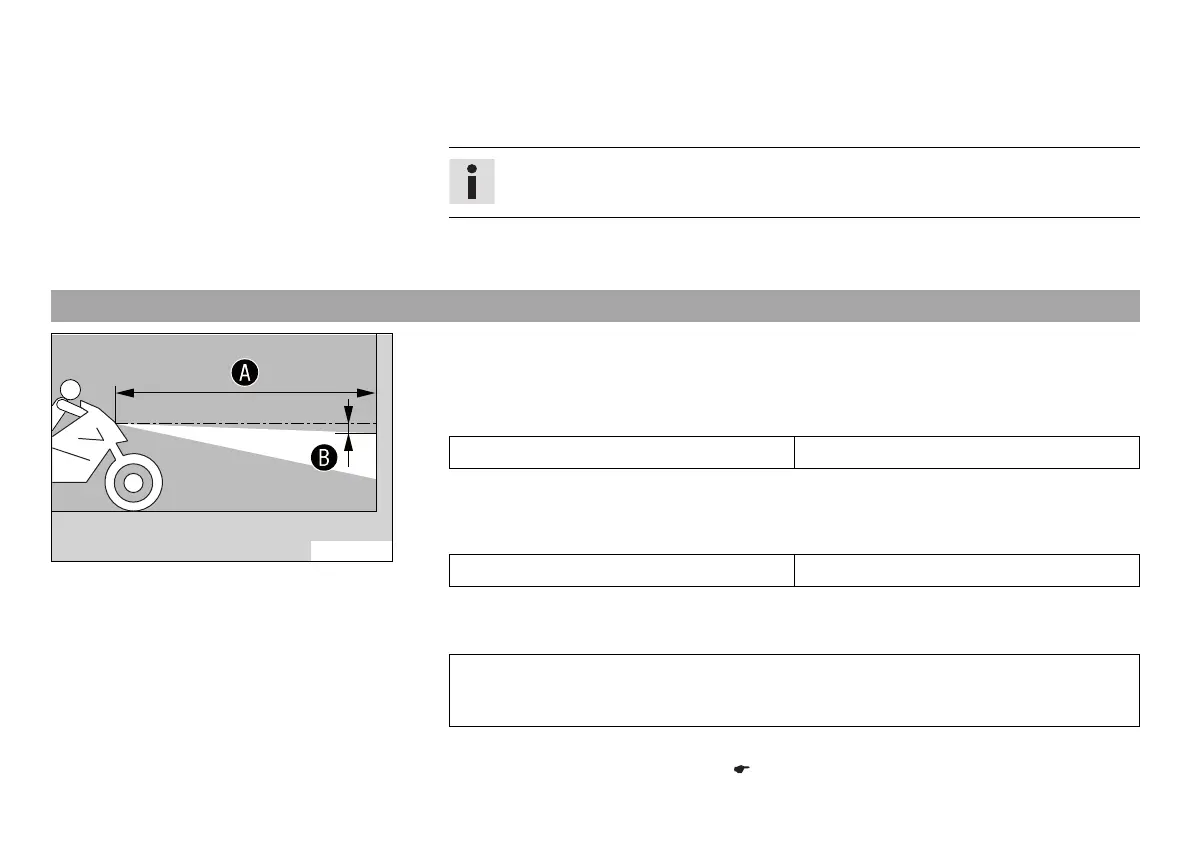

16.12 Checking the headlight setting
400726-10
Park the vehicle on a horizontal surface in front of a light-colored wall and make a mark
at the height of the center of the low beam headlight.
Make another mark at a distance
B
under the first mark.
Guideline
Distance
B
5 cm (2 in)
Position the vehicle perpendicular to the wall at a distance
A
from the wall and switch
on the low beam.
Guideline
Distance
A
5 m (16 ft)
The rider, with luggage and passenger if applicable, now mounts the motorcycle.
Check the headlight setting.
The light-dark boundary must lie exactly on the lower mark when the motorcycle is
ready to operate with the rider mounted along with any baggage and a passenger if
applicable.
» If the boundary between light and dark does not meet specifications:
Adjust the headlight range. ( p. 173)
