KTM 2014 1190 Adventure User Manual

15 WHEELS, TIRES 148
Preparatory work
(Option: Center stand)
– Raise the vehicle with the center stand. ( p. 102)
–
Remove the rear wheel. x ( p. 143)
S00290-10
Main work
–

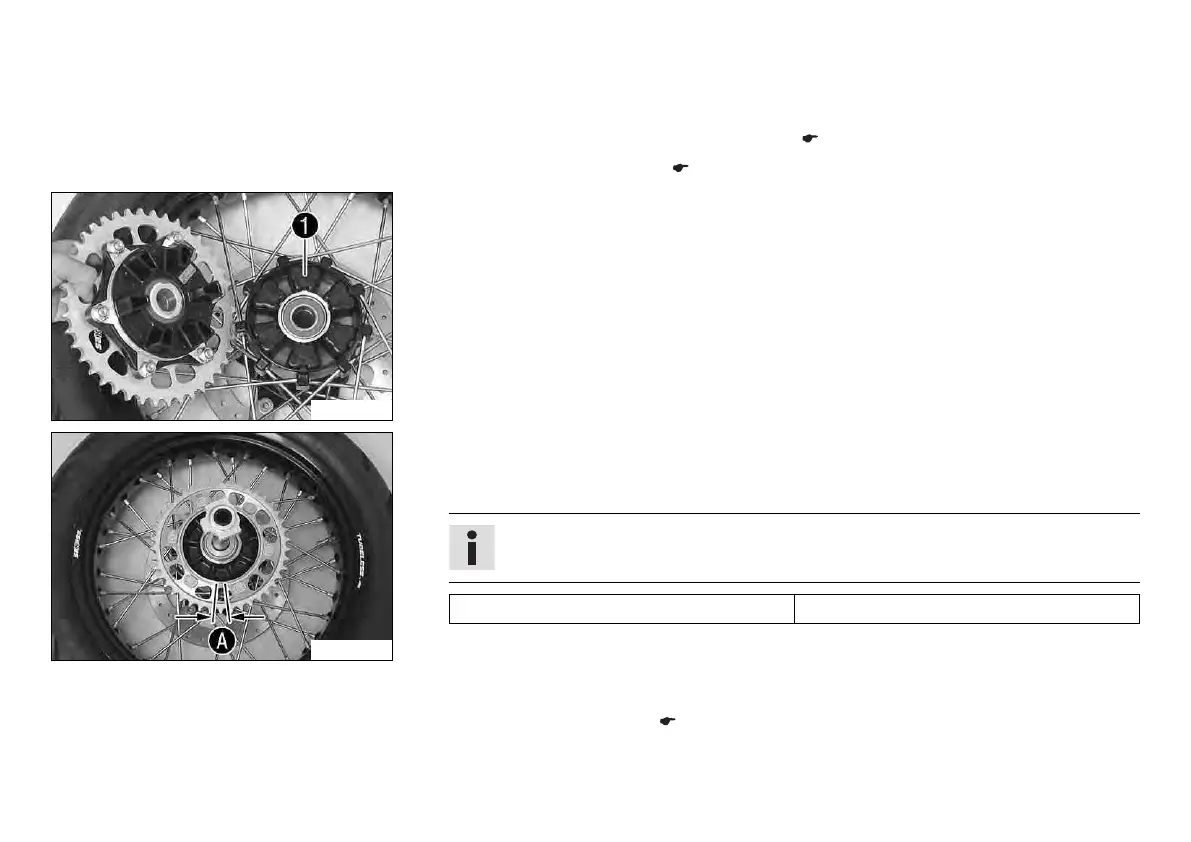

Check the rubber dampers
1
of the rear hub for damage and wear.
» If the rubber dampers of the rear hub are damaged or worn:
– Change all rubber dampers in the rear hub.
S00291-10
–
Lay the rear wheel on a workbench with the rear sprocket facing upwards and insert the
wheel spindle in the hub.
–
Check the rear sprocket play
A
.
Info
Measure the play on the outside of the rear sprocket.
Play in rubber dampers, rear wheel ≤ 5 mm (≤ 0.2 in)
»
If clearance
A
larger than the specified value:
– Change all rubber dampers in the rear hub.
Finishing work
–
Install the rear wheel. x ( p. 145)

KTM 2014 1190 Adventure Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	12.5:1
Torque	125 Nm @ 7500 rpm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 19
Rear Tire	170/60 ZR 17
Dry Weight	217 kg
Fuel Capacity	23 liters
Power	150 hp (110 kW) @ 9500 rpm
Clutch	PASC slipper clutch, hydraulically operated
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9ME Combined ABS
Seat Height	860 mm
