15 WHEELS, TIRES 152

400694-01

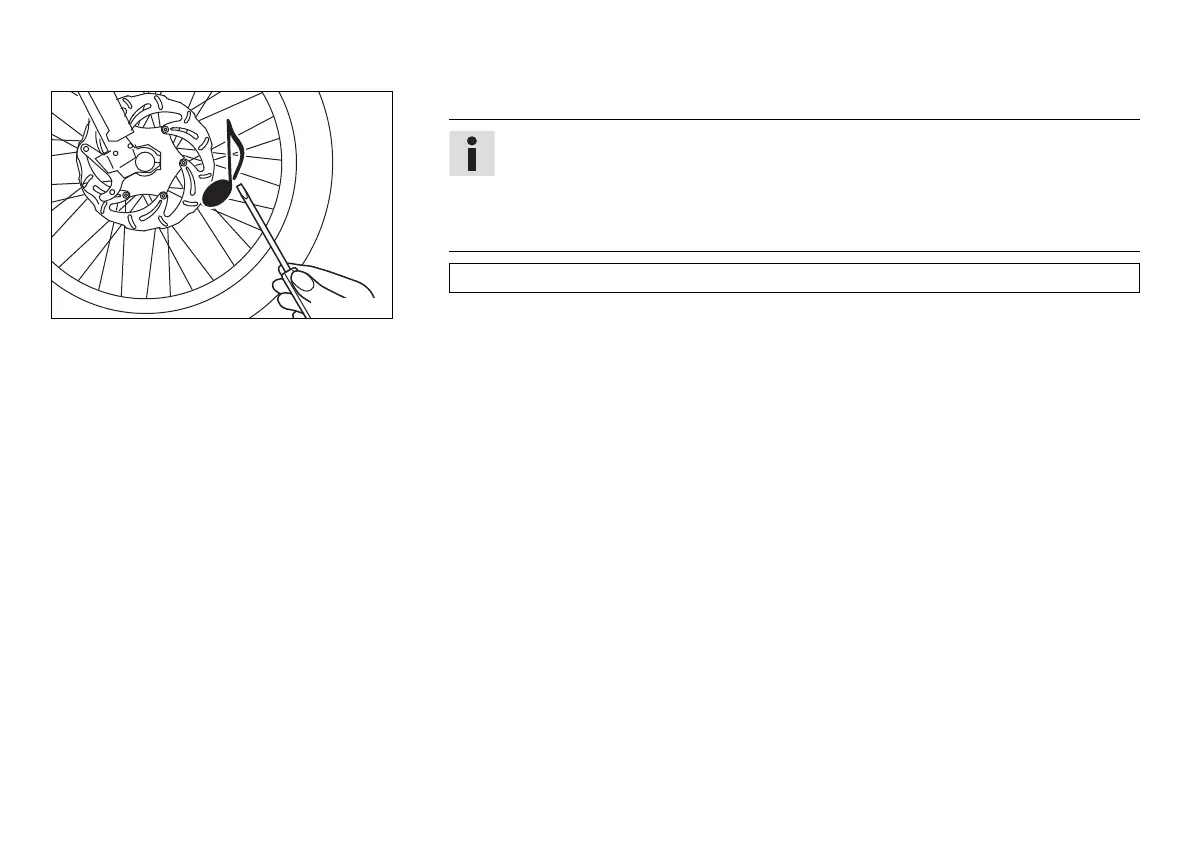

– Strike each spoke briefly using a screwdriver blade.

Info

The frequency of the sound is a function of the spoke length and spoke diame-

ter.

If spokes of the same length and diameter vibrate with a different tone, this is

an indication that the spoke tensions differ.

You should hear a high note.

» If the spoke tension differs:

–

Correct the spoke tension. x
