16 ELECTRICAL SYSTEM 154
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the passenger seat. ( p. 103)
– Remove the driver's seat. ( p. 104)
S00373-10
Main work
–

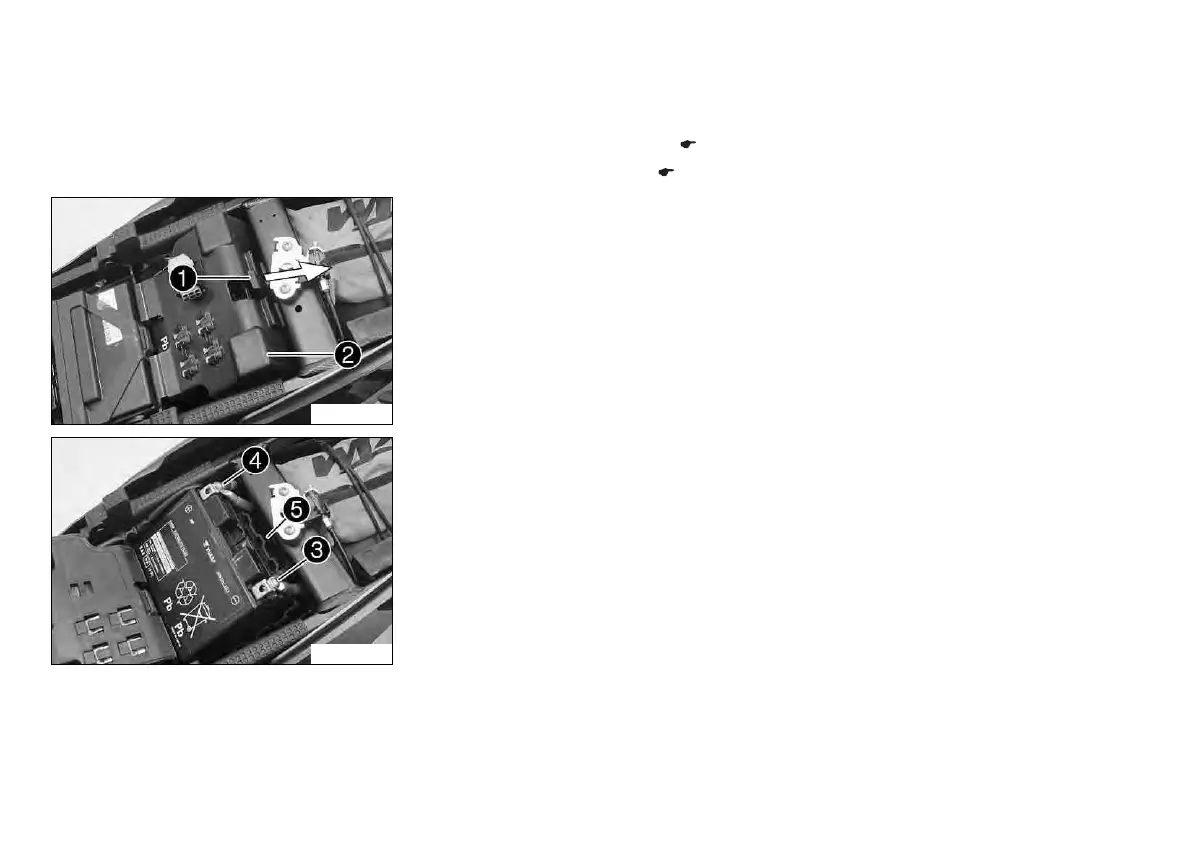

Pull locking mechanism
1
in the direction of the arrow.
–
Fold open cover
2
.
S00375-10
–
Disconnect negative cable
3
of the battery.
–
Disconnect the positive cable
4
of the battery.
–
Take the battery and battery case
5
out of the battery compartment.

KTM 2014 1190 Adventure Specifications

General

Engine Type	2-cylinder, 4-stroke, V 75°
Displacement	1195 cc
Bore x Stroke	105 mm x 69 mm
Compression Ratio	12.5:1
Torque	125 Nm @ 7500 rpm
Fuel System	Electronic Fuel Injection
Transmission	6-speed
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Front Suspension	WP USD Ø 48 mm
Front Tire	120/70 ZR 19
Rear Tire	170/60 ZR 17
Dry Weight	217 kg
Fuel Capacity	23 liters
Power	150 hp (110 kW) @ 9500 rpm
Clutch	PASC slipper clutch, hydraulically operated
Front Brake	2 x Brembo 320 mm discs, 4-piston radial calipers
Rear Brake	Brembo 267 mm disc, 2-piston caliper
ABS	Bosch 9ME Combined ABS
Seat Height	860 mm
