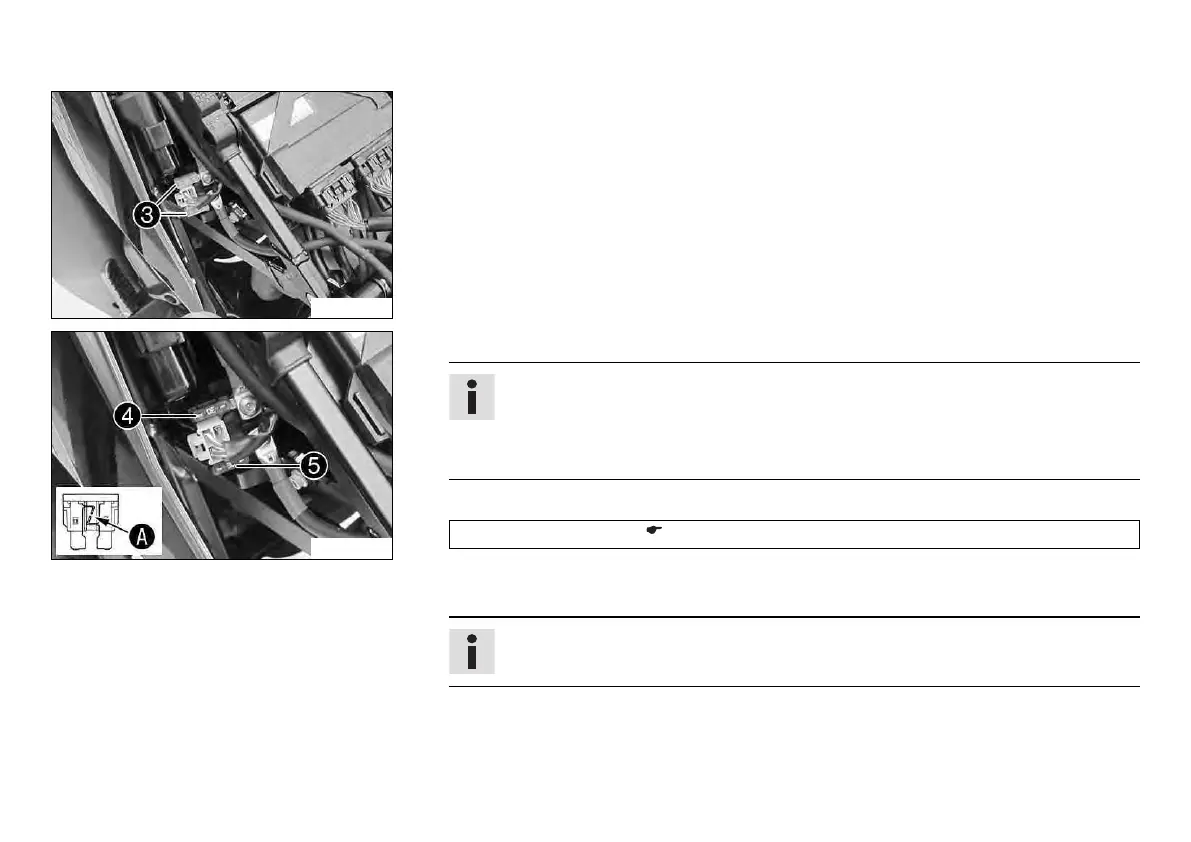

16 ELECTRICAL SYSTEM 162

S00377-10

–

Remove protection caps

S00378-10

–

Remove the faulty main fuse

Info

A defective fuse is indicated by a burned-out fuse wire

A reserve fuse

is located in the starter relay.

The main fuse protects all power consumers of the vehicle.

– Install a new main fuse.

Fuse (58011109130) ( p. 207)

– Check that the electrical equipment is functioning properly.

– Mount protection covers.

Tip

Insert a new spare fuse into the starter relay to have it available when needed.
