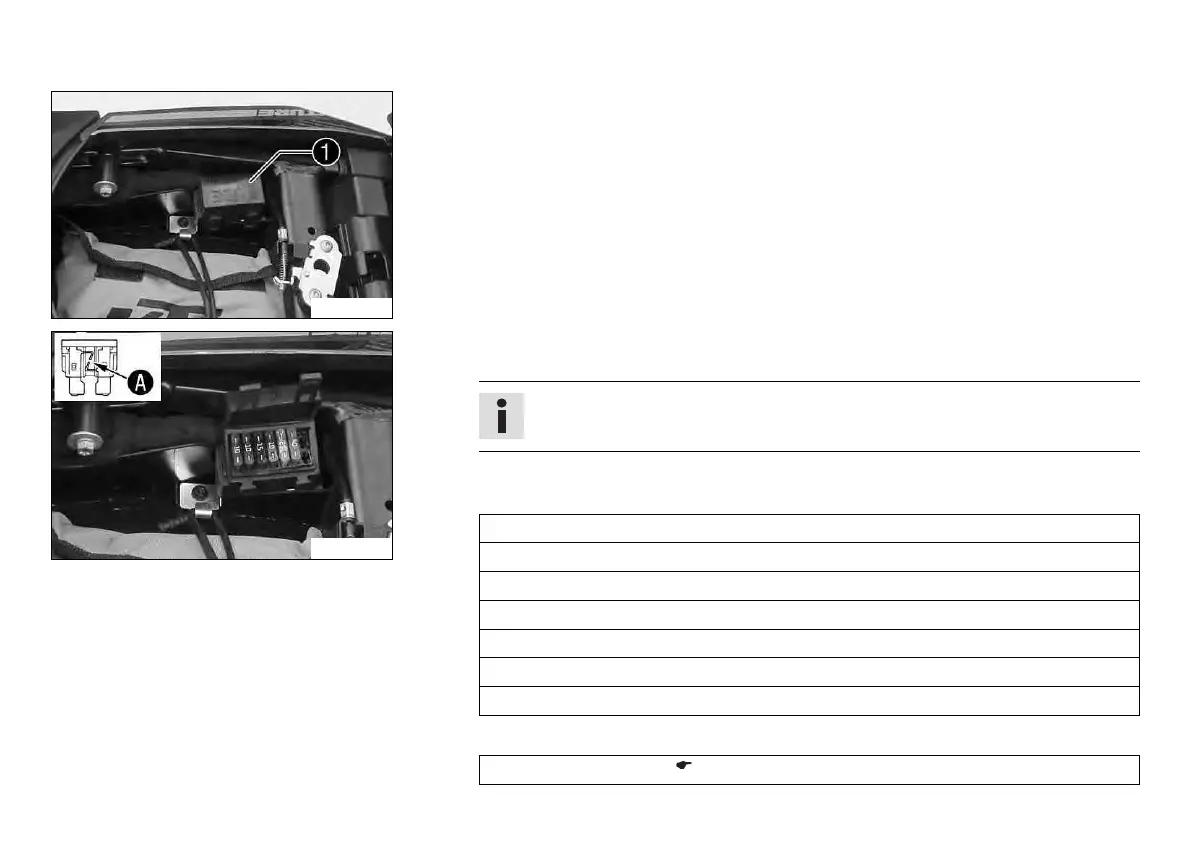

Main work
–
Open fuse box cover
1
.
S00370-11
(Option: With EDS)
– Check the fuses.
Info
A defective fuse is indicated by a burned-out fuse wire
A
.
– Remove the defective fuse.
Guideline
Fuse res - 10 A - spare fuse
Fuse res - 15 A - spare fuse
Fuse 1 - 15 A - power supply for control units and components
Fuse 2 - 10 A - socket (ACC1)
Fuse 3 - 25 A - ABS hydraulic unit
Fuse 4 - 40 A - ABS return pump
Fuse 5 - not used
– Use spare fuses with the correct rating only.
Fuse (58011109110) ( p. 207)
