18 SERVICE WORK ON THE ENGINE 107

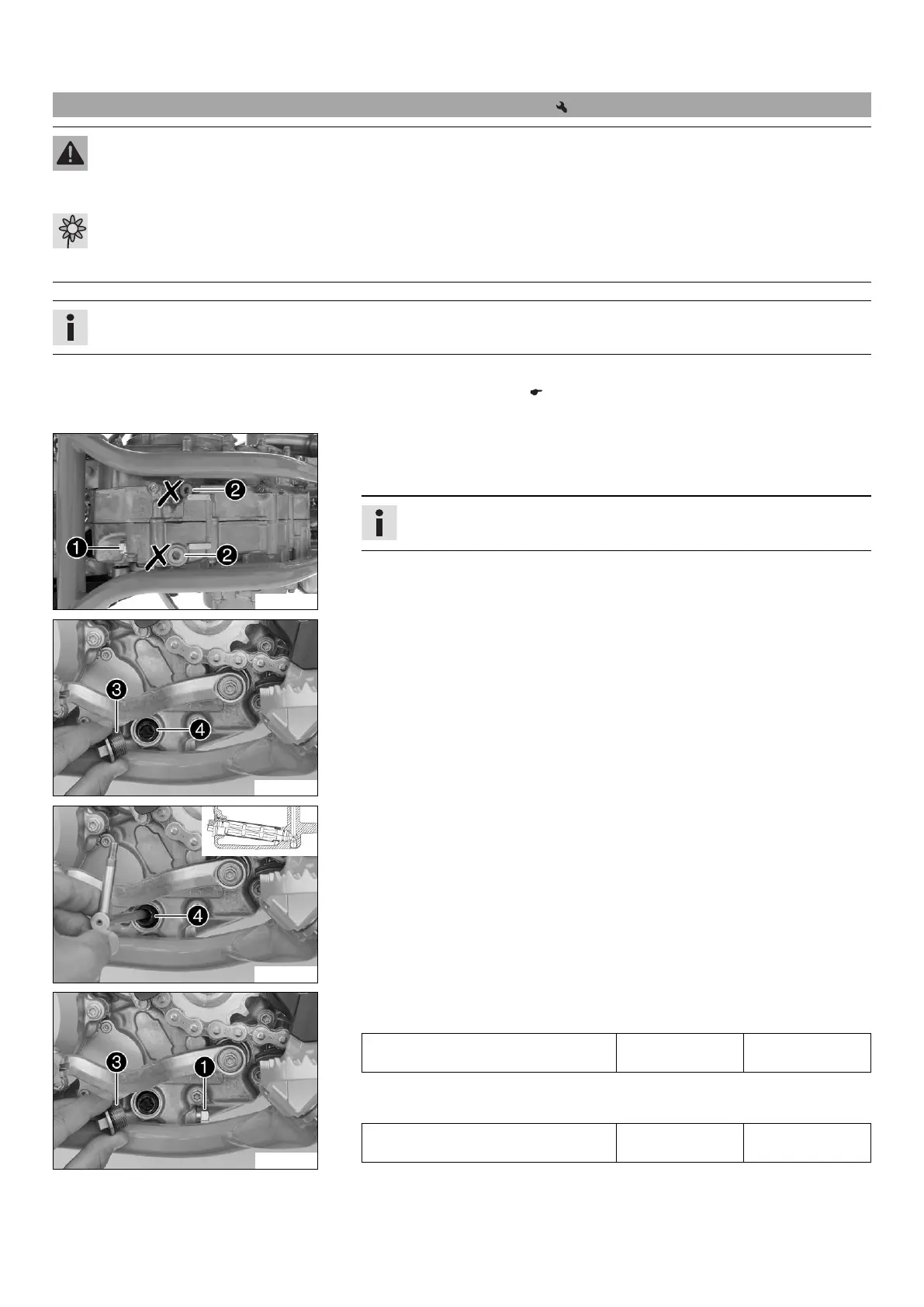

18.3 Changing the engine oil and oil filter, cleaning the oil screen
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain engine oil with engine at operating temperature.
Preparatory work
– Remove the engine guard. ( p. 77)
– Park the motorcycle on a level surface.
L02450-10
Main work
– Place a suitable container under the engine.
–
Remove oil drain plug
with the magnet and seal ring.
Info
Do not remove screws
on both sides.
S00647-10
–
Remove plug
with oil screen
and the O-rings.
– Completely drain the engine oil.
– Thoroughly clean the parts and sealing surfaces.
S00648-10
–
Position oil screen
with the O-rings on a pin wrench.
– Position the pin wrench through the drilled hole of the screw plug in the opposite
section of the engine case.
– Push the oil screen all the way into the engine case.
L02479-11
–
Mount and tighten screw plug
with the O-ring.
Guideline
Screw plug, oil screen M20x1.5 15 Nm
(11.1 lbf ft)
–
Mount and tighten the oil drain plug
with the magnet and a new seal ring.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
