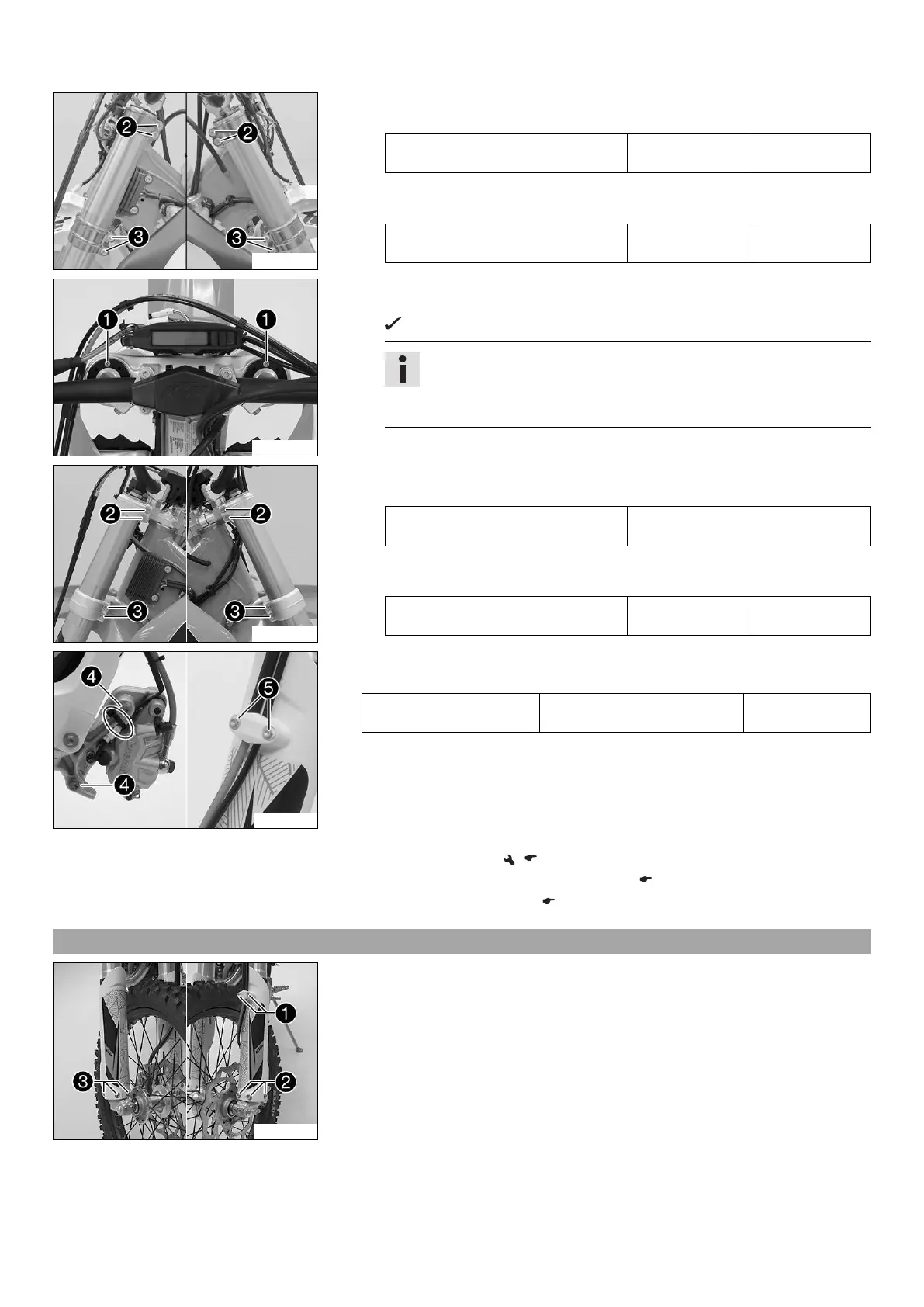

12 SERVICE WORK ON THE CHASSIS 52
M00138-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
M00992-10
(XCF‑W)
– Position the fork legs.
Bleeder screws
are positioned toward the front.
Info
Grooves are milled into the side of the upper end of the fork legs. The
second milled groove (from the top) must be flush with the top edge of
the upper triple clamp.
M00991-11
–
Tighten screws
.
Guideline
Screw, top triple clamp M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
.
Guideline
Screw, bottom triple clamp M8 15 Nm
(11.1 lbf ft)
K00088-10
–
Position the brake caliper and mount and tighten screws
.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
– Mount the cable binder.
–
Position the brake line, wiring harness, and clamp. Mount and tighten screws
.
Finishing work
– Install the front wheel. ( p. 87)
– Refit the headlight mask with the headlight. ( p. 96)
– Check the headlight setting. ( p. 97)
12.7 Removing the fork protector
S00820-10
–
Remove screws
and take off the clamp.
–
Remove screws
on the left fork leg and take off the left fork protector.
–
Remove screws
on the right fork leg and take off the right fork protector.
