KTM 250 EXC-F User Manual

15 ELECTRICAL SYSTEM 96
K00143-10
(XCF‑W)
–

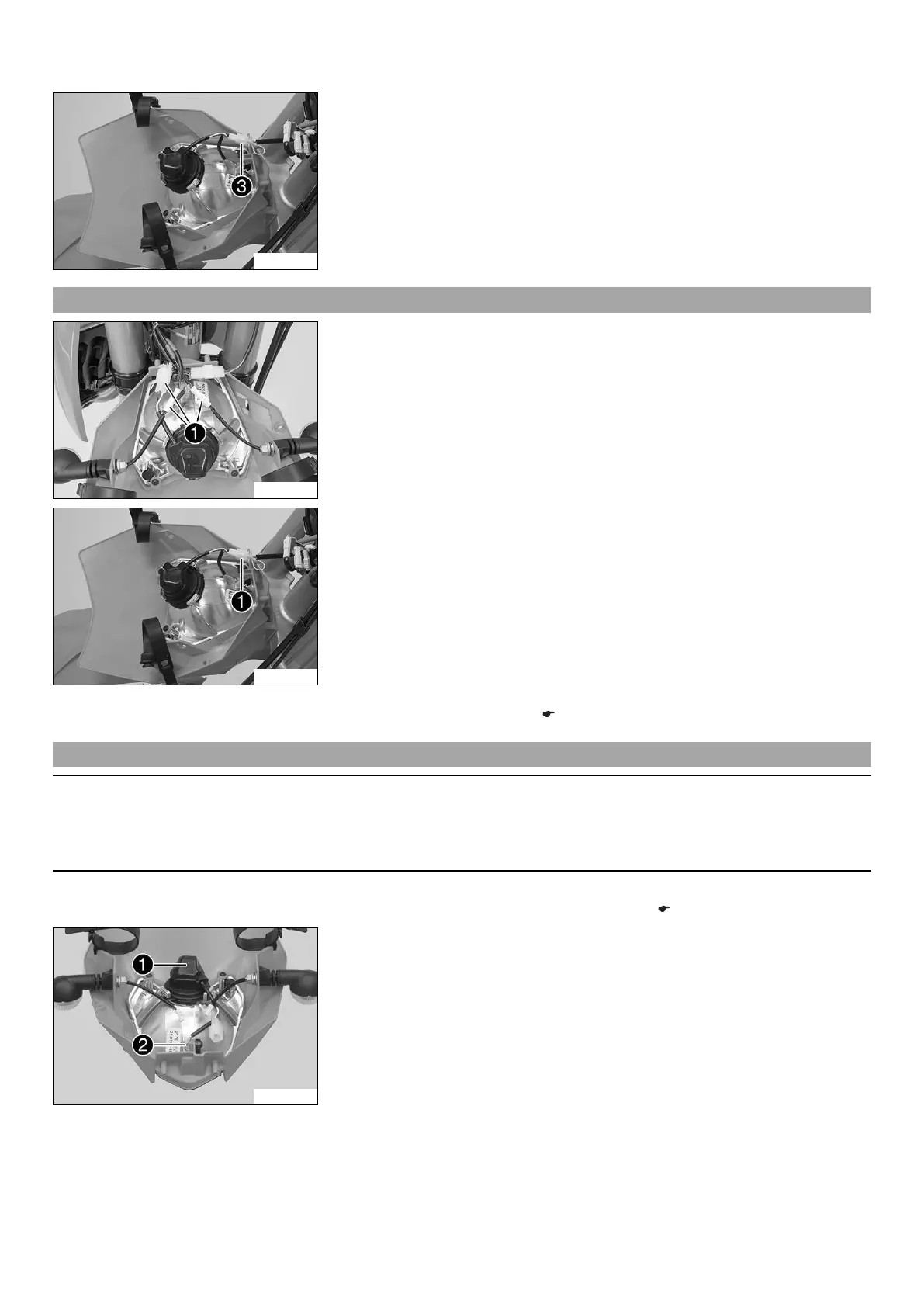

Detach plug-in connector

and take off the headlight mask with the head-
light.
15.7 Refitting the headlight mask with the headlight
K00118-11
Main work
(All EXC‑F models)
–
Connect plug-in connectors

.
K00143-11
(XCF‑W)
–
Connect plug-in connector

.
Finishing work
– Check the headlight setting. ( p. 97)
15.8 Changing the headlight bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 95)
K00119-10
Main work
–
Turn protection cap

together with the underlying bulb socket counterclockwise
all the way and remove it.
–
Pull bulb socket

of the parking light out of the reflector.
