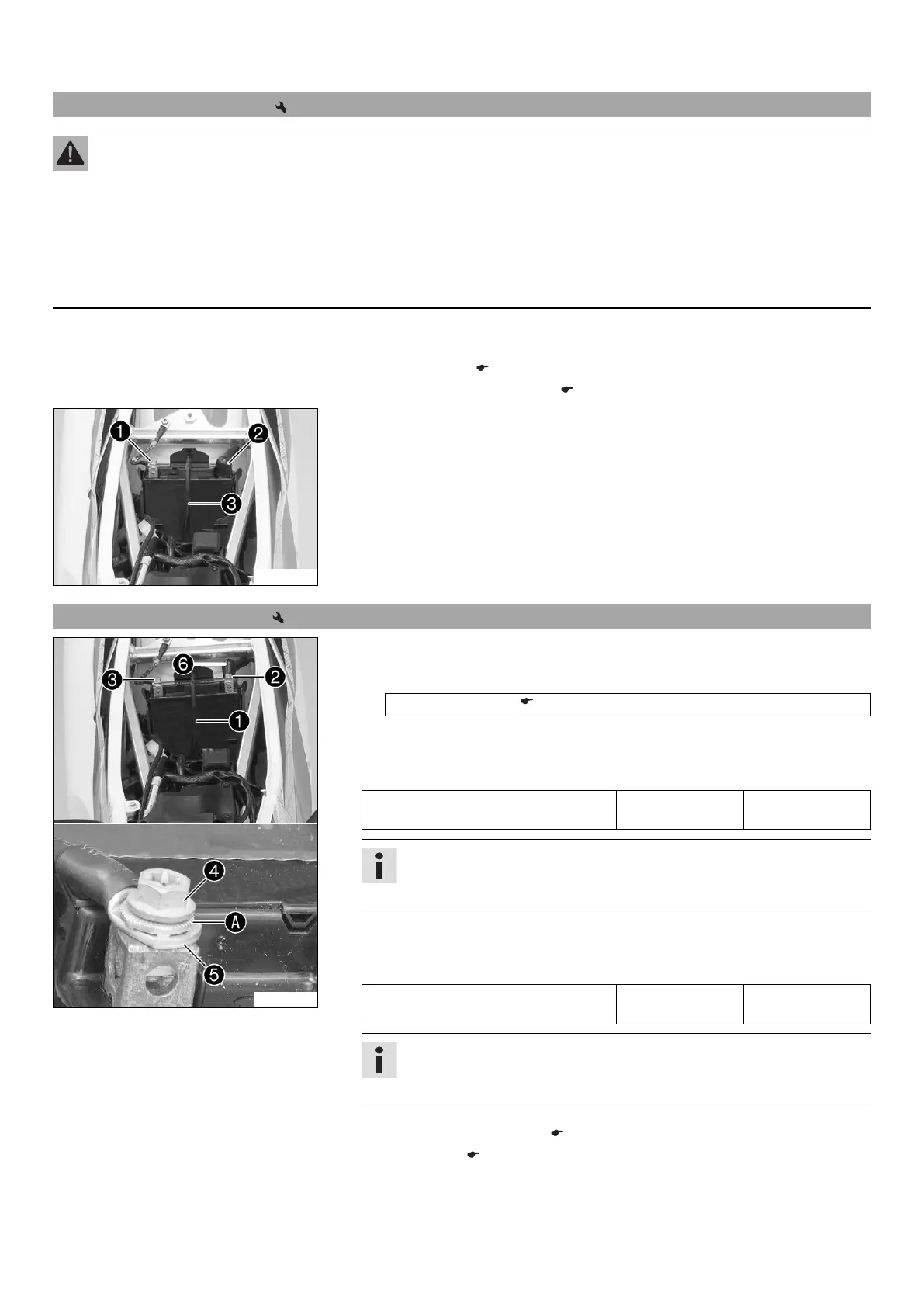

15 ELECTRICAL SYSTEM 92
15.1 Removing the battery
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least
15 minutes and contact a physician.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 62)
– Remove the air filter box cover. ( p. 63)
K00096-10
Main work
–
Disconnect negative cable
from the battery.
–
Pull back positive terminal cover
and disconnect the positive cable from the
battery.
–
Detach rubber band
at the bottom.
– Lift the battery up and out.
15.2 Installing the battery
K00116-10
Main work
– Insert the battery into the battery compartment with the terminals facing forward.
Alternative 1
Battery (YTX4L-BS) ( p. 120)
–
Reconnect rubber band
.
–
Position the positive cable
and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk
must be mounted between screw
and cable lug
with the claws facing down.
–
Slide positive terminal cover
over the positive terminal.
–
Position the negative cable
and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk
must be mounted between screw
and cable lug
with the claws facing down.
Finishing work
– Install the air filter box cover. ( p. 63)
– Mount the seat. ( p. 62)
