KTM 250 SX-F EU User Manual

SERVICE WORK ON THE CHASSIS 35

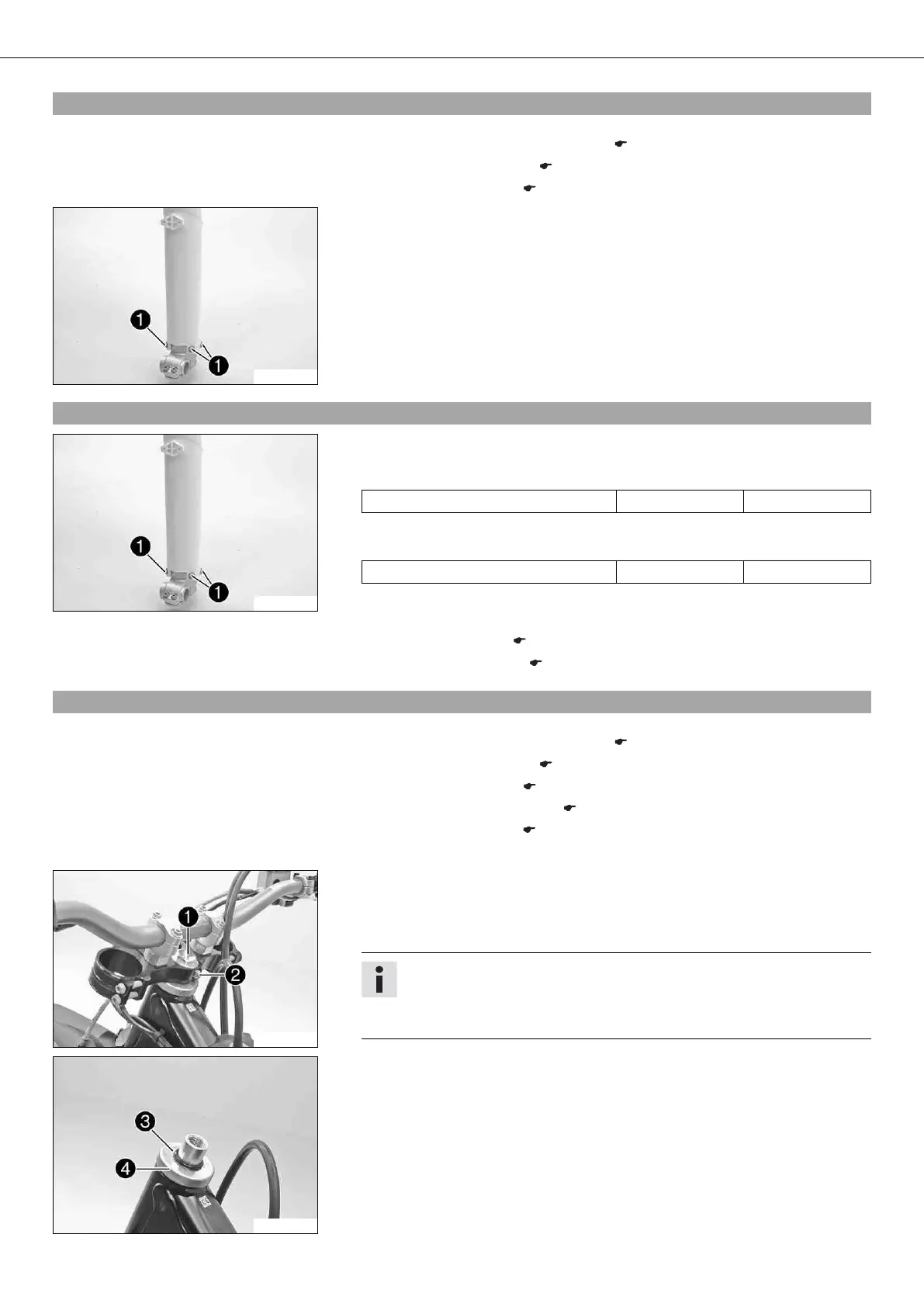

10.9Removing the fork protector x
Preliminary work
– Raise the motorcycle with the lift stand. ( p. 32)
–
Remove the front wheel. x ( p. 62)
–
Remove the fork legs. x ( p. 34)
B00306-10
Main work
– Remove screws 1 on the left fork leg. Remove the fork protector from above.
– Remove the screws on the right fork leg. Remove the fork protector from above.
10.10Installing the fork protector x
B00306-10
Main work
– Position the fork protection on the left fork leg. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–
Position the fork protection on the right fork leg. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Subsequent work
–
Install the fork legs. x ( p. 34)
–
Install the front wheel. x ( p. 62)
10.11Removing the lower triple clamp x
Preliminary work
– Raise the motorcycle with the lift stand. ( p. 32)
–
Remove the front wheel. x ( p. 62)
–
Remove the fork legs. x ( p. 34)
– Remove the start number plate. ( p. 39)
– Remove the front fender. ( p. 39)
– Remove the handlebar cushion.
B00309-10
Main work
– Remove screw 1.
– Remove screw 2.
– Take off the top triple clamp with the handlebar and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
B00310-10
– Remove O-ring 3. Remove protective ring 4.
– Take out the lower triple clamp with the steering stem.
– Take out the upper steering head bearing.
