SERVICE WORK ON THE CHASSIS 44
400256-10
(SX‑F EU/USA, XC‑F)

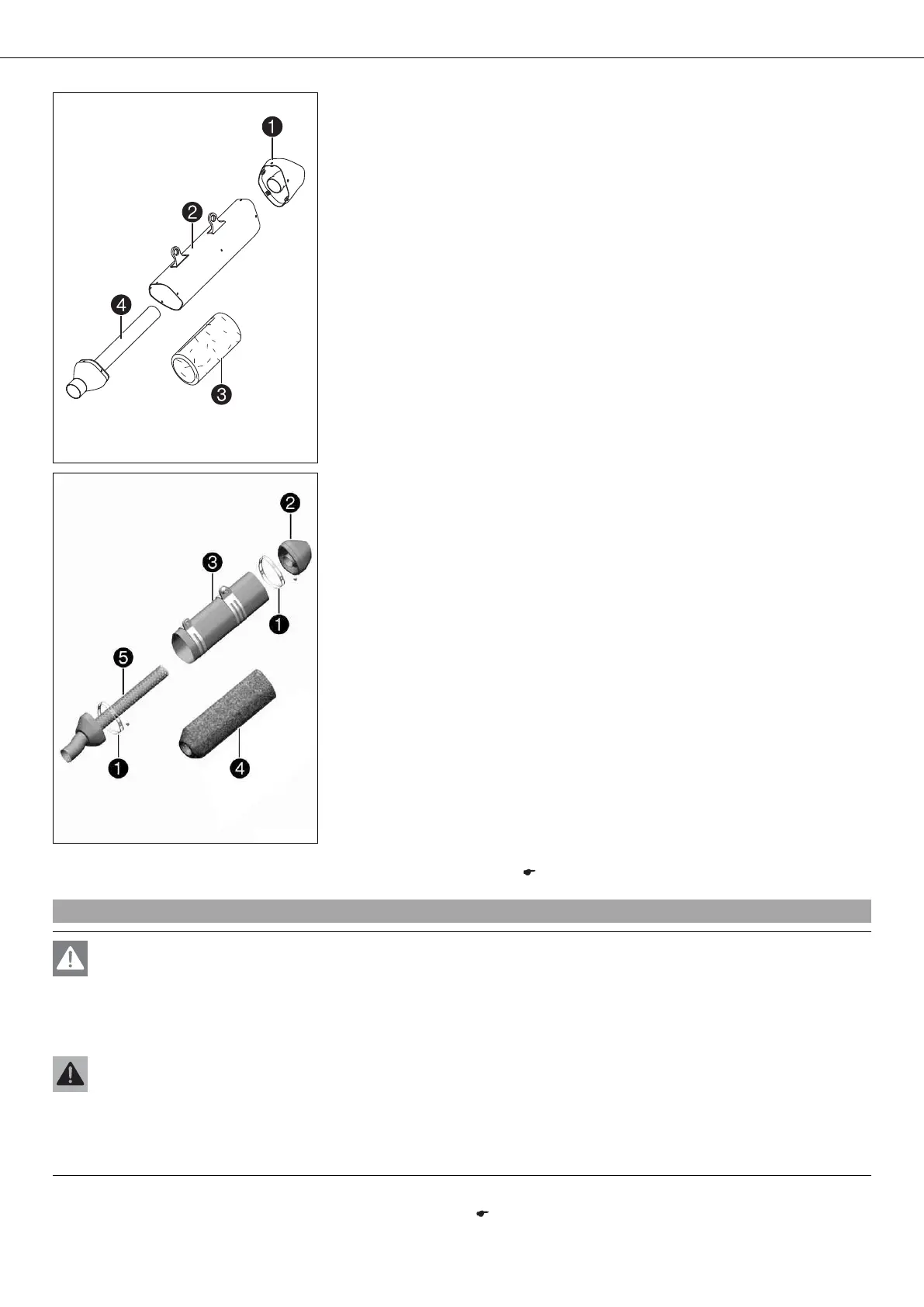

– Remove all screws from the main silencer. Remove locking cap 1 and outer
tube 2.
– Pull the glass fiber yarn filling 3 from inner tube 4.
– Clean the parts that are to be reinstalled.
– Mount the new glass fiber yarn filling 3 on the inner tube.
– Slide outer tube 2 over the glass fiber yarn filling.
– Insert locking cap 1 into the outer tube.
– Mount and tighten all screws.
101090-10
(SX‑F ROCZEN REPLICA)
– Drill out all rivets on the main silencer and remove steel bands 1. Carefully
hammer the rivets inward.
– Remove locking cap 2 and outer tube 3.
– Pull the glass fiber yarn filling 4 from inner tube 5.
– Clean the parts that are to be reinstalled.
– Wind adhesive tape around the end of the inner tube.
– Mount the new glass fiber yarn filling 4 on the inner tube.
– Remove the adhesive tape from the inner tube.
– Slide outer tube 3 over the glass fiber yarn filling.
– Insert locking cap 2 into the outer tube.
– Position steel bands 1 and mount the rivets.
Follow-up work
– Install the main silencer. ( p. 43)
10.32Removing the fuel tank x
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
Preliminary work
– Remove the seat. ( p. 41)
