ELECTRICAL SYSTEM 69

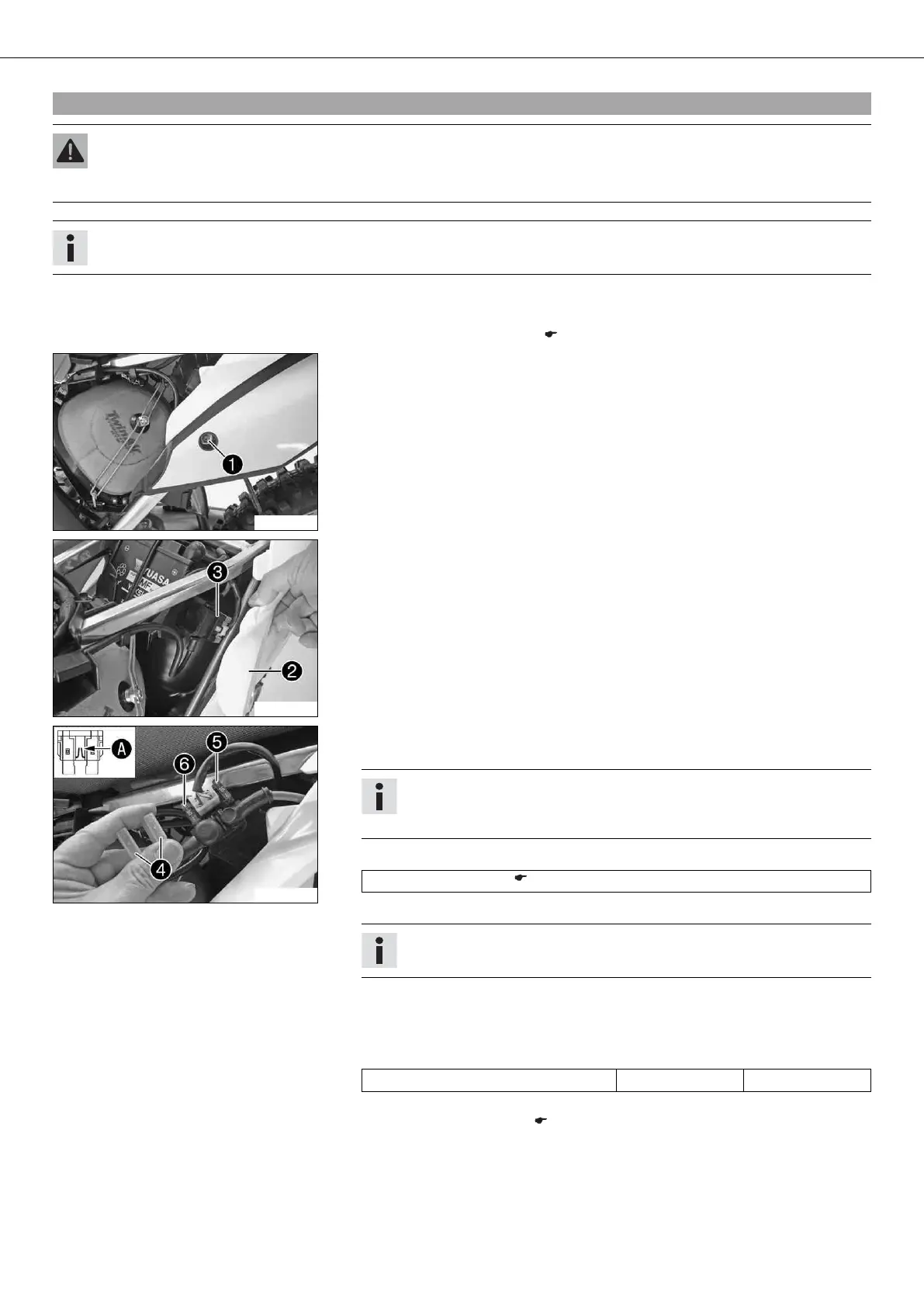

13.4Changing the main fuse
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never by-pass or repair fuses.
Info
The main fuse protects all power consumers in the vehicle. It is located in the starter relay housing under the filter box cover.
Preliminary work
– Switch off all power consumers and switch off the engine.
– Remove the air filter box lid. ( p. 41)
101087-10
Main work
– Remove screw 1.
101088-10
– Lift rear fairing 2 slightly and pull starter relay 3 out of the bracket.
101089-10
– Remove protection caps 4.
– Remove the faulty main fuse 5.
Info
A defective fuse is indicated by a burned-out fuse wire A.
A reserve fuse 6 is located in the starter relay.
– Install a new main fuse.
Fuse (58011109110) ( p. 89)
– Check that the electrical equipment is functioning.
Tip
Insert the spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the bracket and lay the cable.
– Position the rear fairing. Mount and tighten the screw.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Follow-up work
– Install the air filter box lid. ( p. 41)
