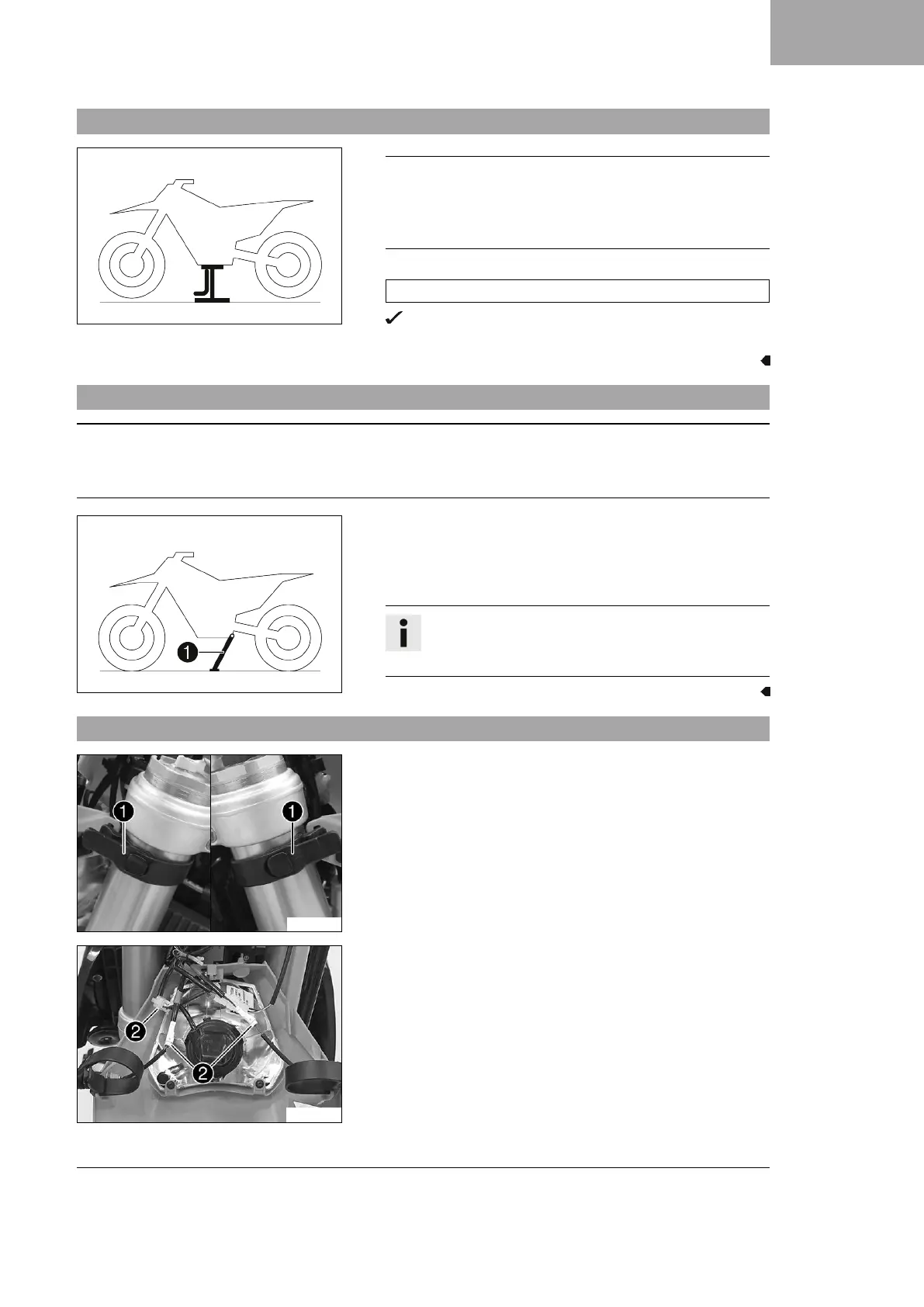

3.1 Raising the motorcycle with the lift stand
401942-01
Note
Danger of damage The parked vehicle can roll away or fall
over.
– Park the vehicle on a firm and level surface.
– Raise the motorcycle at the frame underneath the engine.
Lift stand (78129955100)
Neither wheel is in contact with the ground.
– Secure the motorcycle against falling over.
3.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
401943-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
–
To park the motorcycle, press side stand
1
to the ground
with your foot and lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up
and secured with rubber strap.
3.3 Removing the headlight mask with the headlight
V01782-10
– Detach the brake line and wiring harness from the headlight
mask.
–
Loosen rubber straps
1
. Slide the headlight mask up and
swing it forward.
S01328-10
(All EU models, EXC‑F Six Days, 500 EXC‑F US)
–
Detach plug-in connectors
2
and take off the headlight
mask with the headlight.
