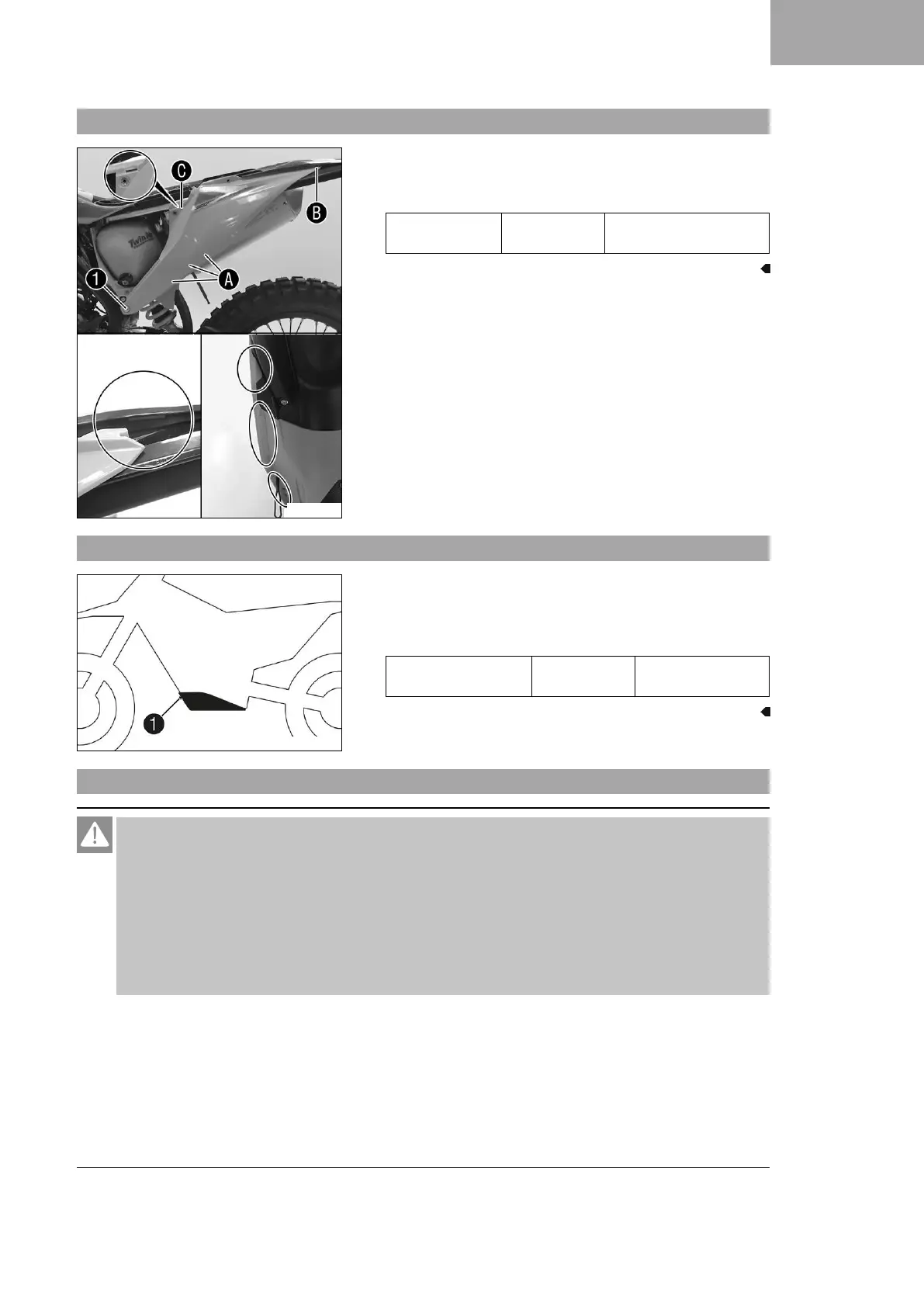

3.21 Installing the rear left side cover
V01879-10
–
Position side cover and hook it in in areas
A
,
B
and
C
.
–
Mount and tighten screw
1
.
Guideline
Screw, sub-
frame top
M8 35 Nm (25.8 lbf ft)
Loctite
®
2701™
3.22 Installing the engine guard (XCF‑W, EXC‑F Six Days)
H01638-10
– Attach the engine guard on the frame at the rear and swing up
at the front.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
3.23 Opening fuel tank filler cap
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
– Do not fuel the vehicle in the vicinity of open flames or lit cigarettes.
– Switch off the engine for refueling.
– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
– If any fuel is spilled, wipe it off immediately.
– Observe the specifications for refueling.
