WORK 3
29
V01777-11
–
Mount starter relay
5
and fuse box
6
.
V01780-10
–

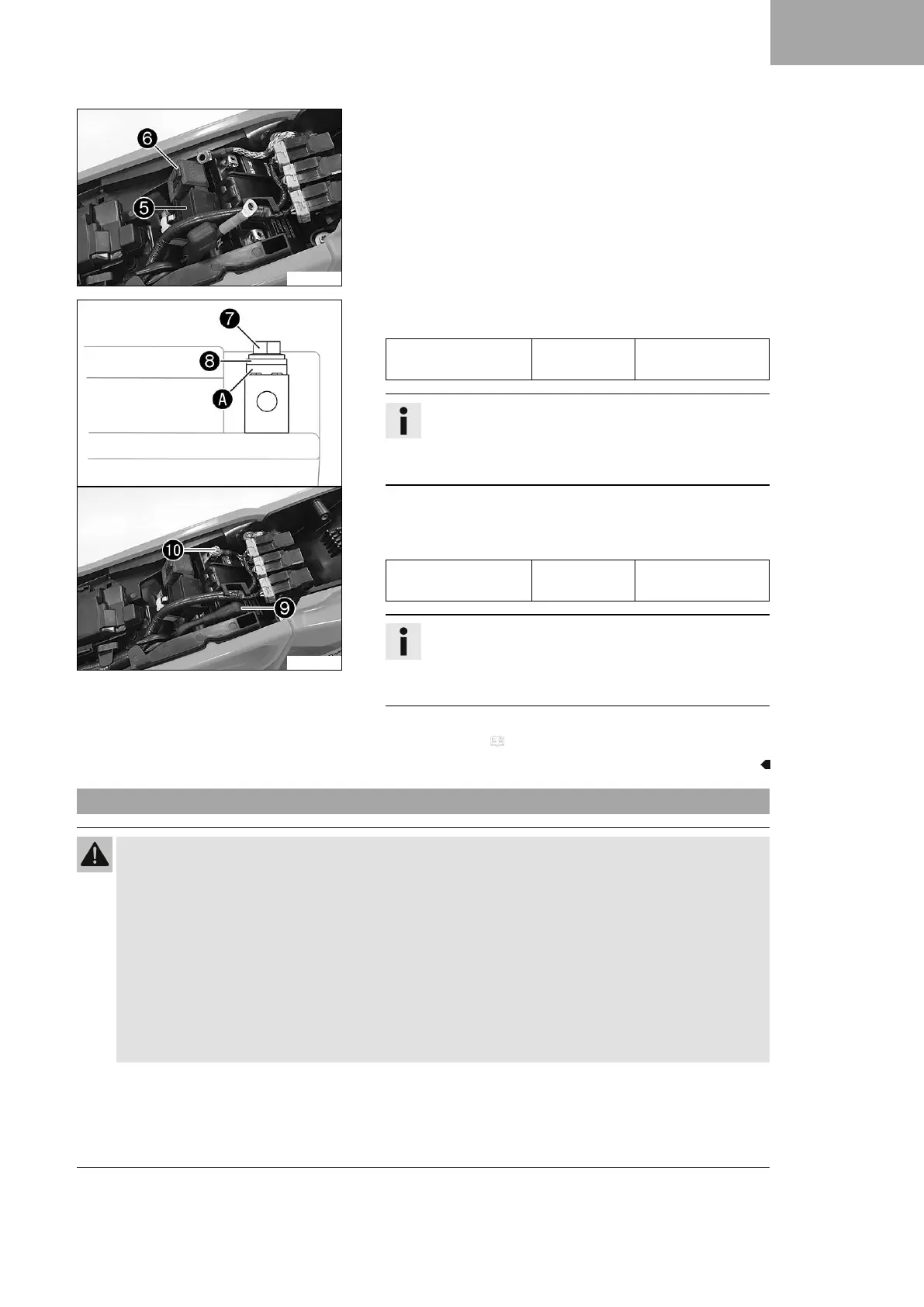

Connect the positive cable to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk
A
must be mounted under screw
7
and
cable lug
8
with the claws toward the battery termi-
nal.
–
Slide positive terminal cover
9
over the positive terminal.
–
Connect negative cable
bk
to the 12-V battery.
Guideline
Screw, battery termi-
nal
M5 2.5 Nm
(1.84 lbf ft)
Info
Contact disk
A
must be mounted under screw
7
and
cable lug
8
with the claws toward the battery termi-
nal.
Finishing work
– Mount the seat. ( p. 26)
3.17 Charging the 12-V battery
Warning
Risk of injury 12 V batteries contain harmful substances.
– Keep 12 V batteries out of the reach of children.
– Keep sparks and open flames away from 12 V batteries.
– Only charge 12 V batteries in well-ventilated rooms.
– Maintain a minimum clearance from inflammable materials when charging 12 V batteries.
Minimum clearance 1 m (3 ft)
– Do not charge deeply discharged 12 V batteries if the charge is already below the minimum voltage.
Minimum voltage before the start of the charge 9 V
– Dispose of 12 V batteries with less than the minimum voltage correctly.
Note
Danger of damage An incorrectly selected charging mode will damage the 12-V battery.
– Always select a charging mode that is compatible with the type of battery.
