WORK 3
21

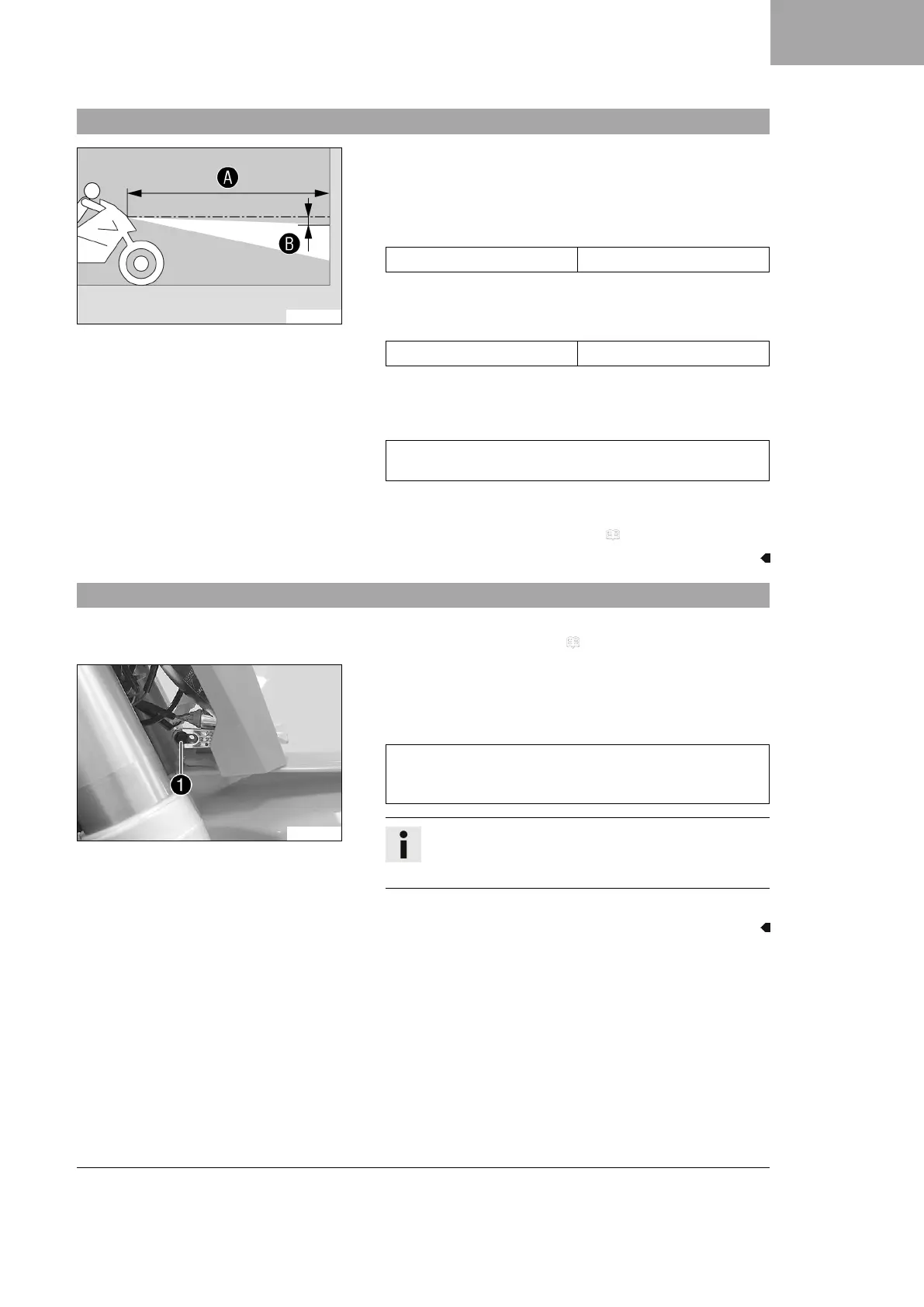

3.5 Checking the headlight setting
400726-10
– Position the vehicle upright on a horizontal surface in front of
a light wall and make a marking at the height of the center of
the low beam headlight.
–
Make another mark at a distance
B
under the first marking.
Guideline
Distance
B
5 cm (2 in)
–
Position the vehicle vertically at a distance
A
away from the
wall.
Guideline
Distance
A
5 m (16 ft)
– The rider now sits down on the motorcycle.
– Switch on the low beam.
– Check the headlight setting.
The boundary between light and dark must be exactly on the
lower mark for a motorcycle with rider.
» If the boundary between light and dark does not meet
specifications:
– Adjust the headlight range. ( p. 21)
3.6 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 21)
V00369-10
Main work
–
Loosen screw
1
.
– Adjust the headlight range by pivoting the headlight.
Guideline
The boundary between light and dark must be exactly on the
lower mark for a motorcycle with rider (instructions on how
to apply the mark: Checking the headlight setting).
Info
A change in weight on the vehicle may require a correc-
tion of the headlight range.
–
Tighten screw
1
.
