3 WORK
28
V01777-10
–

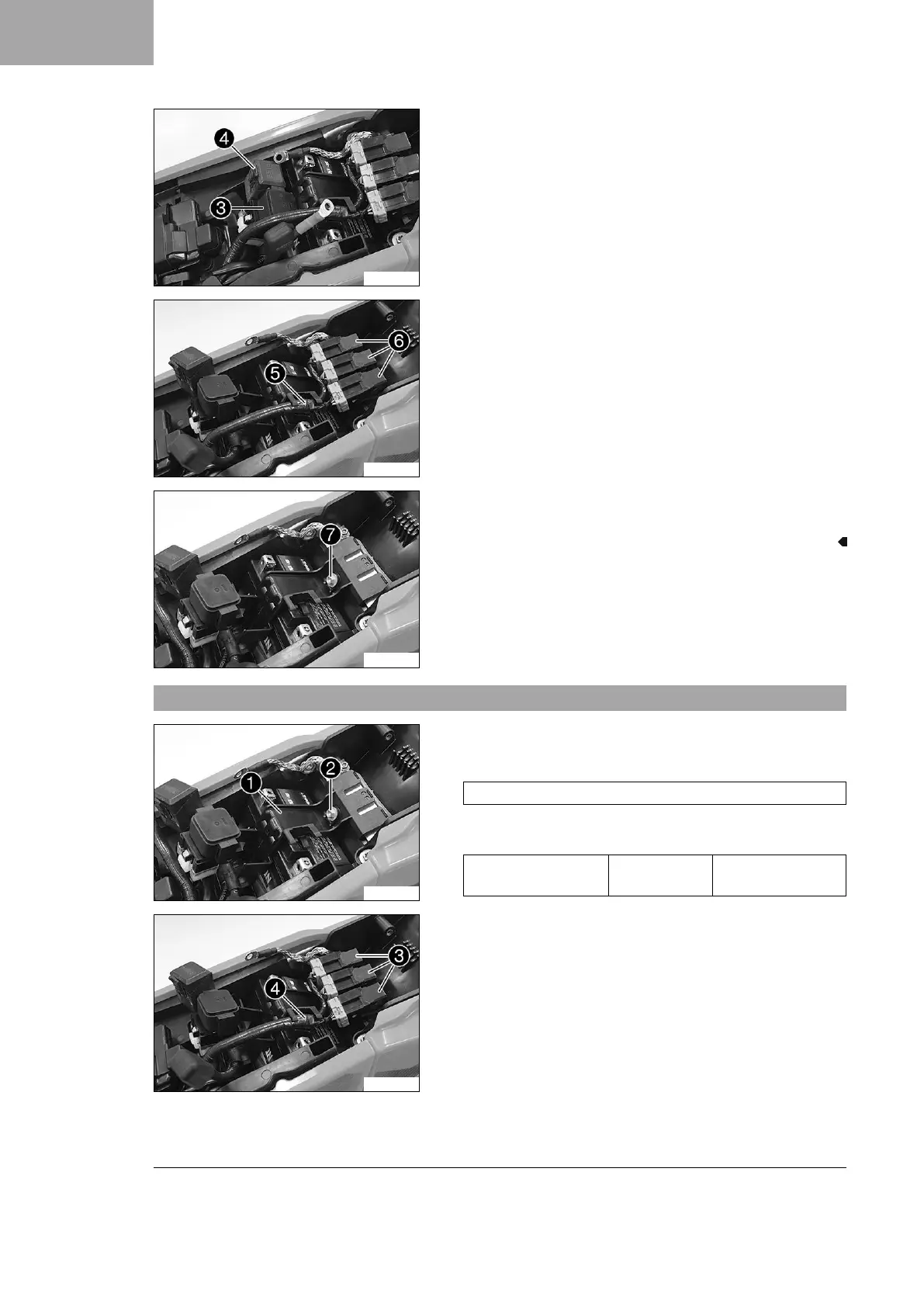

Pull off starter relay
3
and fuse box
4
from the battery
compartment and hang to the side.
V01778-10
–
Detach wiring harness
5
, disconnect relays
6
and hang
them to the side.
V01779-10
–
Remove screw
7
and detach the battery compartment.
– Lift out the 12-V battery.
3.16 Installing the 12-V battery
V01779-11
Main work
– Insert the 12 V battery into the battery compartment with the
terminals facing forward and secure with holding bracket
1
.
12-V battery (HJTZ5S-FP‑C)
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V01778-11
–
Mount relays
3
and attach wiring harness
4
.
