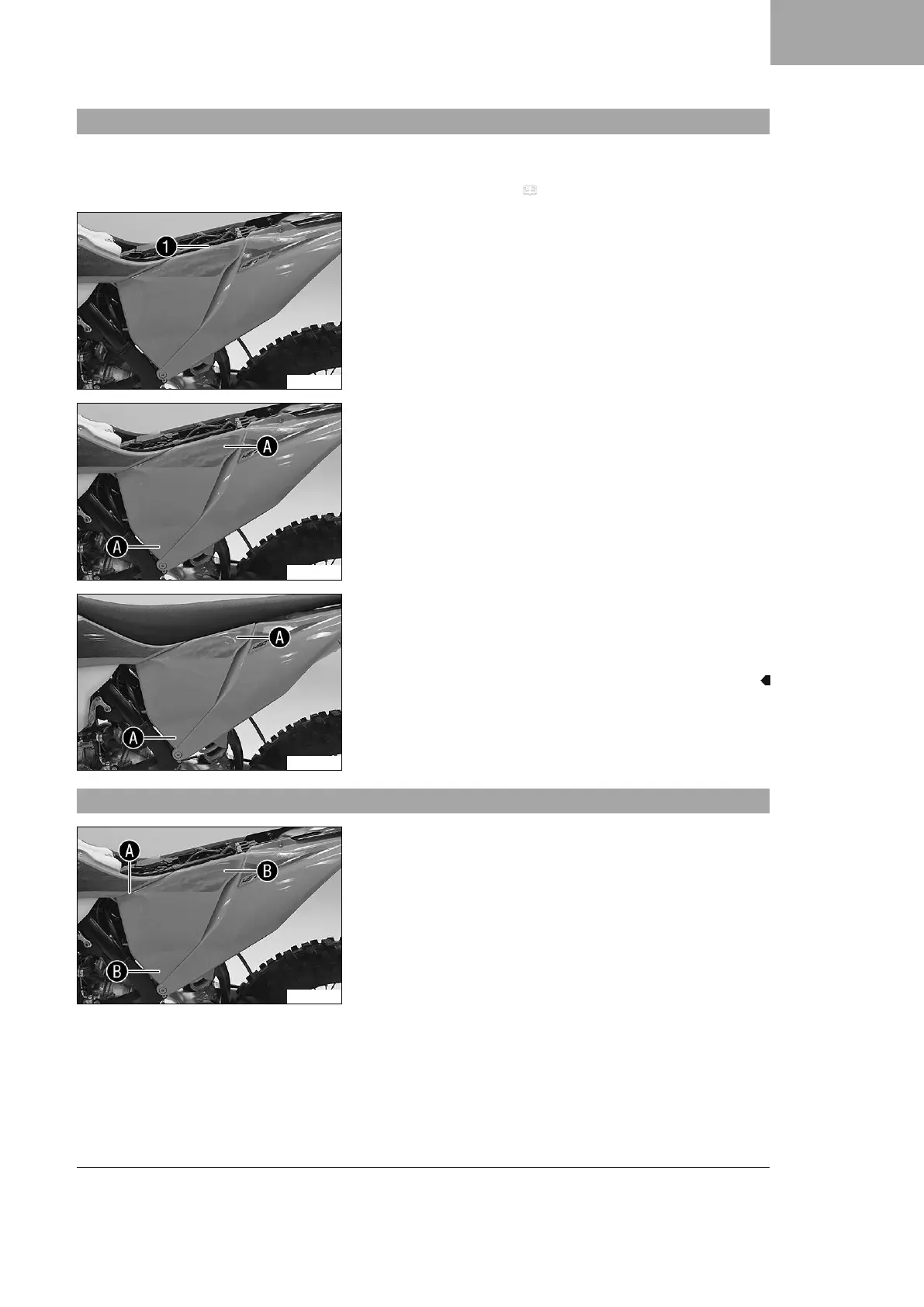

3.18 Removing the air filter box cover
Condition
The air filter box cover is secured.
– Remove the seat. ( p. 25)
V01759-10
–
Remove screw
1
.
V01759-11
–
Pull off the air filter box cover in area
A
laterally and take it
off at the front.
V01760-10
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
A
laterally and take
it off at the front.
3.19 Installing the air filter box cover
V01759-12
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
