WORK 3
23
402556-10
(EXC‑F Six Days)

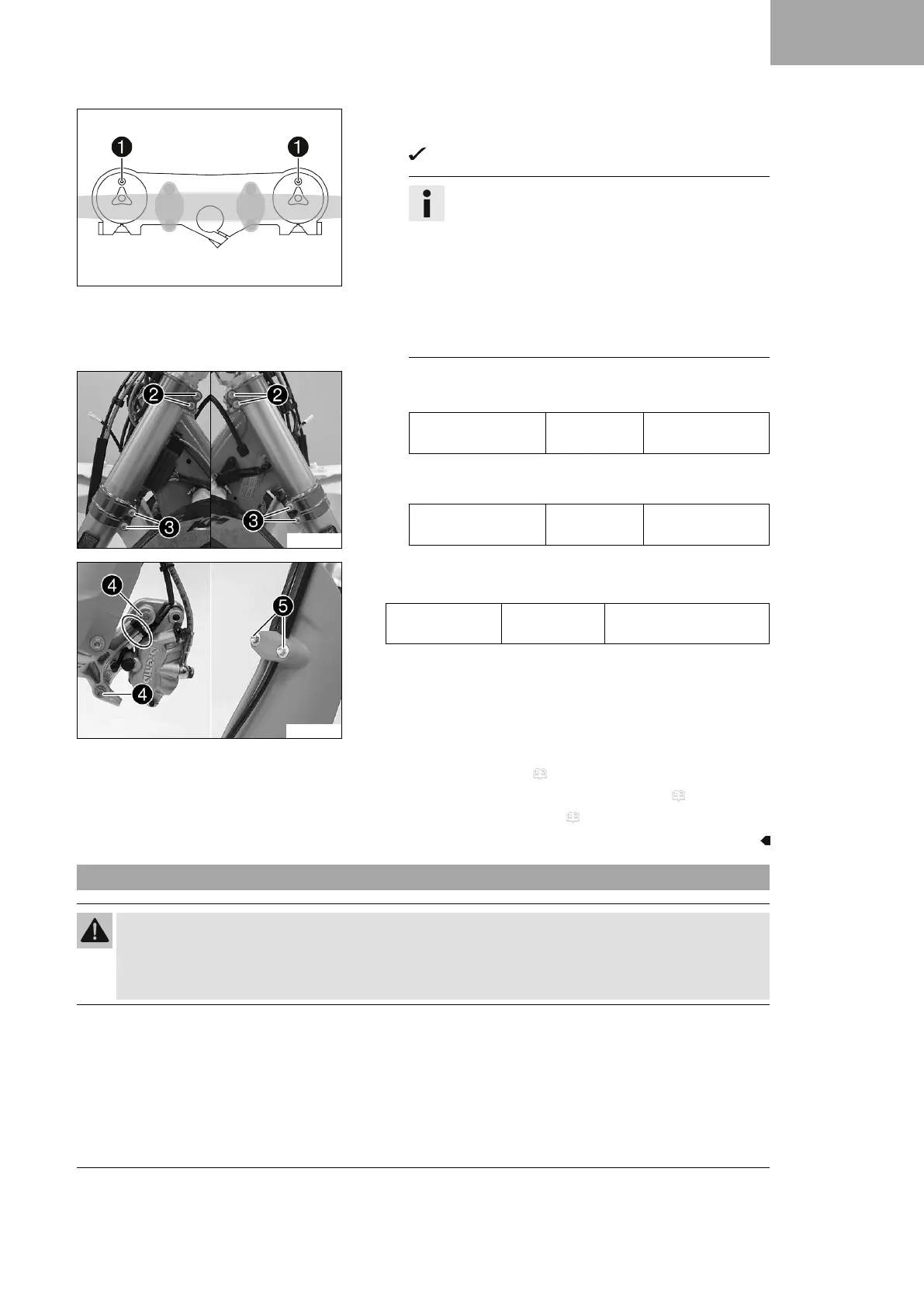

– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COM (white
adjusting screw).
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the
top) must be flush with the upper edge of the upper
triple clamp.
V01784-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 17 Nm
(12.5 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 15 Nm
(11.1 lbf ft)
K00546-10
–
Position the brake caliper, and mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable tie.
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
5
.
Finishing work
– Install the front wheel. ( p. 23)
– Install the headlight mask with the headlight. ( p. 20)
– Check the headlight setting. ( p. 21)
3.9 Installing the front wheel
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
To Next Page
