3 WORK
22

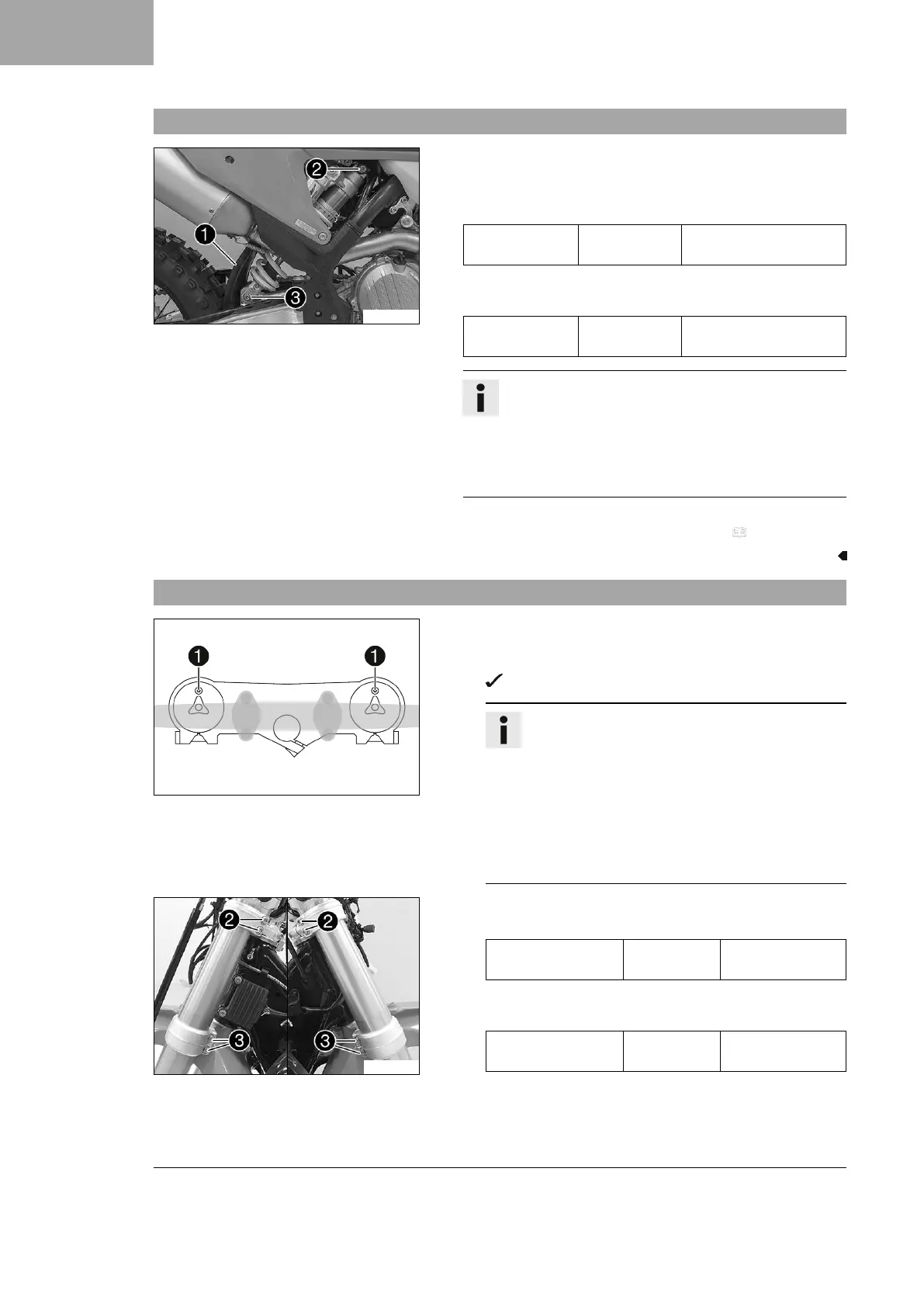

3.7 Installing the shock absorber
K01337-11
Main work
–
Push splash protector
1
to the side and position the shock
absorber. Mount and tighten screw
2
.
Guideline
Screw, top
shock absorber
M12 80 Nm (59 lbf ft)
Loctite
®
2701™
–
Mount and tighten screw
3
.
Guideline
Screw, bottom
shock absorber
M12 80 Nm (59 lbf ft)
Loctite
®
2701™
Info
The heim joint for the shock absorber on the link fork
is Teflon coated. It must not be lubricated with grease,
nor with any other lubricants. Lubricants dissolve the
Teflon coating, thereby drastically reducing the service
life.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 19)
3.8 Installing the fork legs
402556-10
Main work
(EXC‑F EU/US, XCF‑W)
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located in right fork
leg REB (red adjusting screw). The compression
damping is located in left fork leg COMP (white
adjusting screw).
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the
top) must be flush with the upper edge of the upper
triple clamp.
V01756-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 15 Nm
(11.1 lbf ft)
