3 WORK
20
V01802-10
(XCF‑W)
–

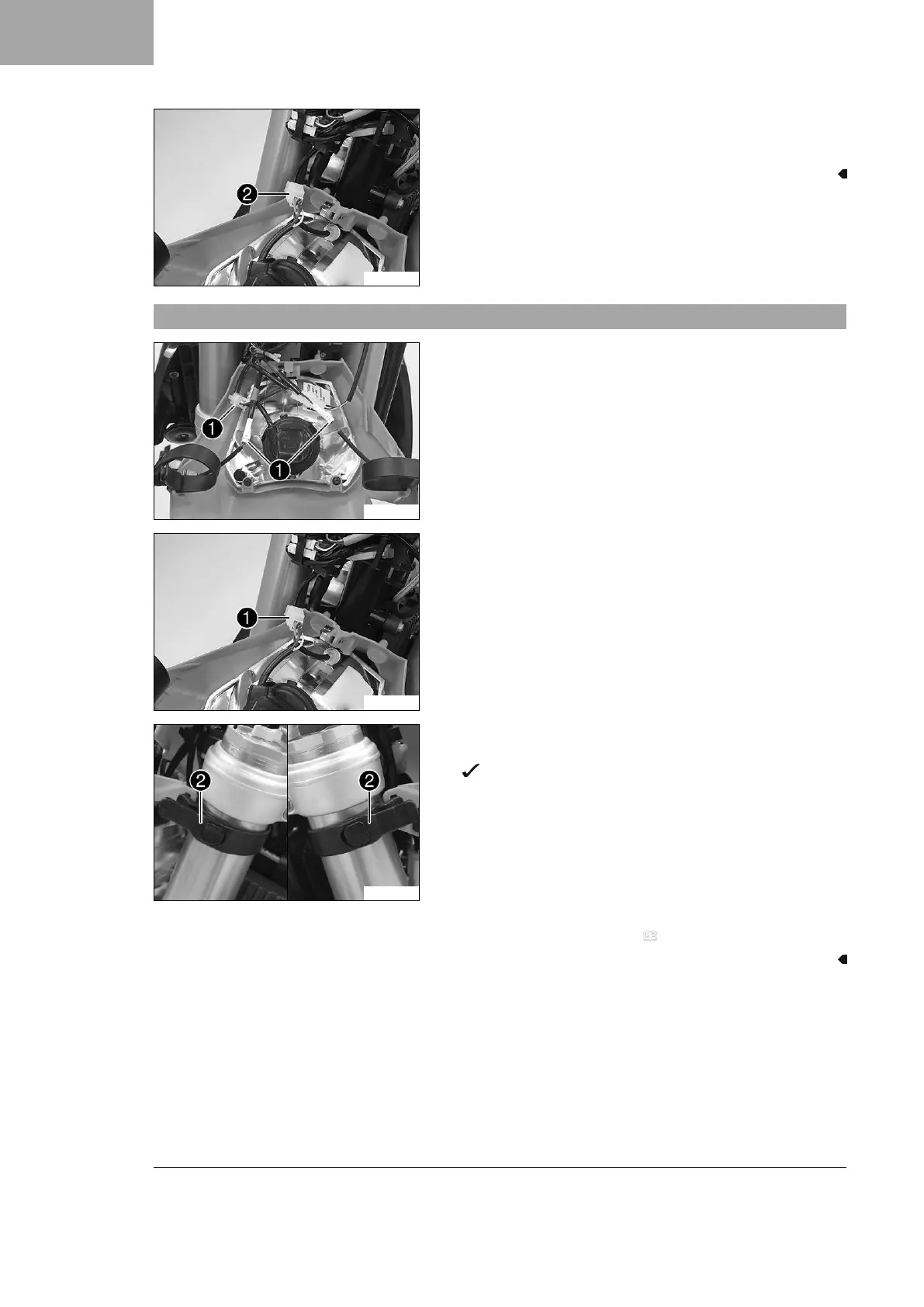

Disconnect plug-in connector
2
and take off the head-
light mask together with the headlight.
3.4 Installing the headlight mask with the headlight
S01328-11
Main work
(All EU models, EXC‑F Six Days, 500 EXC‑F US)
–
Join plug-in connectors
1
.
V01802-11
(XCF‑W)
–
Join plug-in connector
1
.
V01782-11
– Position the headlight mask and secure it with rubber
straps
2
.
The holding lugs engage in the fender.
– Position the brake line and wiring harness in the brake line
guide.
Finishing work
– Check the headlight setting. ( p. 21)
