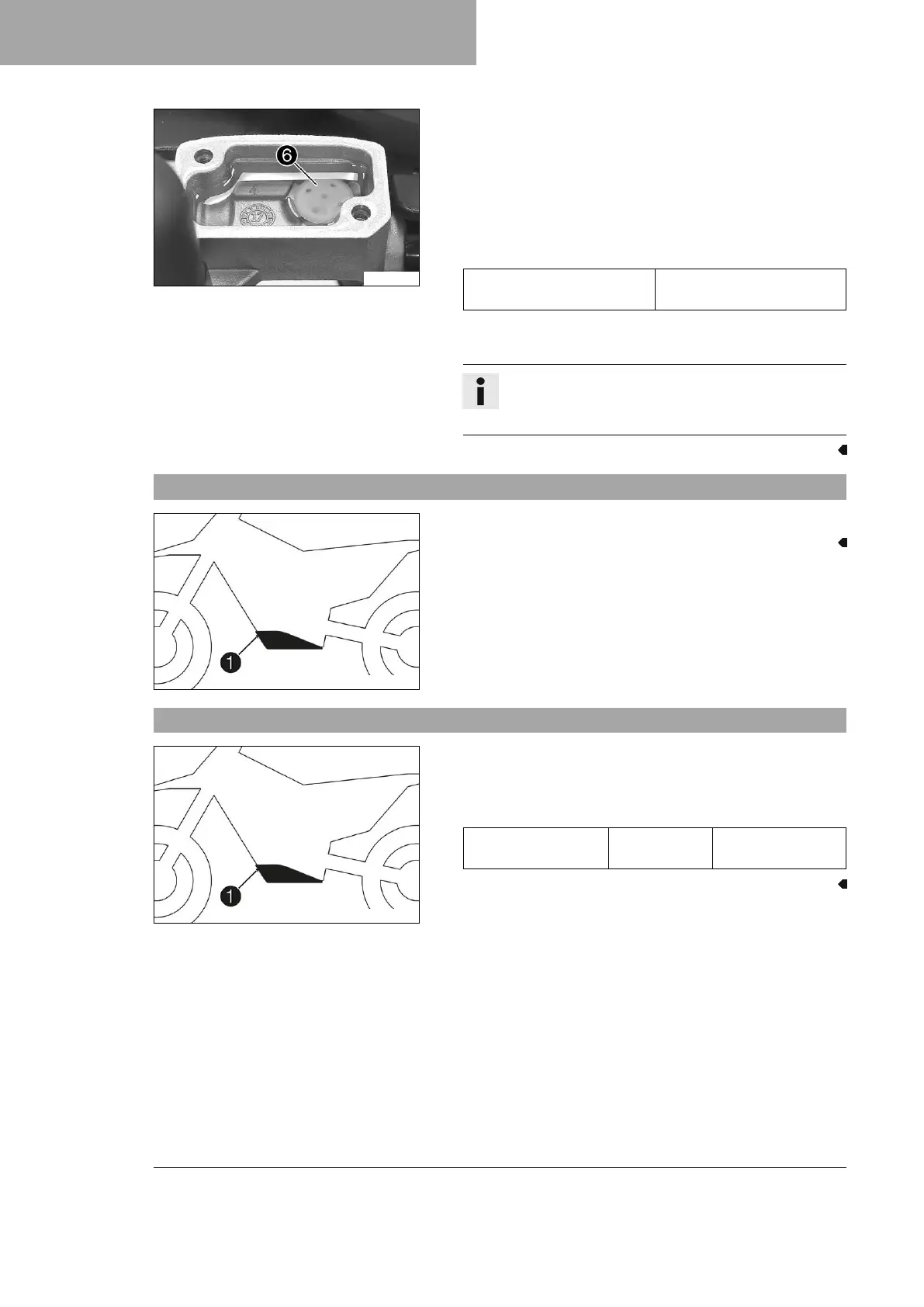

12 SERVICE WORK ON THE CHASSIS
98
E01224-10
– Now inject fluid into the system until it escapes from the
opening
6
of the master cylinder without bubbles.
– Occasionally extract the fluid from the master cylinder reser-
voir to prevent overflowing.
– Remove the bleeding syringe. Mount and tighten the bleeder
screw. Mount the protection cap.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container
rim
4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Immediately clean up any brake fluid that has over-
flowed or spilled with water.
12.47 Removing the engine guard (EXC‑F SIX DAYS EU, XCF‑W)
H01638-10
–
Remove screws
1
and engine guard.
12.48 Installing the engine guard (EXC‑F SIX DAYS EU, XCF‑W)
H01638-10
– Attach the engine guard on the frame at the rear and swing up
at the front.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
