12 SERVICE WORK ON THE CHASSIS
76

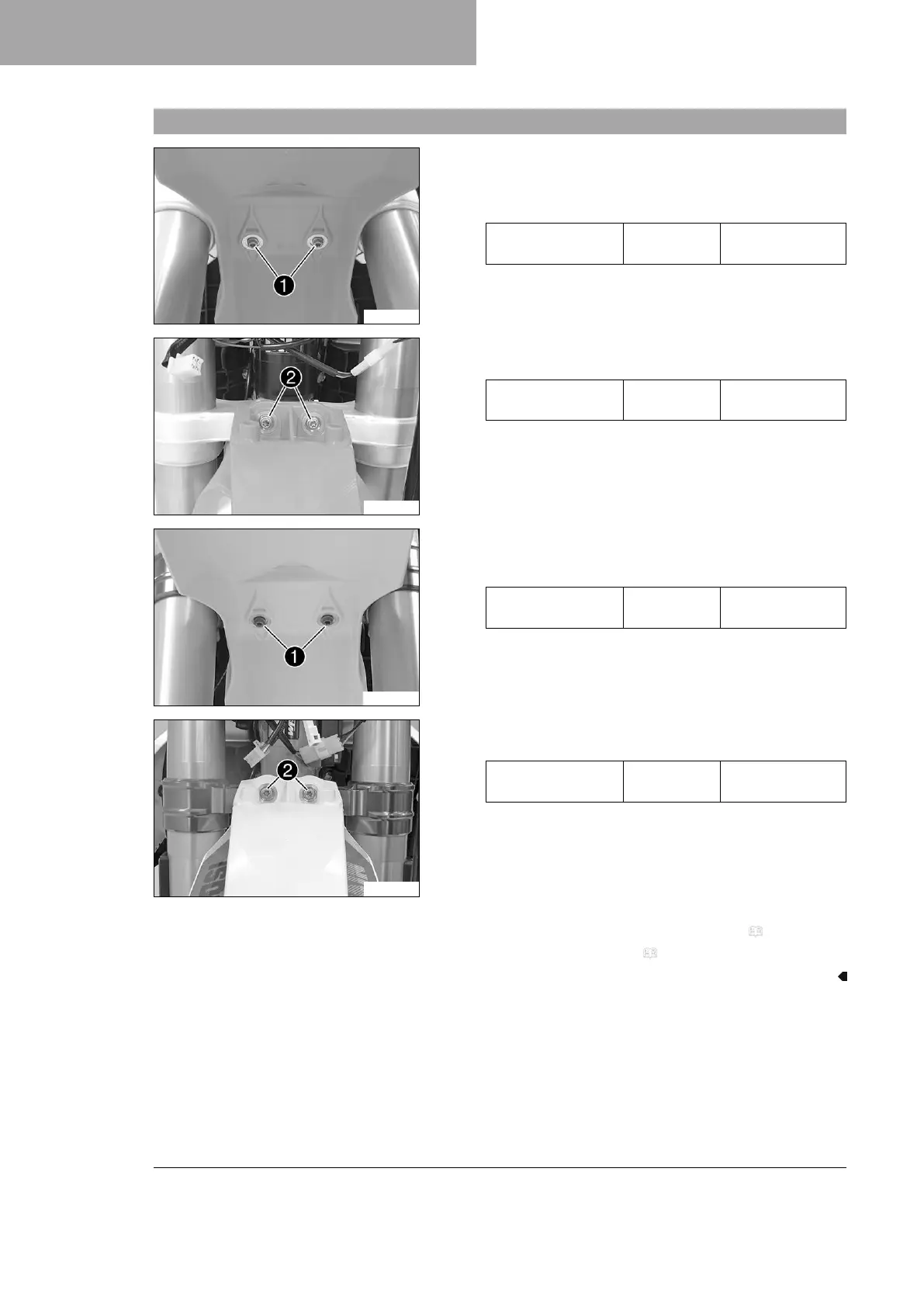

12.18 Installing front fender
V00340-10
Main work
(EXC‑F EU, XCF‑W)
–
Position front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V00341-10
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
K00576-10
(EXC‑F SIX DAYS EU)
–
Position front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
S01321-10
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the headlight mask with the headlight. ( p. 126)
– Check the headlight setting. ( p. 127)
