ELECTRICAL SYSTEM 15
119

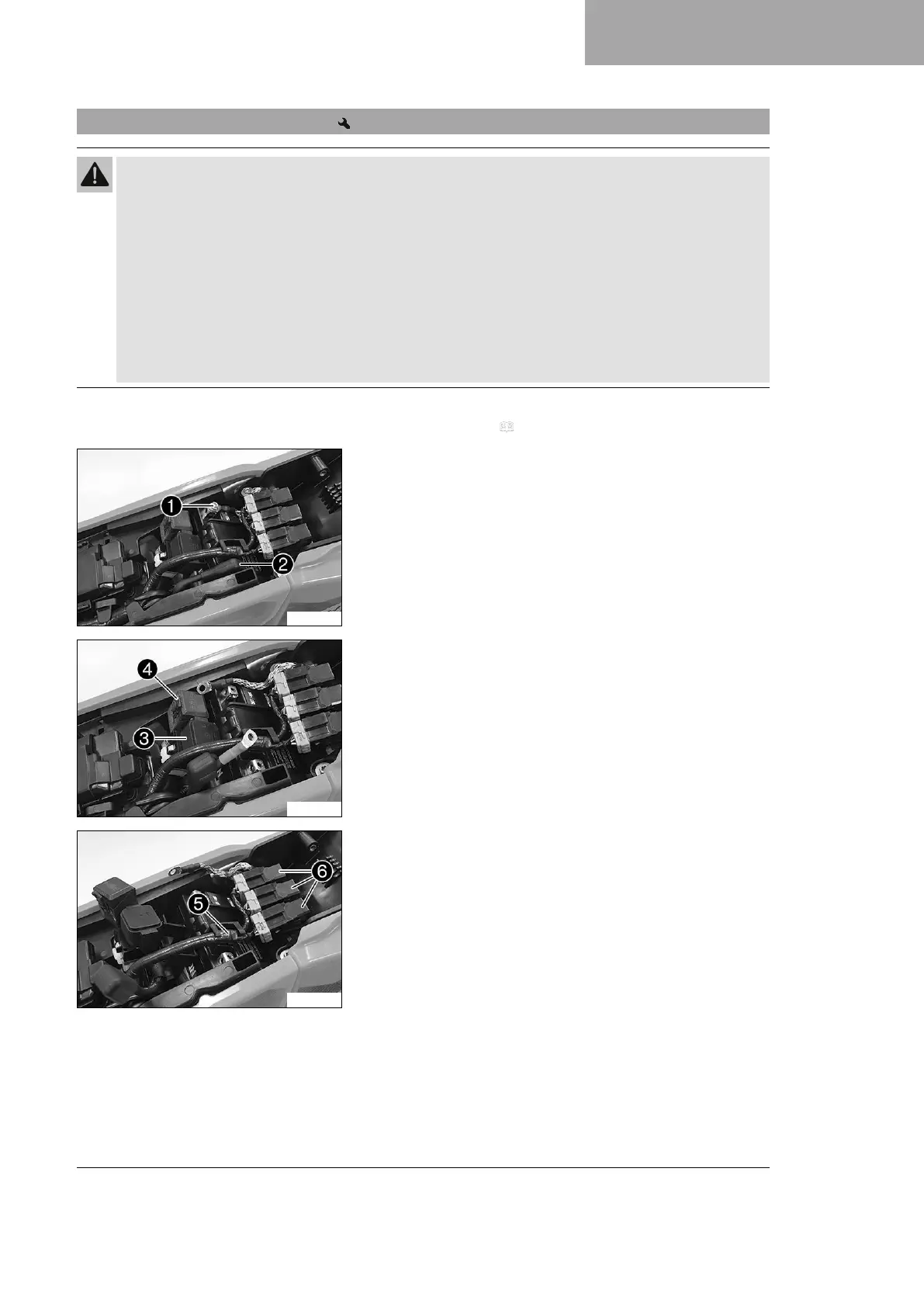

15.1 Removing the 12-V battery
Warning
Risk of injury 12 V batteries contain harmful substances.
– Keep 12 V batteries out of the reach of children.
– Keep sparks and open flames away from 12 V batteries.
– Only charge 12 V batteries in well-ventilated rooms.
– Maintain a minimum clearance from inflammable materials when charging 12 V batteries.
Minimum clearance 1 m (3 ft)
– Do not charge deeply discharged 12 V batteries if the charge is already below the minimum voltage.
Minimum voltage before the start of the charge 9 V
– Dispose of 12 V batteries with less than the minimum voltage correctly.
Preparatory work
– Remove the seat. ( p. 77)
V01776-10
Main work
–
Disconnect negative cable
1
from the 12-V battery.
–
Pull back positive terminal cover
2
and disconnect the posi-
tive cable from the 12-V battery.
V01777-10
–
Pull off starter relay
3
and fuse box
4
from the battery
compartment and hang to the side.
V01778-10
–
Detach wiring harness
5
, disconnect relays
6
and hang
them to the side.
