12 SERVICE WORK ON THE CHASSIS
74
Guideline
Screw, top steering
stem
M8 20 Nm (14.8 lbf ft)
Finishing work
– Check steering head bearing play. ( p. 72)
– Remove the motorcycle from the lift stand. ( p. 63)

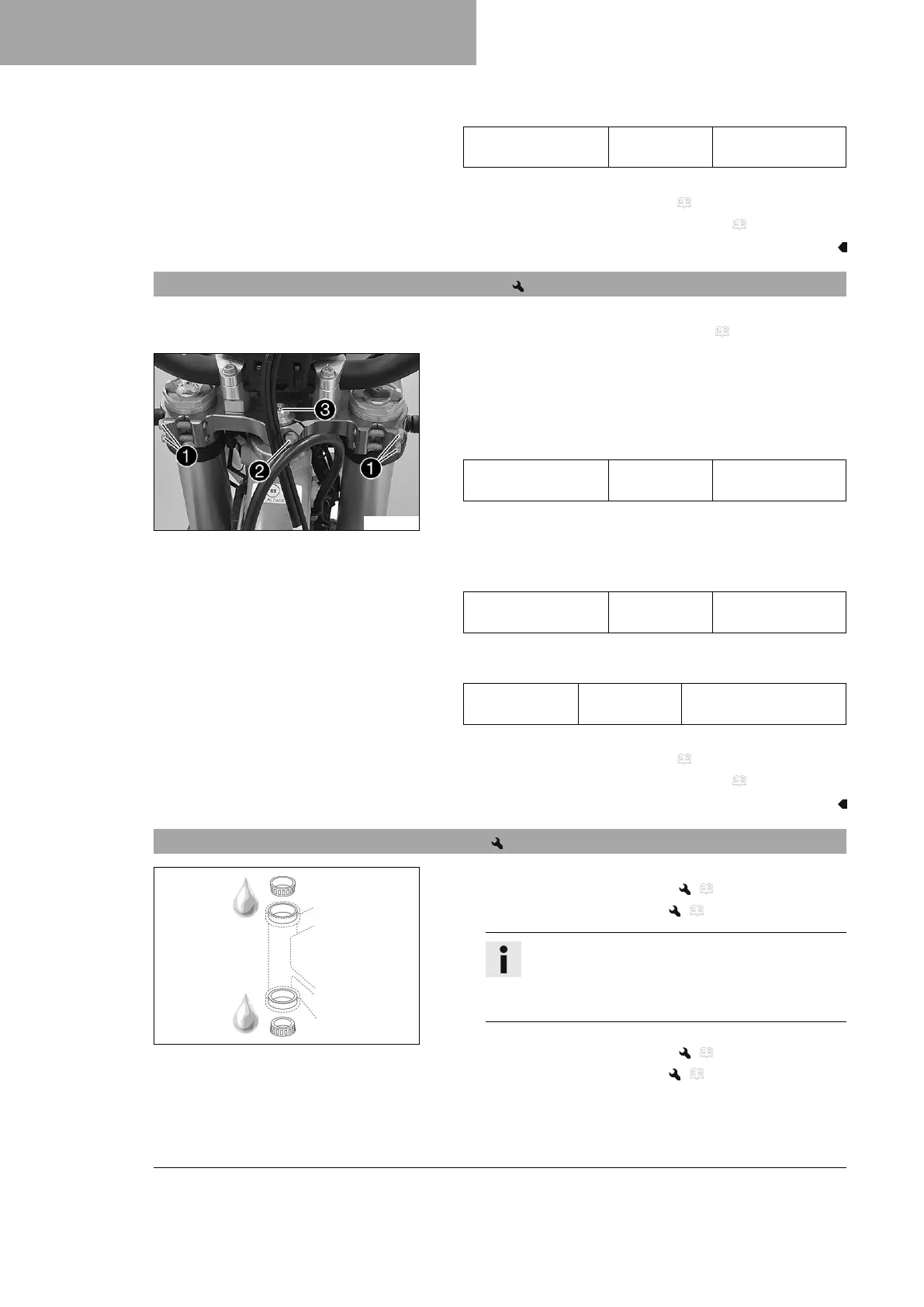

12.15 Adjusting the steering head bearing play (EXC‑F SIX DAYS EU)
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 63)
V01795-10
Main work
–
Loosen screws
1
.
–
Remove screw
2
.
–
Loosen and retighten screw
3
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
–
Tighten screws
1
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
–
Mount and tighten screw
2
.
Guideline
Screw, top
steering stem
M8 17 Nm (12.5 lbf ft)
Loctite
®
243™
Finishing work
– Check steering head bearing play. ( p. 72)
– Remove the motorcycle from the lift stand. ( p. 63)
12.16 Lubricating the steering head bearing
H02387-01
(EXC‑F EU, XCF‑W)
– Remove the lower triple clamp. ( p. 67)
– Install the lower triple clamp. ( p. 69)
Info
The steering head bearing is cleaned and lubri-
cated in the course of removal and installation of
the lower triple clamp.
(EXC‑F SIX DAYS EU)
– Remove the lower triple clamp. ( p. 68)
– Install the lower triple clamp. ( p. 71)
