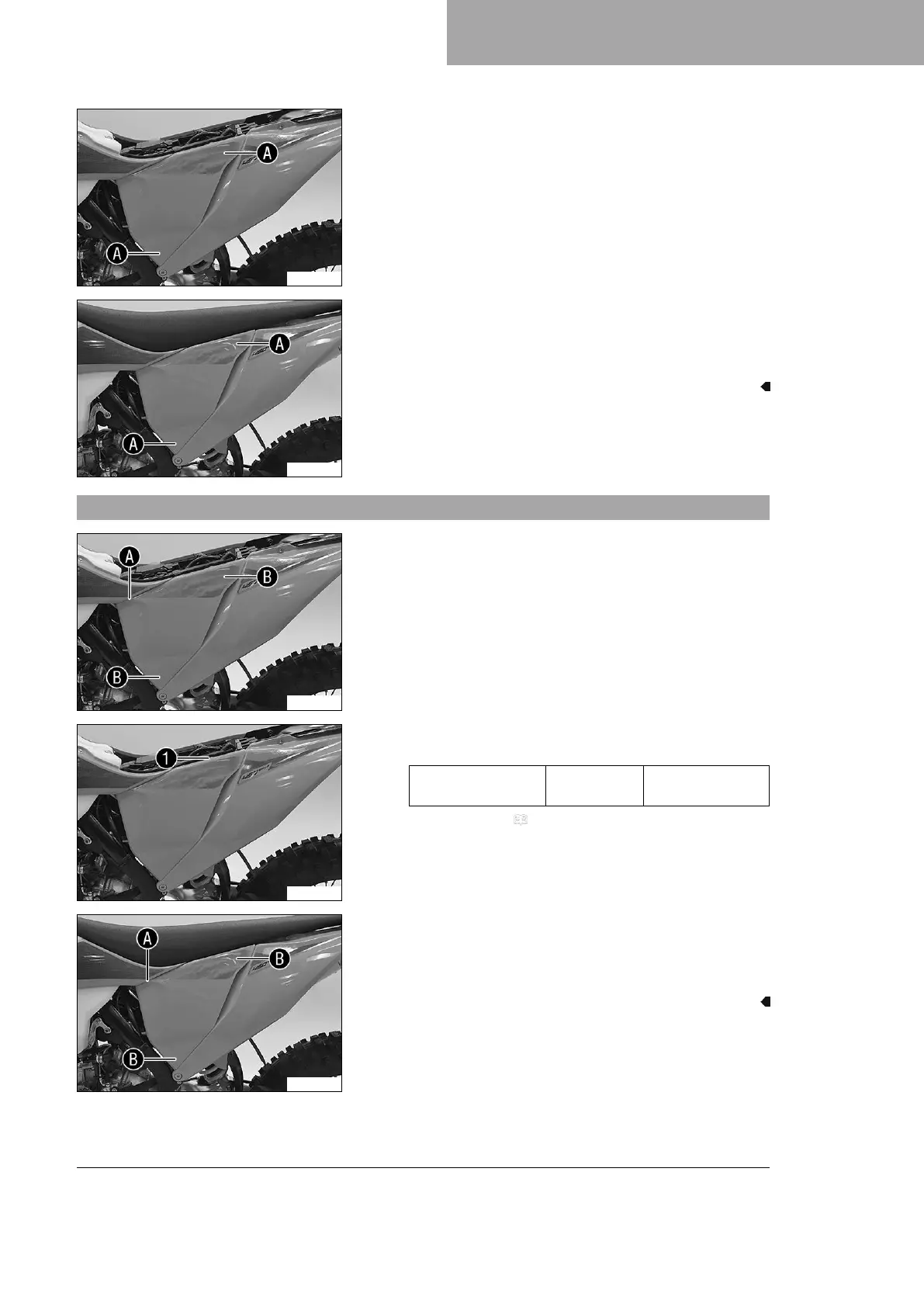

SERVICE WORK ON THE CHASSIS 12
79
V01759-11
–
Pull off the air filter box cover in area
A
laterally and take it
off at the front.
V01760-10
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
A
laterally and take
it off at the front.
12.24 Installing the air filter box cover
V01759-12
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
V01759-10
–
Mount and tighten screw
1
.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
– Mount the seat. ( p. 78)
V01760-11
Condition
The air filter box cover is not secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
