CONTROLS 6
17
E00821-10
(XCF‑W)

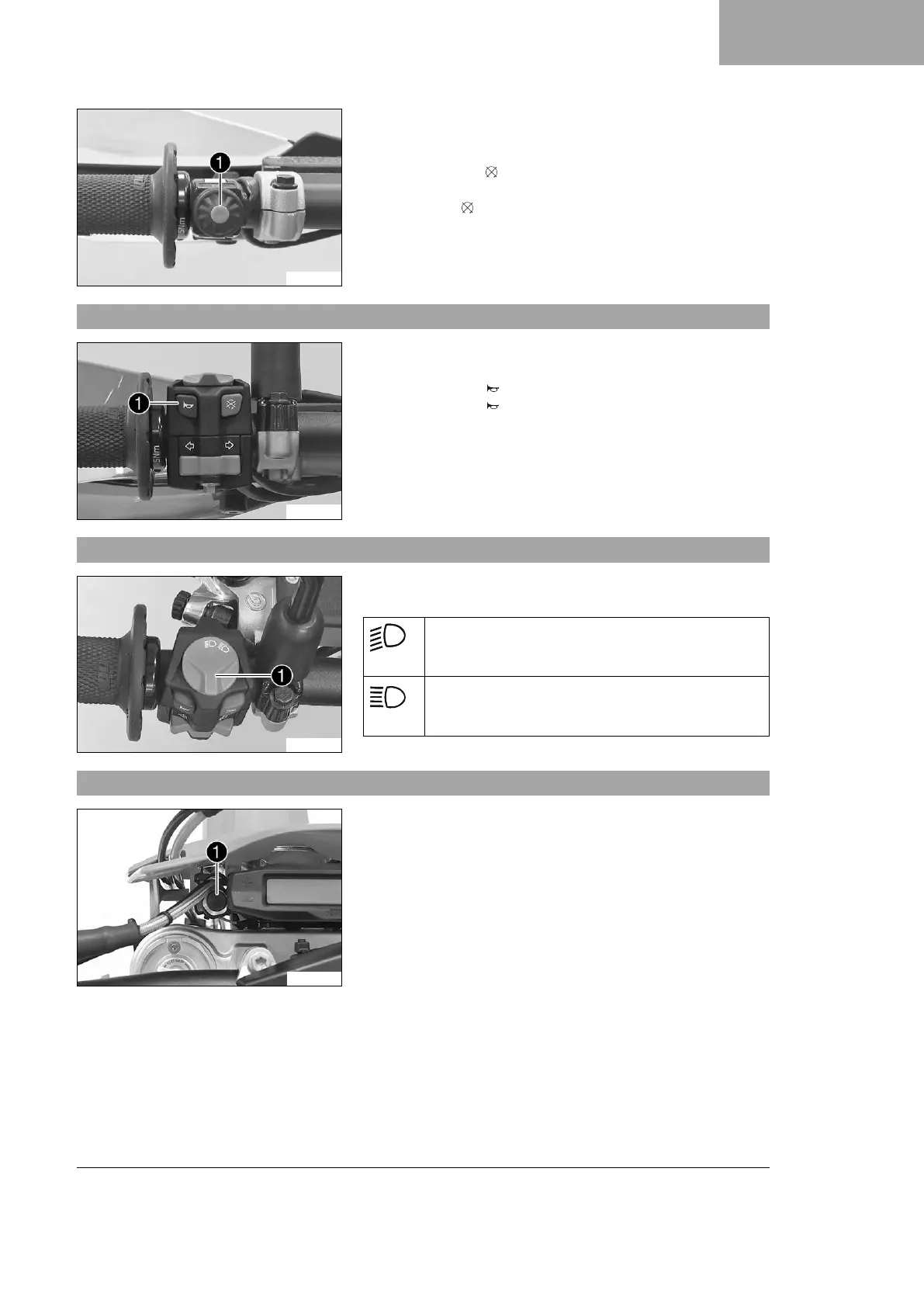

The stop button
1
is fitted on the left side of the handlebar.
Possible states
• The stop button is in the basic position – In this position,
the ignition circuit is closed and the engine can be started.
• Stop button pressed – In this position, the ignition circuit
is interrupted, a running engine stops, and a non-running
engine will not start.
6.5 Horn button (All EU models)
S01303-10
Horn button
1
is fitted on the left side of the handlebar.
Possible states
• The horn button is in the basic position
• The horn button is pressed – The horn is operated in this
position.
6.6 Light switch (All EU models)
S01307-10
The light switch
1
is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch is in the central posi-
tion. In this position, the low beam and tail light are
switched on.
High beam on – The light switch is turned counter-
clockwise. In this position, the high beam and the tail
light are switched on.
6.7 Light switch (XCF‑W)
V01748-10
The light switch
1
is located to the left of the combination
instrument.
Possible states
• Light off – Light switch is pressed in up to the stop. In this
position, the light is switched off.
• Light on – Light switch is pulled out to the stop. In this posi-
tion, the low beam and the tail light are switched on.
