15 ELECTRICAL SYSTEM
128
The boundary between light and dark must be exactly on the
lower mark for a motorcycle with rider.
» If the boundary between light and dark does not meet
specifications:
– Adjust the headlight range. ( p. 128)

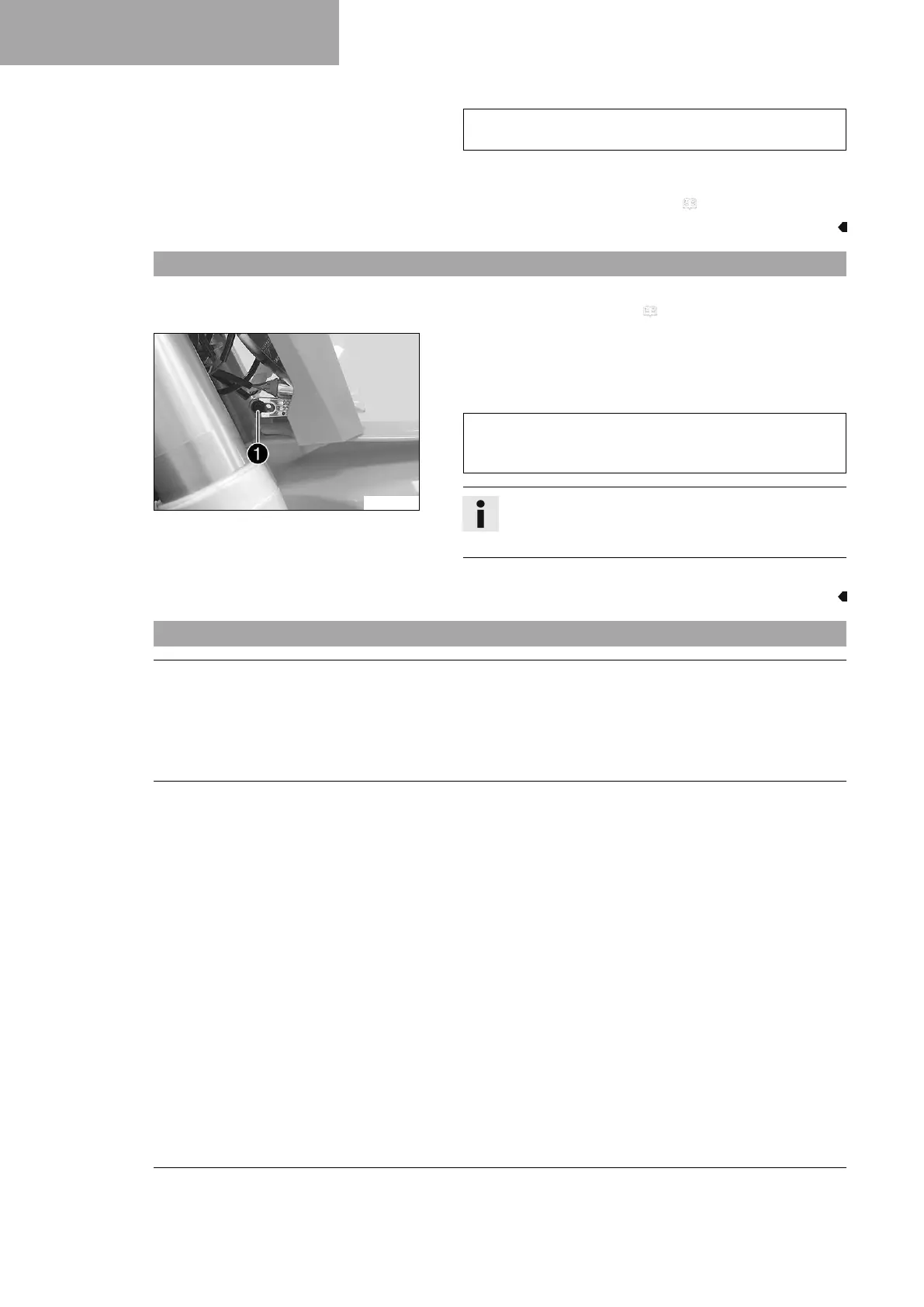

15.10 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 127)
V00369-10
Main work
–
Loosen screw
1
.
– Adjust the headlight range by pivoting the headlight.
Guideline
The boundary between light and dark must be exactly on the
lower mark for a motorcycle with rider (instructions on how
to apply the mark: Checking the headlight setting).
Info
A change in weight on the vehicle may require a correc-
tion of the headlight range.
–
Tighten screw
1
.
15.11 Changing the turn signal bulb (All EU models)
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
