12 SERVICE WORK ON THE CHASSIS
78
H02218-10

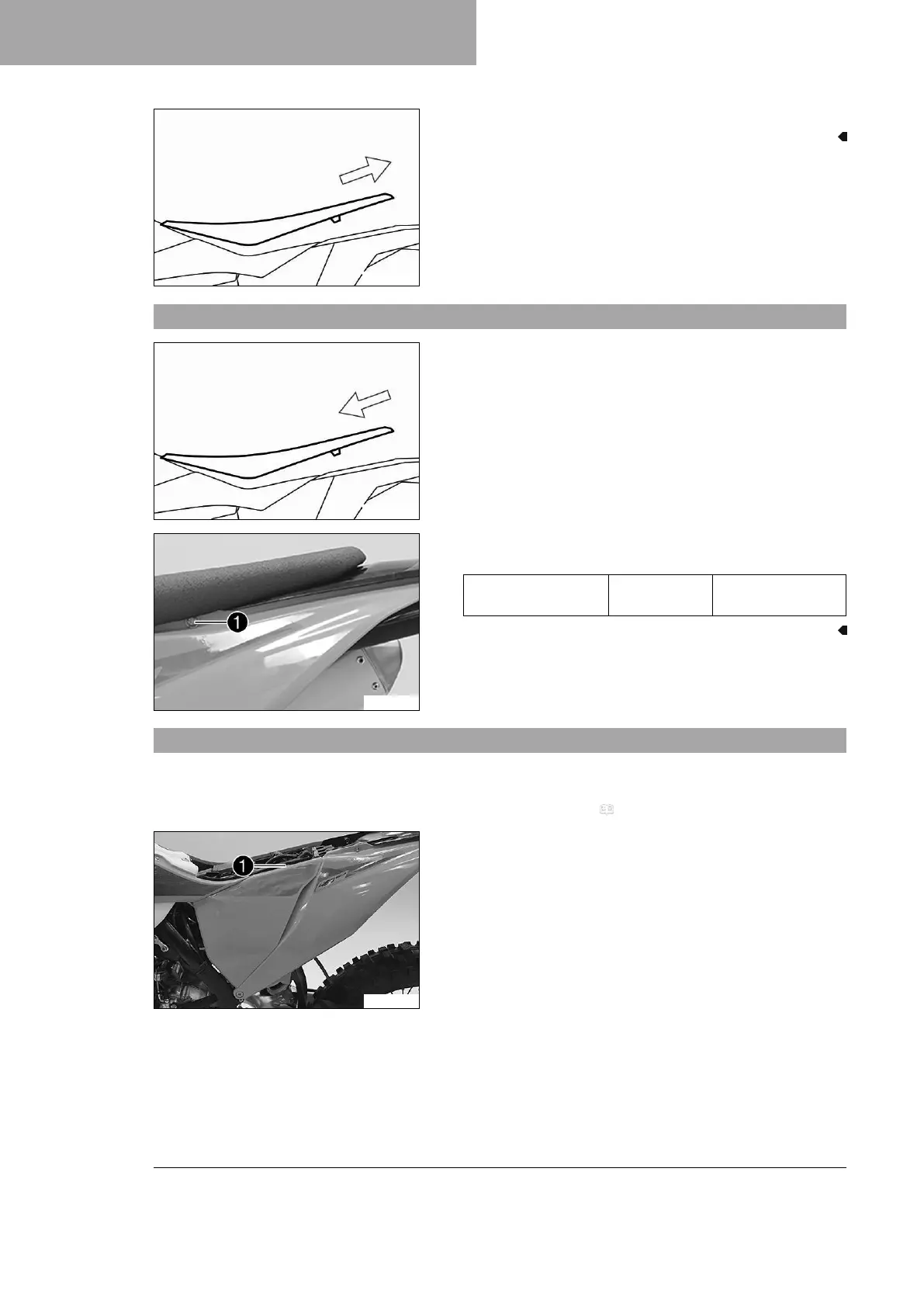

– Raise the rear of the seat, pull the seat back, and lift it off.
12.22 Mounting the seat
H02218-11
–
Mount the front of the seat on the collar bushings of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure the seat is locked in correctly.
S03480-10
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
12.23 Removing the air filter box cover
Condition
The air filter box cover is secured.
– Remove the seat. ( p. 77)
V01759-10
–
Remove screw
1
.
