12 SERVICE WORK ON THE CHASSIS
94

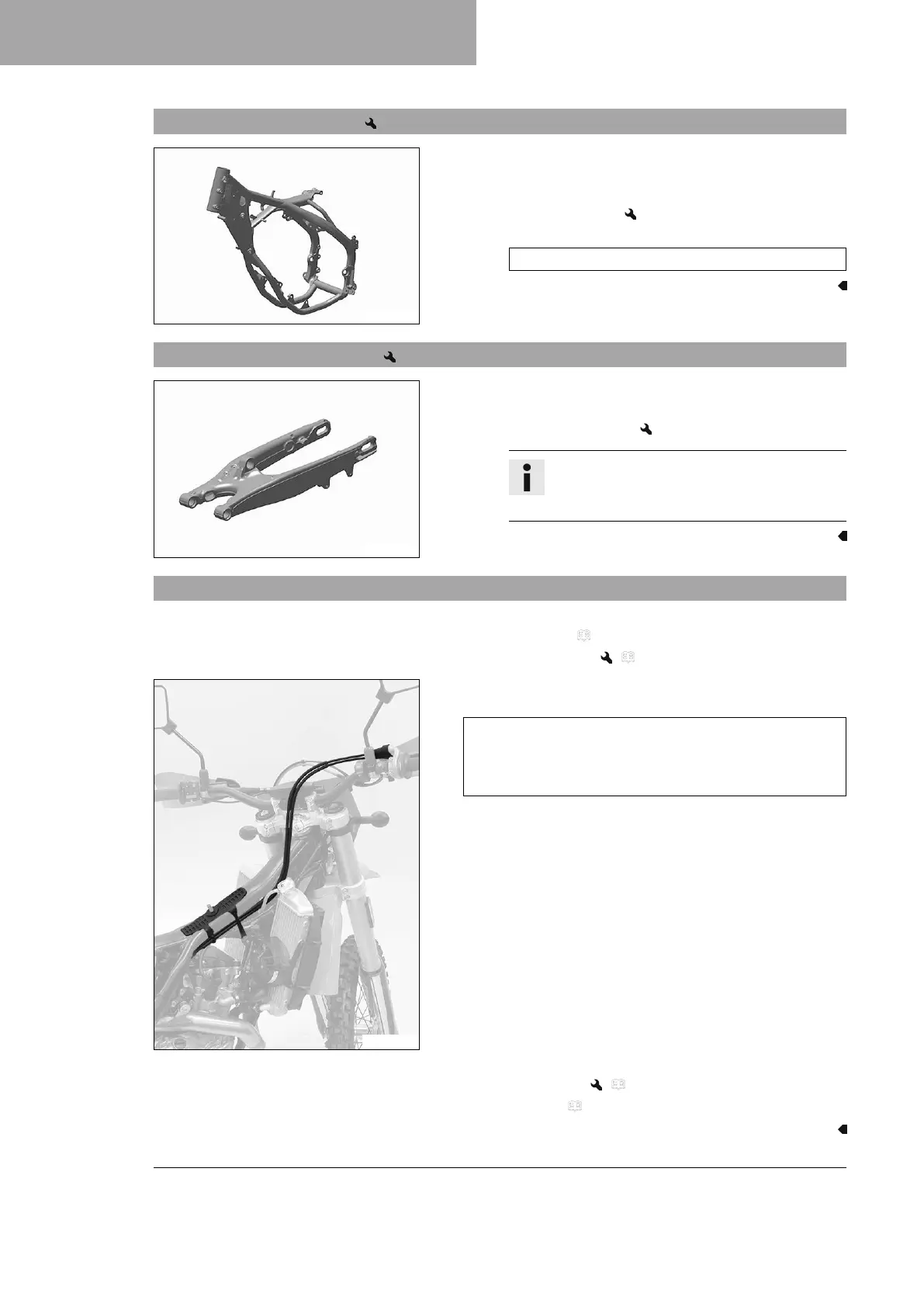

12.40 Checking the frame
S01316-10
– Check the frame for damage, cracking, and deformation.
» If the frame shows signs of damage, cracking, or deforma-
tion:
– Change the frame.
Guideline
Repairs on the frame are not permitted.
12.41 Checking the link fork
S01317-10
– Check the link fork for damage, cracking, and deformation.
» If the link fork exhibits damage, cracking, or deformation:
– Change the link fork.
Info
Always replace a damaged link fork. Repairing
the link fork is not authorized by KTM.
12.42 Checking the throttle cable routing
Preparatory work
– Remove the seat. ( p. 77)
– Remove the fuel tank. ( p. 85)
H01695-10
Main work
– Check the throttle cable routing.
Both throttle cables must be routed, side by side, on the
back of the handlebars and above the fuel tank bracket, to
the throttle valve body. Both throttle cables must be secured
behind the rubber strap of the fuel tank support.
» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 86)
– Mount the seat. ( p. 78)
