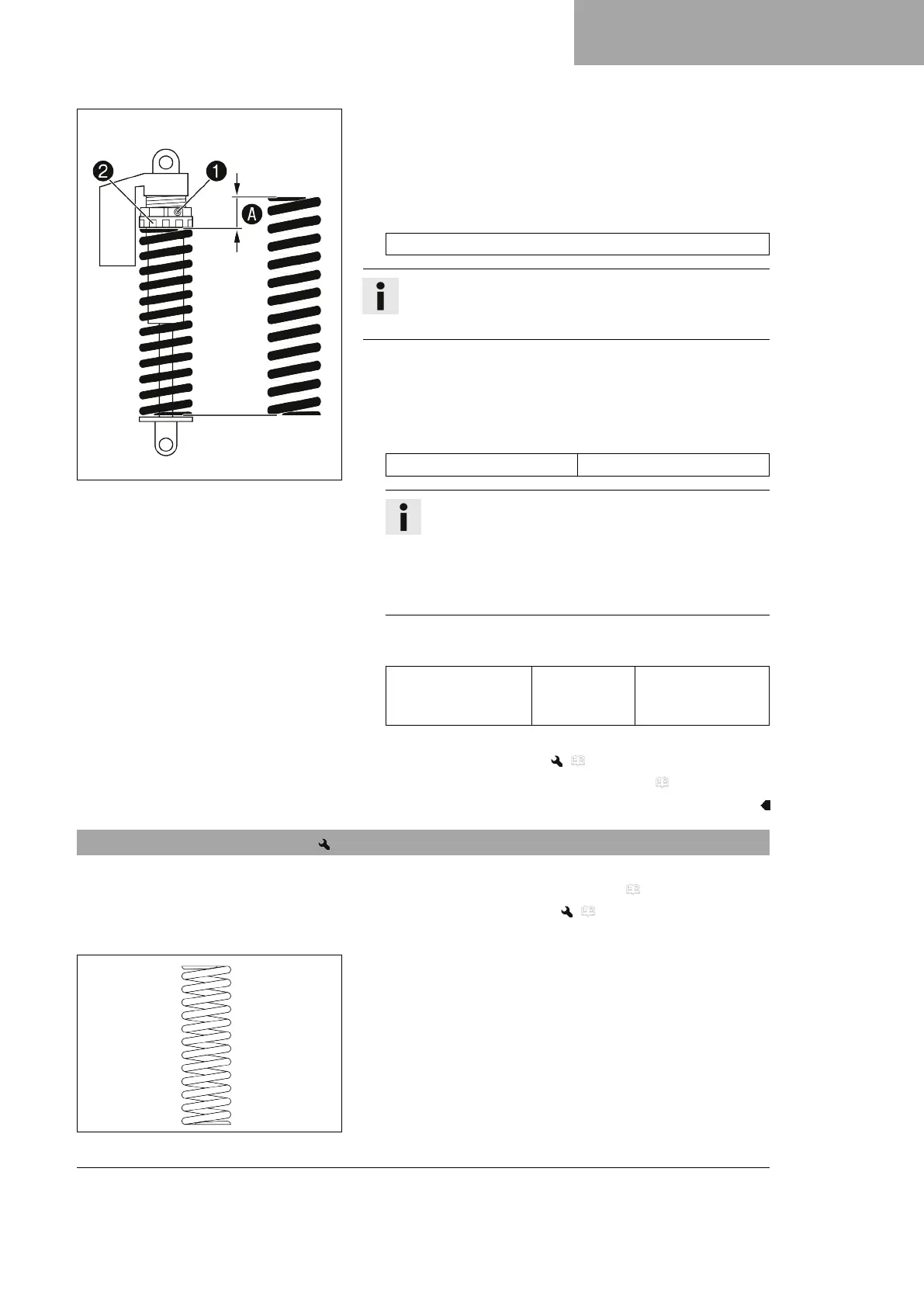

Page #41 background image
TUNING THE CHASSIS 10
39
402659-10
Main work
Measure the full spring length while it is under tension and
note down the value.
Loosen screw
1
.
Turn adjusting ring
2
until the spring is no longer under ten-
sion.
Hook wrench (90129051000)
Info
If the spring cannot be fully released, the spring must be
removed to accurately measure the spring length.
Measure the total spring length while the spring is not under
tension.
Tension the spring by turning adjusting ring
2
to specified
dimension
A
.
Guideline
Spring preload 11 mm (0.43 in)
Info
The spring preload is the difference between the
relaxed spring length and the tensioned spring length.
Depending on the static sag and/or the riding sag, it
may be necessary to increase or decrease the spring
preload.
Tighten screw
1
.
Guideline
Screw, shock
absorber adjusting
ring
M5 5 Nm (3.7 lbf ft)
Finishing work
Install the shock absorber. ( p. 56)
Remove the motorcycle from the lift stand. ( p. 45)
10.11 Adjusting the riding sag
Preparatory work
Raise the motorcycle with a lift stand. ( p. 45)
Remove the shock absorber. ( p. 55)
After removing the shock absorber, clean it thoroughly.
B00292-10
Main work
Choose and mount a suitable spring.
