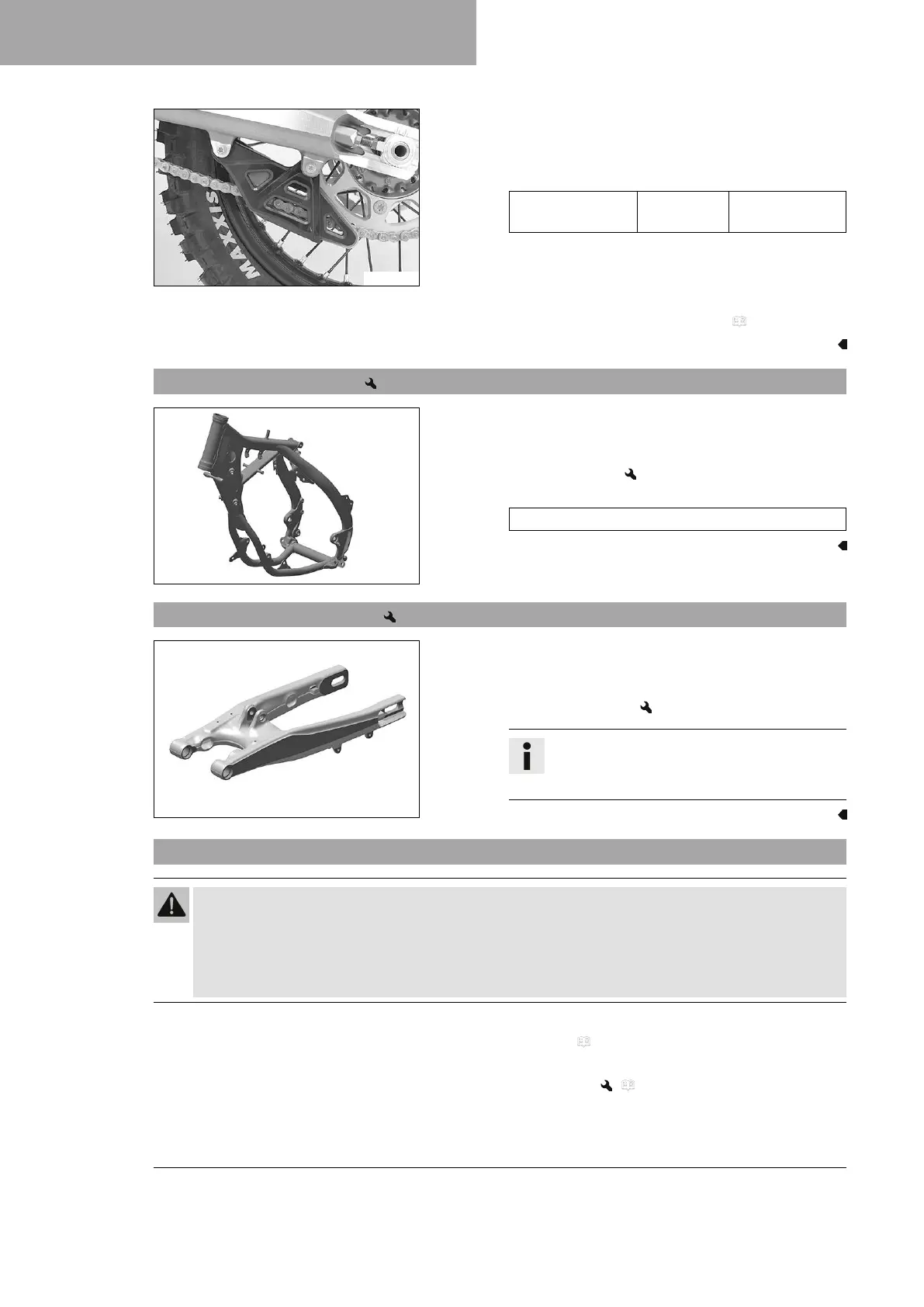

11 SERVICE WORK ON THE CHASSIS
68
V00861-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
11.37 Checking the frame
V00858-01
– Check the frame for damage, cracks, and deformation.
» If the frame shows signs of damage, cracks, or deforma-
tion:
– Change the frame.
Guideline
Repairs on the frame are not permitted.
11.38 Checking the link fork
V00857-01
– Check the link fork for damage, cracking, and deformation.
» If the link fork shows signs of damage, cracking, or defor-
mation:
– Change the link fork.
Info
Always replace a damaged link fork. Repairing
the link fork is not authorized by KTM.
11.39 Checking the throttle cable routing
Warning
Danger of accidents The throttle cable may slip out of the guide if routed incorrectly.
The throttle slide will then no longer be closed and the speed can no longer be controlled.
– Make sure that the throttle cable routing and the play in throttle cable complies with the specifica-
tion.
Preparatory work
– Remove the seat. ( p. 56)
– Turn tap handle of the fuel tap to the OFF position.
– Remove the fuel tank. ( p. 60)
