TUNING THE CHASSIS 10
41
Info
Check or adjust the air pressure under the same conditions at the earliest 5 minutes after switching off
the engine.
The air suspension is located in the left fork leg. The rebound damping is located in the right fork leg.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 45)
S03413-10
Main work
–

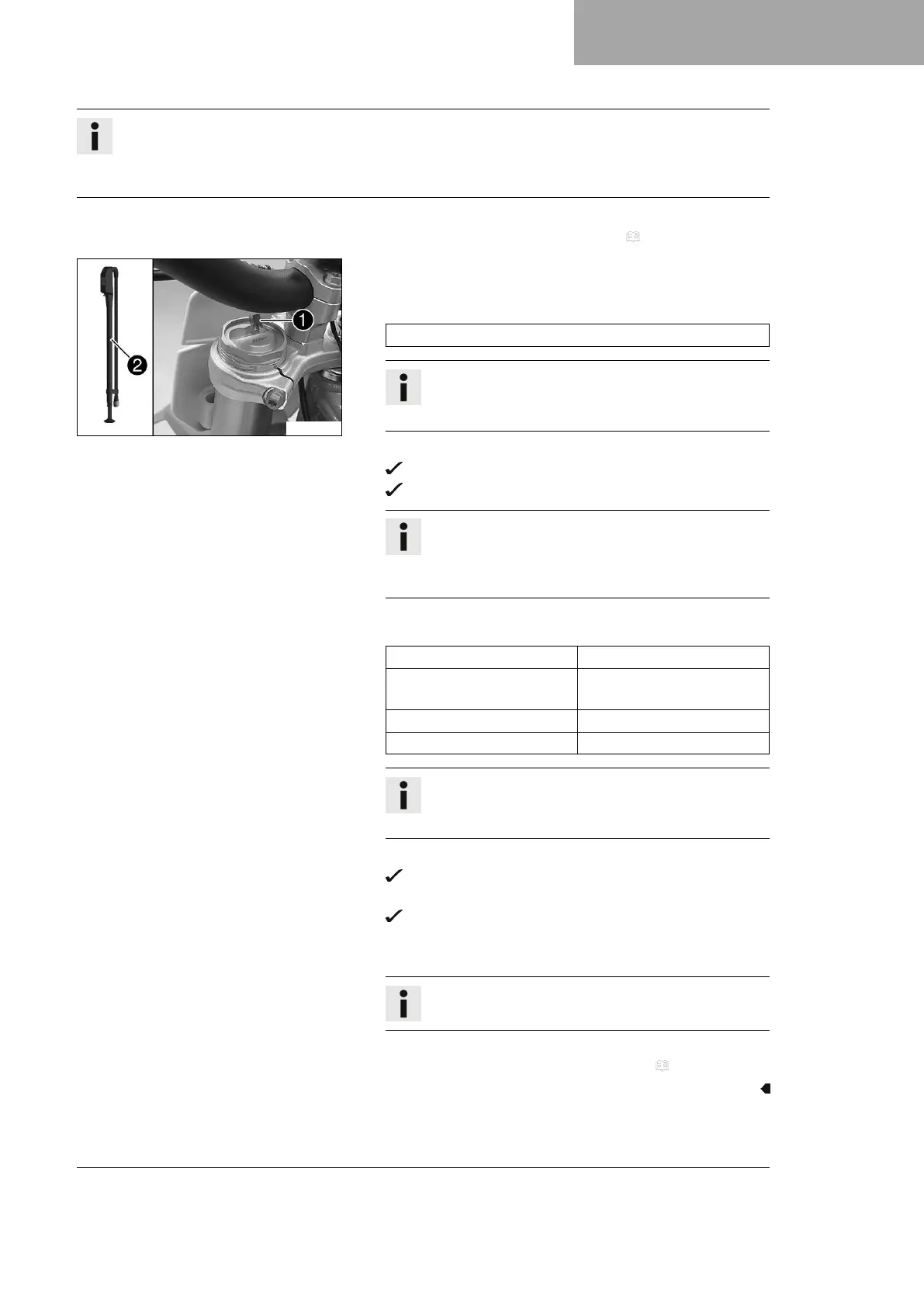

Remove protection cap
1
.
–
Push together fork airpump
2
fully.
Fork airpump (79412966100)
Info
The fork airpump is included as part of the motorcycle's
accessory pack.
– Connect the fork airpump to the left fork leg.
The fork airpump switches on automatically.
A little air escapes from the fork leg when connecting.
Info
This is due to the volume of the hose and not due to a
defect in the fork airpump or the fork.
Read the accompanying KTM PowerParts instructions.
– Adjust the air pressure as specified.
Guideline
Air pressure 5 bar (73 psi)
Gradual changing of the air
pressure in steps of
0.2 bar (3 psi)
Minimum air pressure 4 bar (58 psi)
Maximum air pressure 8 bar (116 psi)
Info
Never adjust the air pressure to a value outside the
stated range.
– Disconnect the fork airpump from the left fork leg.
When disconnecting, excess pressure will escape from the
hose – the fork leg does not lose any air.
The fork pump airpump switches off automatically after
80 seconds.
– Mount the protection cap.
Info
Only mount the protection cap by hand.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 45)
